SDO HMI 2014-11-26 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.23 | 15.83 | 6.22 | 18.61 | -23.73 | 93.40 | -61.85 | 117.11 | 0.9085 | -89.8 | -44.9 | |
|
previous
or next observation for the same group /

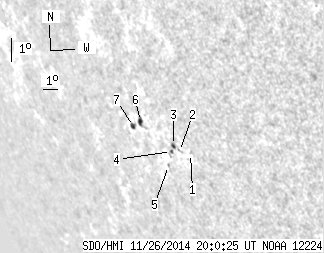

back to the solar disc SDO HMI 2014-11-26 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 1.33 | -24.23 | 95.35 | -59.90 | 118.13 | 0.8965 | 529.0 | 457.2 | |
| 0.00 | 1.03 | 0.00 | 1.16 | -24.18 | 94.66 | -60.59 | 117.90 | 0.9011 | 359.0 | 314.8 | |
| 0.86 | 4.53 | 0.98 | 5.20 | -23.99 | 94.42 | -60.84 | 117.63 | 0.9024 | -48.3 | 21.8 | |
| 0.60 | -3.00 | 0.69 | -3.00 | -24.19 | 94.12 | -61.14 | 117.78 | 0.9047 | 186.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.11 | -24.66 | 93.51 | -61.74 | 118.14 | 0.9095 | 176.0 | 129.3 | |
| 2.14 | 4.88 | 2.56 | 5.83 | -23.24 | 92.76 | -62.49 | 116.44 | 0.9119 | -488.2 | -396.2 | |
| 1.63 | 3.25 | 1.99 | 3.98 | -23.42 | 92.11 | -63.14 | 116.48 | 0.9163 | -363.8 | -227.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
