SDO HMI 2014-11-26 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.99 | 22.76 | 10.12 | 25.49 | -23.77 | 93.82 | -60.33 | 117.53 | 0.8984 | -105.2 | -80.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

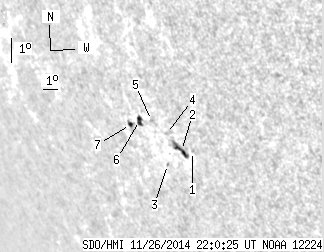

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 1.19 | -24.17 | 95.50 | -58.64 | 118.40 | 0.8876 | 540.0 | 402.6 | |
| 4.45 | 10.01 | 4.85 | 10.92 | -24.16 | 94.82 | -59.33 | 118.20 | 0.8924 | 160.8 | 51.4 | |
| 0.00 | 0.94 | 0.00 | 1.07 | -24.64 | 93.51 | -60.63 | 118.39 | 0.9022 | 328.0 | 182.2 | |
| 0.00 | 1.20 | 0.00 | 1.32 | -23.61 | 94.26 | -59.88 | 117.47 | 0.8951 | -395.0 | -311.6 | |
| 0.00 | 1.37 | 0.00 | 1.53 | -23.21 | 93.59 | -60.55 | 116.86 | 0.8990 | -380.0 | -318.0 | |
| 2.91 | 4.71 | 3.35 | 5.42 | -23.22 | 92.78 | -61.37 | 116.68 | 0.9045 | -512.2 | -400.6 | |
| 1.63 | 3.42 | 1.92 | 4.04 | -23.37 | 92.04 | -62.11 | 116.66 | 0.9096 | -334.4 | -229.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
