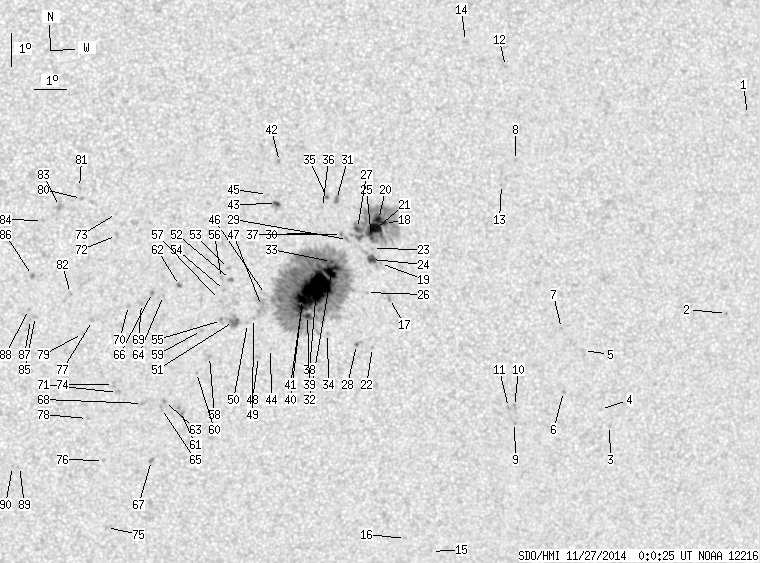

SDO HMI 2014-11-27 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.12 | 743.56 | 56.20 | 390.08 | -13.49 | 165.02 | 11.97 | 217.95 | 0.3301 | 432.0 | 373.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.52 | -8.56 | 178.51 | 25.47 | 248.09 | 0.4603 | -691.0 | -495.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -14.60 | 178.39 | 25.35 | 236.54 | 0.4986 | 680.0 | 617.7 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -18.04 | 174.89 | 21.85 | 226.86 | 0.4869 | 640.0 | 536.6 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.53 | 174.52 | 21.48 | 227.21 | 0.4778 | 473.0 | 408.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -15.69 | 173.75 | 20.71 | 229.31 | 0.4509 | 689.0 | 455.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -16.96 | 173.23 | 20.19 | 226.44 | 0.4574 | 803.0 | 691.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -15.00 | 172.96 | 19.92 | 229.47 | 0.4348 | 818.0 | 686.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -9.87 | 171.10 | 18.06 | 237.50 | 0.3637 | 824.0 | 680.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.91 | 171.72 | 18.68 | 222.73 | 0.4510 | 767.0 | 686.8 | |
| 0.00 | 2.22 | 0.00 | 1.23 | -17.41 | 171.67 | 18.63 | 223.46 | 0.4449 | 912.0 | 734.1 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -17.44 | 171.47 | 18.43 | 223.12 | 0.4432 | 838.0 | 660.1 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -7.04 | 170.65 | 17.61 | 244.06 | 0.3354 | 702.0 | 637.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -10.59 | 170.70 | 17.65 | 235.23 | 0.3645 | 780.0 | 584.4 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -6.28 | 169.38 | 16.34 | 244.55 | 0.3111 | 640.0 | 633.1 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -21.99 | 169.44 | 16.40 | 213.44 | 0.4771 | 612.0 | 496.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -21.57 | 168.53 | 15.49 | 212.51 | 0.4641 | 758.0 | 724.7 | |
| 0.00 | 2.48 | 0.00 | 1.32 | -14.03 | 167.38 | 14.34 | 222.12 | 0.3598 | -902.0 | -660.5 | |
| 1.45 | 121.52 | 0.76 | 63.68 | -11.74 | 167.09 | 14.05 | 226.32 | 0.3301 | 949.3 | 507.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -12.96 | 167.03 | 13.99 | 223.57 | 0.3433 | 608.0 | 483.6 | |
| 3.85 | -18.00 | 2.02 | -18.00 | -11.62 | 166.90 | 13.86 | 226.21 | 0.3264 | 1154.4 | 999999 | |
| 10.70 | -18.00 | 5.61 | -18.00 | -11.92 | 166.79 | 13.75 | 225.30 | 0.3286 | 1224.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.54 | 166.94 | 13.90 | 218.49 | 0.3735 | -800.0 | -695.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.50 | 166.76 | 13.72 | 223.98 | 0.3348 | 662.0 | 543.2 | |
| 4.11 | 9.93 | 2.16 | 5.22 | -12.83 | 166.74 | 13.70 | 223.24 | 0.3386 | 909.7 | 605.4 | |
| 2.57 | -18.00 | 1.35 | -18.00 | -12.16 | 166.71 | 13.67 | 224.60 | 0.3304 | 959.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -13.84 | 166.64 | 13.60 | 221.01 | 0.3496 | 227.0 | 253.3 | |
| 2.22 | -18.00 | 1.16 | -18.00 | -11.88 | 166.26 | 13.22 | 224.27 | 0.3220 | 1224.6 | 999999 | |
| 0.34 | 2.91 | 0.18 | 1.55 | -15.44 | 166.43 | 13.39 | 217.63 | 0.3671 | -942.8 | -681.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -12.22 | 165.96 | 12.92 | 222.90 | 0.3225 | 1097.0 | 822.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -12.06 | 165.77 | 12.73 | 222.81 | 0.3185 | 1051.0 | 817.9 | |
| 0.00 | 3.59 | 0.00 | 1.87 | -11.00 | 165.57 | 12.53 | 224.78 | 0.3036 | 974.0 | 862.2 | |
| 11.38 | 467.15 | 5.97 | 245.03 | -13.19 | 165.52 | 12.47 | 219.87 | 0.3295 | 1246.3 | 522.7 | |
| 1.28 | -32.00 | 0.67 | -32.00 | -12.88 | 165.50 | 12.46 | 220.46 | 0.3255 | 1090.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -15.09 | 165.49 | 12.45 | 216.27 | 0.3535 | 690.0 | 451.6 | |
| 0.34 | 1.54 | 0.18 | 0.80 | -10.91 | 165.26 | 12.21 | 224.28 | 0.2989 | -476.5 | -296.2 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -11.24 | 165.15 | 12.10 | 223.25 | 0.3016 | 832.0 | 593.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -12.03 | 165.12 | 12.08 | 221.40 | 0.3108 | 880.0 | 717.2 | |
| 51.77 | -32.00 | 27.16 | -32.00 | -13.68 | 165.07 | 12.03 | 217.92 | 0.3310 | 1538.3 | 999999 | |
| 2.31 | -32.00 | 1.22 | -32.00 | -14.53 | 164.84 | 11.80 | 215.79 | 0.3398 | 969.5 | 999999 | |
| 9.76 | -32.00 | 5.12 | -32.00 | -14.04 | 164.66 | 11.61 | 216.27 | 0.3316 | 1444.0 | 999999 | |
| 3.08 | -32.00 | 1.62 | -32.00 | -14.29 | 164.64 | 11.60 | 215.78 | 0.3347 | 1242.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.84 | 163.78 | 10.73 | 223.27 | 0.2689 | -741.0 | -687.0 | |
| 1.45 | 5.39 | 0.75 | 2.78 | -11.11 | 163.73 | 10.69 | 220.03 | 0.2841 | -805.9 | -547.3 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -15.55 | 163.74 | 10.69 | 211.52 | 0.3434 | 726.0 | 624.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -10.84 | 163.44 | 10.40 | 219.91 | 0.2776 | -606.0 | -510.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.88 | 163.50 | 10.46 | 213.77 | 0.3185 | 177.0 | 251.2 | |
| 0.00 | 19.00 | 0.00 | 9.93 | -14.22 | 163.39 | 10.35 | 212.89 | 0.3221 | 351.0 | 358.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.79 | 163.37 | 10.33 | 210.28 | 0.3438 | -718.0 | -590.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.62 | 163.16 | 10.12 | 211.64 | 0.3256 | 830.0 | 728.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -14.77 | 162.98 | 9.94 | 210.93 | 0.3262 | 716.0 | 485.3 | |
| 0.00 | 11.04 | 0.00 | 5.77 | -14.71 | 162.54 | 9.50 | 209.92 | 0.3216 | 221.0 | 248.7 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -13.42 | 162.40 | 9.36 | 211.73 | 0.3021 | -759.0 | -541.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.08 | 162.32 | 9.28 | 212.14 | 0.2967 | -846.0 | -685.8 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -13.75 | 162.23 | 9.18 | 210.67 | 0.3053 | -655.0 | -538.4 | |
| 0.00 | 1.97 | 0.00 | 1.03 | -14.67 | 162.17 | 9.13 | 208.99 | 0.3181 | -788.0 | -655.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -13.38 | 162.12 | 9.08 | 211.02 | 0.2992 | -728.0 | -518.3 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -14.03 | 162.08 | 9.04 | 209.81 | 0.3081 | -259.0 | -333.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.78 | 161.84 | 8.80 | 206.49 | 0.3317 | -1015.0 | -760.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.98 | 161.56 | 8.52 | 206.91 | 0.3178 | -827.0 | -667.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.28 | 161.46 | 8.42 | 204.83 | 0.3362 | -699.0 | -612.6 | |
| 0.00 | 4.45 | 0.00 | 2.35 | -17.49 | 161.01 | 7.97 | 202.21 | 0.3514 | -709.0 | -679.7 | |
| 0.51 | 1.63 | 0.27 | 0.84 | -13.59 | 160.84 | 7.79 | 206.99 | 0.2918 | -877.2 | -733.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -17.18 | 160.50 | 7.46 | 201.26 | 0.3435 | -1021.0 | -816.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -13.90 | 160.35 | 7.31 | 205.08 | 0.2928 | -743.0 | -564.8 | |
| 0.00 | 2.22 | 0.00 | 1.17 | -17.39 | 160.41 | 7.37 | 200.80 | 0.3464 | -581.0 | -614.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.80 | 160.01 | 6.97 | 204.19 | 0.2890 | -1020.0 | -876.0 | |
| 0.00 | 2.14 | 0.00 | 1.14 | -19.03 | 160.17 | 7.13 | 198.56 | 0.3700 | -823.0 | -695.0 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -17.23 | 159.82 | 6.77 | 199.41 | 0.3405 | -925.0 | -695.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -14.14 | 159.69 | 6.64 | 202.71 | 0.2920 | -764.0 | -530.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -14.20 | 159.29 | 6.25 | 201.40 | 0.2904 | -903.0 | -707.0 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -16.89 | 159.03 | 5.98 | 197.62 | 0.3310 | -780.0 | -626.6 | |
| 0.00 | 2.22 | 0.00 | 1.14 | -12.06 | 158.87 | 5.83 | 203.09 | 0.2544 | -843.0 | -673.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.39 | 158.86 | 5.82 | 204.14 | 0.2440 | -736.0 | -584.2 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -16.64 | 158.89 | 5.85 | 197.50 | 0.3264 | -905.0 | -728.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -21.15 | 158.83 | 5.78 | 193.76 | 0.3968 | -869.0 | -614.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.02 | 158.66 | 5.61 | 194.84 | 0.3628 | -774.0 | -609.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -14.65 | 158.19 | 5.15 | 197.42 | 0.2915 | -937.0 | -758.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -17.70 | 158.12 | 5.07 | 194.43 | 0.3396 | -654.0 | -529.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -15.05 | 157.90 | 4.85 | 196.08 | 0.2964 | -756.0 | -616.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -10.93 | 157.79 | 4.75 | 200.81 | 0.2298 | -934.0 | -737.2 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -10.60 | 157.73 | 4.68 | 201.08 | 0.2241 | -789.0 | -695.8 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -13.82 | 157.50 | 4.46 | 196.03 | 0.2748 | -871.0 | -637.3 | |
| 0.00 | 3.68 | 0.00 | 1.87 | -11.17 | 157.13 | 4.09 | 197.79 | 0.2300 | -1138.0 | -896.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.59 | 156.62 | 3.58 | 195.19 | 0.2344 | -855.0 | -677.7 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -14.53 | 156.45 | 3.40 | 191.81 | 0.2820 | -707.0 | -590.4 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -13.27 | 156.34 | 3.30 | 192.44 | 0.2609 | -1063.0 | -923.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.62 | 156.29 | 3.25 | 191.24 | 0.2830 | -907.0 | -684.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -14.31 | 156.23 | 3.19 | 191.24 | 0.2777 | -855.0 | -770.3 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -19.20 | 156.02 | 2.98 | 187.94 | 0.3572 | -416.0 | -511.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -19.20 | 155.80 | 2.76 | 187.36 | 0.3567 | -880.0 | -609.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
