SDO HMI 2014-11-27 02:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.83 | 151.50 | 58.29 | 240.67 | -19.92 | 81.90 | -70.04 | 111.54 | 0.9505 | 124.4 | -75.5 | |
|
previous
or next observation for the same group /

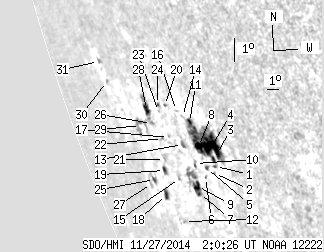

back to the solar disc SDO HMI 2014-11-27 02:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 1.82 | -20.40 | 84.44 | -67.51 | 112.42 | 0.9383 | 440.0 | 396.5 | |
| 0.00 | 0.77 | 0.00 | 1.11 | -20.63 | 84.14 | -67.80 | 112.61 | 0.9402 | 232.0 | 222.8 | |
| 1.46 | 72.66 | 2.05 | 103.11 | -20.17 | 84.47 | -67.47 | 112.19 | 0.9379 | 219.5 | 154.8 | |
| 15.49 | -3.00 | 21.67 | -3.00 | -19.79 | 84.56 | -67.38 | 111.80 | 0.9370 | 694.3 | 999999 | |
| 0.68 | 1.71 | 1.00 | 2.51 | -20.48 | 83.59 | -68.35 | 112.37 | 0.9430 | -143.9 | -150.0 | |
| 0.00 | 0.77 | 0.00 | 1.15 | -20.78 | 83.22 | -68.73 | 112.62 | 0.9453 | 75.0 | 72.3 | |
| 1.03 | 19.17 | 1.63 | 30.49 | -21.31 | 82.12 | -69.83 | 113.00 | 0.9514 | 257.3 | -218.1 | |
| 3.94 | -3.00 | 5.77 | -3.00 | -19.78 | 83.55 | -68.39 | 111.63 | 0.9426 | 73.4 | 999999 | |
| 4.19 | -7.00 | 6.64 | -7.00 | -21.09 | 82.17 | -69.77 | 112.78 | 0.9509 | 394.0 | 999999 | |
| 0.00 | 2.14 | 0.00 | 3.27 | -20.34 | 82.76 | -69.19 | 112.09 | 0.9473 | 179.0 | -29.5 | |
| 1.97 | -3.00 | 2.87 | -3.00 | -19.03 | 83.46 | -68.48 | 110.82 | 0.9424 | 244.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 2.52 | -22.28 | 79.47 | -72.48 | 113.62 | 0.9643 | -223.0 | -283.0 | |
| 0.00 | 2.74 | 0.00 | 4.28 | -19.75 | 82.15 | -69.79 | 111.39 | 0.9499 | -386.0 | -271.9 | |
| 0.00 | 0.86 | 0.00 | 1.28 | -18.85 | 83.01 | -68.93 | 110.57 | 0.9447 | -210.0 | -239.8 | |
| 0.00 | 1.46 | 0.00 | 2.47 | -20.87 | 80.68 | -71.26 | 112.33 | 0.9579 | -500.0 | -419.9 | |
| 0.00 | 0.94 | 0.00 | 1.43 | -18.67 | 82.64 | -69.30 | 110.32 | 0.9465 | -301.0 | -294.0 | |
| 0.00 | 0.60 | 0.00 | 0.99 | -19.56 | 81.02 | -70.92 | 111.02 | 0.9554 | 86.0 | -12.3 | |
| 2.48 | 4.45 | 4.77 | 8.56 | -21.43 | 78.60 | -73.34 | 112.64 | 0.9674 | -403.9 | -367.7 | |
| 1.54 | 3.42 | 2.80 | 6.22 | -20.65 | 79.39 | -72.55 | 111.93 | 0.9636 | -374.1 | -268.8 | |
| 0.00 | 0.86 | 0.00 | 1.36 | -18.54 | 81.66 | -70.28 | 110.05 | 0.9515 | -488.0 | -495.3 | |
| 0.00 | 1.54 | 0.00 | 2.72 | -20.29 | 79.82 | -72.12 | 111.61 | 0.9615 | -380.0 | -317.6 | |
| 0.00 | 1.20 | 0.00 | 2.05 | -19.61 | 80.38 | -71.56 | 110.99 | 0.9585 | 87.0 | 22.4 | |
| 0.00 | 0.26 | 0.00 | 0.42 | -18.74 | 80.89 | -71.06 | 110.16 | 0.9555 | -441.0 | -446.0 | |
| 0.43 | 1.03 | 0.70 | 1.68 | -18.52 | 81.01 | -70.93 | 109.94 | 0.9547 | -391.6 | -411.4 | |
| 1.03 | 3.34 | 2.06 | 6.70 | -20.97 | 77.85 | -74.10 | 112.07 | 0.9701 | -151.9 | -133.1 | |
| 0.00 | 1.80 | 0.00 | 3.16 | -19.15 | 79.75 | -72.19 | 110.43 | 0.9610 | -565.0 | -522.1 | |
| 0.00 | 2.40 | 0.00 | 5.01 | -21.11 | 77.29 | -74.66 | 112.15 | 0.9724 | 251.0 | 133.0 | |
| 3.59 | 11.55 | 6.33 | 20.33 | -18.71 | 79.71 | -72.23 | 109.97 | 0.9609 | -530.1 | -389.1 | |
| 0.00 | 10.27 | 0.00 | 19.57 | -19.24 | 78.46 | -73.49 | 110.37 | 0.9667 | -203.0 | -188.6 | |
| 0.00 | 1.11 | 0.00 | 2.45 | -17.92 | 76.01 | -75.93 | 108.75 | 0.9757 | -317.0 | -275.7 | |
| 0.00 | 1.80 | 0.00 | 4.01 | -17.31 | 75.77 | -76.17 | 108.10 | 0.9763 | -317.0 | -284.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
