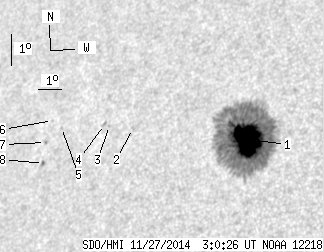

SDO HMI 2014-11-27 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.84 | 362.85 | 38.39 | 245.95 | 16.01 | 110.42 | -40.98 | 67.72 | 0.6833 | -989.0 | -273.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.41 | 354.79 | 38.06 | 239.82 | 16.01 | 110.60 | -40.80 | 67.66 | 0.6813 | -1280.3 | -294.7 | |
| 0.00 | 1.37 | 0.00 | 1.00 | 16.28 | 105.64 | -45.75 | 69.01 | 0.7389 | 670.0 | 534.6 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 16.35 | 104.59 | -46.81 | 69.22 | 0.7506 | 545.0 | 454.8 | |
| 0.00 | 1.71 | 0.00 | 1.28 | 16.38 | 104.35 | -47.04 | 69.25 | 0.7532 | 514.0 | 434.2 | |
| 0.00 | 0.86 | 0.00 | 0.67 | 16.26 | 102.40 | -49.00 | 69.94 | 0.7736 | 424.0 | 378.2 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 16.46 | 101.90 | -49.49 | 69.81 | 0.7792 | 556.0 | 504.3 | |
| 0.00 | 1.20 | 0.00 | 0.94 | 15.79 | 101.80 | -49.60 | 70.69 | 0.7788 | 661.0 | 593.3 | |
| 0.43 | 1.63 | 0.33 | 1.27 | 15.15 | 101.91 | -49.48 | 71.48 | 0.7762 | 353.6 | 442.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
