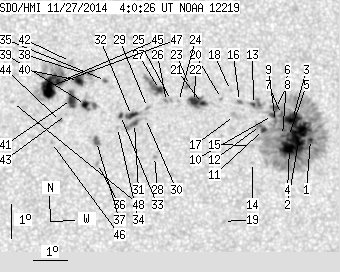

SDO HMI 2014-11-27 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147.30 | 557.50 | 74.14 | 281.08 | 4.25 | 160.78 | 9.94 | 288.65 | 0.1821 | -137.9 | -195.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 347.70 | 0.70 | 176.21 | 3.67 | 163.34 | 12.49 | 280.60 | 0.2206 | -906.2 | -408.3 | |
| 30.39 | -1.00 | 15.41 | -1.00 | 3.79 | 163.01 | 12.16 | 281.42 | 0.2154 | -1359.9 | 999999 | |
| 14.55 | -1.00 | 7.38 | -1.00 | 4.27 | 162.80 | 11.96 | 283.80 | 0.2137 | -1263.1 | 999999 | |
| 19.09 | -1.00 | 9.67 | -1.00 | 3.41 | 162.70 | 11.85 | 279.89 | 0.2091 | -1397.7 | 999999 | |
| 3.17 | -1.00 | 1.60 | -1.00 | 3.76 | 162.67 | 11.83 | 281.59 | 0.2097 | -1309.5 | 999999 | |
| 0.77 | -1.00 | 0.39 | -1.00 | 3.80 | 162.49 | 11.65 | 281.91 | 0.2068 | -1073.7 | 999999 | |
| 1.37 | -1.00 | 0.69 | -1.00 | 4.42 | 162.47 | 11.63 | 284.86 | 0.2088 | -976.3 | 999999 | |
| 2.57 | -1.00 | 1.30 | -1.00 | 4.60 | 162.29 | 11.45 | 285.92 | 0.2067 | -999.0 | 999999 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 4.21 | 162.29 | 11.44 | 284.10 | 0.2049 | -1125.7 | 999999 | |
| 2.14 | -1.00 | 1.08 | -1.00 | 4.39 | 162.20 | 11.35 | 285.06 | 0.2042 | -1138.5 | 999999 | |
| 2.31 | -1.00 | 1.17 | -1.00 | 3.98 | 161.92 | 11.07 | 283.38 | 0.1979 | -1057.4 | 999999 | |
| 0.26 | -1.00 | 0.13 | -1.00 | 4.10 | 161.83 | 10.98 | 284.07 | 0.1969 | -1032.0 | 999999 | |
| 1.11 | 10.27 | 0.56 | 5.19 | 4.72 | 161.63 | 10.78 | 287.42 | 0.1963 | -1200.0 | -812.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 3.00 | 161.58 | 10.73 | 278.73 | 0.1890 | -858.0 | -653.6 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 3.51 | 161.55 | 10.71 | 281.38 | 0.1900 | -719.0 | -567.8 | |
| 0.51 | 2.48 | 0.26 | 1.25 | 4.81 | 161.21 | 10.36 | 288.52 | 0.1899 | -605.8 | -403.3 | |
| 0.00 | 3.85 | 0.00 | 1.94 | 4.40 | 161.05 | 10.20 | 286.65 | 0.1852 | 47.0 | 56.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 5.14 | 160.94 | 10.10 | 290.63 | 0.1874 | -623.0 | -437.8 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 1.26 | 160.69 | 9.84 | 269.37 | 0.1717 | -722.0 | -597.6 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 4.90 | 160.67 | 9.82 | 289.93 | 0.1816 | 688.0 | 507.5 | |
| 2.31 | 15.75 | 1.16 | 7.91 | 4.76 | 160.09 | 9.25 | 290.24 | 0.1715 | 809.1 | 716.7 | |
| 5.31 | -21.00 | 2.67 | -21.00 | 4.82 | 159.85 | 9.01 | 291.06 | 0.1680 | 1241.9 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.11 | 5.29 | 159.71 | 8.86 | 294.01 | 0.1688 | -792.0 | -672.3 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.82 | 159.37 | 8.53 | 292.13 | 0.1602 | 647.0 | 451.3 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 4.85 | 159.16 | 8.32 | 292.81 | 0.1571 | -920.0 | -657.0 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 4.82 | 159.01 | 8.17 | 293.00 | 0.1545 | -1100.0 | -891.2 | |
| 3.25 | 16.78 | 1.63 | 8.41 | 5.18 | 158.81 | 7.96 | 295.67 | 0.1538 | -1183.7 | -829.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 3.19 | 158.64 | 7.79 | 283.19 | 0.1396 | 897.0 | 814.1 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 4.65 | 158.44 | 7.60 | 293.40 | 0.1442 | 772.0 | 521.4 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 4.32 | 158.38 | 7.53 | 291.44 | 0.1411 | 575.0 | 400.7 | |
| 2.05 | 7.10 | 1.03 | 3.55 | 4.17 | 158.05 | 7.20 | 291.31 | 0.1348 | 874.5 | 669.6 | |
| 4.28 | 10.87 | 2.14 | 5.43 | 4.41 | 157.96 | 7.11 | 293.19 | 0.1350 | 1083.2 | 618.2 | |
| 1.28 | -32.00 | 0.64 | -32.00 | 4.41 | 157.63 | 6.79 | 294.18 | 0.1297 | 918.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 4.06 | 157.54 | 6.69 | 291.89 | 0.1259 | 901.0 | 629.2 | |
| 0.51 | 2.31 | 0.26 | 1.15 | 5.45 | 157.20 | 6.35 | 302.81 | 0.1316 | 974.8 | 736.3 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 2.99 | 156.93 | 6.09 | 284.88 | 0.1101 | 1105.0 | 793.6 | |
| 2.14 | 4.71 | 1.07 | 2.35 | 3.65 | 156.91 | 6.06 | 290.54 | 0.1131 | 1198.0 | 951.9 | |
| 0.00 | 7.45 | 0.00 | 3.72 | 5.60 | 156.75 | 5.90 | 305.71 | 0.1266 | 254.0 | 436.5 | |
| 3.68 | 12.41 | 1.84 | 6.19 | 4.74 | 156.59 | 5.74 | 300.43 | 0.1162 | 1116.1 | 751.7 | |
| 5.82 | 10.53 | 2.90 | 5.25 | 5.45 | 156.39 | 5.54 | 306.44 | 0.1201 | 1125.8 | 697.6 | |
| 8.39 | 11.64 | 4.18 | 5.80 | 4.89 | 156.18 | 5.33 | 303.48 | 0.1114 | 1283.0 | 918.8 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 6.02 | 156.16 | 5.31 | 311.28 | 0.1230 | 723.0 | 669.2 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.45 | 156.02 | 5.18 | 300.72 | 0.1051 | 1067.0 | 855.7 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 4.24 | 155.84 | 4.99 | 299.86 | 0.1006 | 930.0 | 755.6 | |
| 5.56 | 64.28 | 2.77 | 32.03 | 5.43 | 155.82 | 4.98 | 309.23 | 0.1120 | 1180.4 | 411.7 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 3.62 | 155.57 | 4.72 | 295.39 | 0.0914 | 877.0 | 772.4 | |
| 22.85 | -45.00 | 11.38 | -45.00 | 5.28 | 155.52 | 4.68 | 309.92 | 0.1063 | 1340.1 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.72 | 4.81 | 154.42 | 3.57 | 313.88 | 0.0865 | 928.0 | 696.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
