SDO HMI 2014-11-27 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.55 | 200.64 | 69.53 | 304.92 | -19.89 | 81.86 | -68.99 | 111.67 | 0.9449 | 97.7 | -45.6 | |
|
previous
or next observation for the same group /

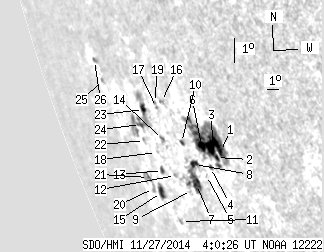

back to the solar disc SDO HMI 2014-11-27 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 93.47 | 1.57 | 125.72 | -19.92 | 85.19 | -65.66 | 112.23 | 0.9270 | 792.3 | 167.4 | |
| 1.88 | -1.00 | 2.51 | -1.00 | -20.12 | 84.71 | -66.14 | 112.36 | 0.9301 | 387.4 | 999999 | |
| 14.12 | -1.00 | 18.84 | -1.00 | -19.74 | 84.71 | -66.13 | 111.95 | 0.9296 | 681.7 | 999999 | |
| 0.77 | 1.71 | 1.06 | 2.36 | -20.46 | 83.94 | -66.91 | 112.58 | 0.9349 | 51.3 | -5.7 | |
| 0.00 | 0.94 | 0.00 | 1.33 | -20.73 | 83.37 | -67.48 | 112.76 | 0.9385 | 209.0 | 131.9 | |
| 4.02 | -1.00 | 5.55 | -1.00 | -19.76 | 83.82 | -67.03 | 111.82 | 0.9349 | 176.6 | 999999 | |
| 6.68 | 30.90 | 9.97 | 46.25 | -21.04 | 82.21 | -68.64 | 112.90 | 0.9451 | 353.4 | -206.3 | |
| 3.77 | -7.00 | 5.50 | -7.00 | -20.39 | 82.66 | -68.19 | 112.30 | 0.9420 | 231.2 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.53 | -21.25 | 81.55 | -69.30 | 113.01 | 0.9487 | -206.0 | -254.0 | |
| 1.20 | 2.31 | 1.77 | 3.42 | -19.71 | 82.18 | -68.67 | 111.50 | 0.9440 | -232.3 | -210.0 | |
| 0.00 | 1.46 | 0.00 | 2.54 | -22.30 | 79.39 | -71.46 | 113.77 | 0.9598 | -211.0 | -286.9 | |
| 0.00 | 1.80 | 0.00 | 2.91 | -20.79 | 80.54 | -70.31 | 112.39 | 0.9533 | -490.0 | -460.2 | |
| 1.28 | 2.74 | 2.20 | 4.69 | -20.66 | 79.41 | -71.44 | 112.09 | 0.9586 | -337.9 | -250.6 | |
| 0.00 | 2.23 | 0.00 | 3.57 | -19.65 | 80.50 | -70.35 | 111.19 | 0.9526 | 214.0 | 92.9 | |
| 4.62 | 7.79 | 8.39 | 14.11 | -21.39 | 78.44 | -72.41 | 112.71 | 0.9634 | -386.7 | -309.4 | |
| 0.00 | 2.14 | 0.00 | 3.23 | -18.43 | 81.58 | -69.27 | 110.07 | 0.9461 | -530.0 | -488.3 | |
| 0.00 | 1.03 | 0.00 | 1.61 | -18.63 | 80.94 | -69.91 | 110.19 | 0.9496 | -389.0 | -393.5 | |
| 0.00 | 0.43 | 0.00 | 0.73 | -20.09 | 79.45 | -71.39 | 111.50 | 0.9580 | -311.0 | -376.8 | |
| 0.00 | 0.94 | 0.00 | 1.47 | -18.48 | 80.90 | -69.95 | 110.03 | 0.9497 | -415.0 | -390.8 | |
| 0.00 | 2.91 | 0.00 | 5.50 | -21.28 | 77.71 | -73.14 | 112.50 | 0.9664 | 410.0 | 301.1 | |
| 1.28 | 7.10 | 2.43 | 13.63 | -20.93 | 77.60 | -73.24 | 112.13 | 0.9666 | -223.3 | 13.9 | |
| 0.00 | 1.71 | 0.00 | 3.04 | -19.73 | 78.63 | -72.22 | 111.02 | 0.9615 | -386.0 | -372.2 | |
| 3.68 | 35.01 | 6.15 | 60.69 | -18.73 | 79.60 | -71.24 | 110.11 | 0.9563 | -484.5 | -226.4 | |
| 2.05 | -23.00 | 3.59 | -23.00 | -19.22 | 78.78 | -72.07 | 110.52 | 0.9605 | -564.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 3.69 | -17.91 | 76.06 | -74.78 | 108.85 | 0.9713 | -338.0 | -294.3 | |
| 0.00 | 1.88 | 0.00 | 3.90 | -17.29 | 75.84 | -75.01 | 108.19 | 0.9719 | -430.0 | -315.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
