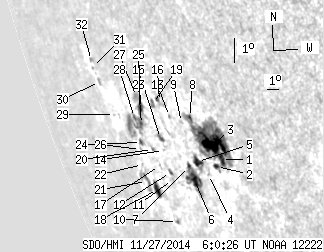

SDO HMI 2014-11-27 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.31 | 242.52 | 96.11 | 348.25 | -19.83 | 81.95 | -67.81 | 111.79 | 0.9385 | 91.1 | -29.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.45 | 115.39 | 5.63 | 147.63 | -20.19 | 84.94 | -64.82 | 112.66 | 0.9221 | 585.4 | 158.9 | |
| 1.80 | -1.00 | 2.33 | -1.00 | -20.43 | 84.37 | -65.39 | 112.81 | 0.9259 | 244.8 | 999999 | |
| 24.74 | -1.00 | 31.57 | -1.00 | -19.72 | 84.63 | -65.13 | 112.10 | 0.9235 | 591.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.61 | -20.70 | 83.51 | -66.25 | 112.94 | 0.9313 | 197.0 | 91.8 | |
| 5.22 | 39.12 | 7.15 | 55.14 | -20.30 | 82.98 | -66.78 | 112.43 | 0.9340 | 268.2 | -139.3 | |
| 12.16 | -5.00 | 17.30 | -5.00 | -20.89 | 82.20 | -67.56 | 112.92 | 0.9390 | 61.2 | 999999 | |
| 1.37 | -5.00 | 1.95 | -5.00 | -20.48 | 82.16 | -67.60 | 112.47 | 0.9388 | -359.2 | 999999 | |
| 1.20 | -1.00 | 1.59 | -1.00 | -18.90 | 83.51 | -66.25 | 111.03 | 0.9294 | 164.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.29 | -19.07 | 82.73 | -67.03 | 111.08 | 0.9342 | -336.0 | -309.7 | |
| 0.51 | 1.71 | 0.85 | 2.85 | -22.31 | 79.17 | -70.59 | 113.91 | 0.9558 | -372.7 | -326.2 | |
| 0.00 | 1.80 | 0.00 | 2.80 | -20.94 | 80.22 | -69.54 | 112.65 | 0.9496 | -440.0 | -426.1 | |
| 0.86 | 2.23 | 1.33 | 3.44 | -20.71 | 80.27 | -69.49 | 112.42 | 0.9491 | -451.5 | -418.3 | |
| 0.00 | 0.94 | 0.00 | 1.34 | -18.90 | 81.88 | -67.88 | 110.77 | 0.9389 | -329.0 | -367.3 | |
| 0.00 | 0.26 | 0.00 | 0.39 | -20.01 | 80.33 | -69.42 | 111.70 | 0.9482 | -378.0 | -343.7 | |
| 1.71 | 3.51 | 2.61 | 5.35 | -19.63 | 80.43 | -69.32 | 111.31 | 0.9473 | 144.1 | -7.8 | |
| 0.00 | 4.37 | 0.00 | 6.32 | -18.44 | 81.42 | -68.33 | 110.22 | 0.9410 | -626.0 | -448.5 | |
| 0.00 | 0.77 | 0.00 | 1.24 | -20.51 | 79.45 | -70.30 | 112.09 | 0.9530 | 47.0 | -68.3 | |
| 6.33 | 8.56 | 10.87 | 14.68 | -21.30 | 78.37 | -71.38 | 112.75 | 0.9587 | -302.8 | -228.8 | |
| 0.00 | 3.60 | 0.00 | 5.37 | -18.52 | 80.75 | -69.01 | 110.20 | 0.9448 | -360.0 | -329.6 | |
| 0.00 | 1.63 | 0.00 | 2.62 | -20.00 | 79.32 | -70.44 | 111.54 | 0.9533 | -477.0 | -420.9 | |
| 0.00 | 9.84 | 0.00 | 17.66 | -21.07 | 77.52 | -72.24 | 112.39 | 0.9624 | 214.0 | 122.8 | |
| 0.00 | 0.26 | 0.00 | 0.45 | -20.52 | 77.76 | -72.00 | 111.86 | 0.9610 | -222.0 | -200.3 | |
| 1.71 | 32.61 | 2.79 | 54.31 | -19.22 | 79.07 | -70.69 | 110.69 | 0.9539 | -627.2 | -161.4 | |
| 1.37 | 2.65 | 2.31 | 4.48 | -19.80 | 78.46 | -71.30 | 111.22 | 0.9573 | -418.3 | -362.0 | |
| 3.85 | -23.00 | 6.12 | -23.00 | -18.71 | 79.48 | -70.27 | 110.21 | 0.9515 | -522.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.77 | -20.03 | 78.11 | -71.65 | 111.41 | 0.9591 | -202.0 | -172.5 | |
| 0.00 | 5.65 | 0.00 | 8.98 | -18.33 | 79.46 | -70.29 | 109.82 | 0.9513 | -246.0 | -197.4 | |
| 1.03 | -23.00 | 1.71 | -23.00 | -19.01 | 78.60 | -71.15 | 110.41 | 0.9560 | -410.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.48 | -18.96 | 76.58 | -73.18 | 110.11 | 0.9652 | -170.0 | -240.3 | |
| 0.00 | 2.05 | 0.00 | 3.92 | -17.94 | 76.08 | -73.68 | 109.00 | 0.9668 | -294.0 | -232.8 | |
| 0.00 | 0.77 | 0.00 | 1.49 | -17.51 | 75.77 | -73.99 | 108.52 | 0.9679 | -250.0 | -235.9 | |
| 0.00 | 1.37 | 0.00 | 2.64 | -17.29 | 75.90 | -73.86 | 108.31 | 0.9672 | -442.0 | -321.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
