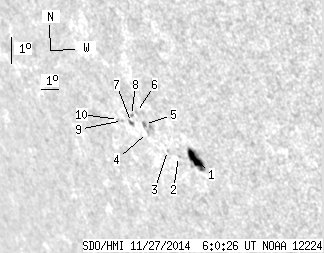

SDO HMI 2014-11-27 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.78 | 32.36 | 13.06 | 31.17 | -23.84 | 94.73 | -55.03 | 119.09 | 0.8596 | 190.2 | -176.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.84 | 20.46 | 12.11 | 19.31 | -24.24 | 95.70 | -54.06 | 119.83 | 0.8531 | 591.3 | 162.7 | |
| 0.00 | 0.51 | 0.00 | 0.49 | -24.16 | 94.79 | -54.96 | 119.45 | 0.8600 | 227.0 | 183.8 | |
| 0.00 | 0.77 | 0.00 | 0.75 | -23.98 | 94.28 | -55.47 | 119.08 | 0.8634 | -372.0 | -383.7 | |
| 0.00 | 1.80 | 0.00 | 1.78 | -23.41 | 93.50 | -56.26 | 118.21 | 0.8680 | -521.0 | -488.4 | |
| 0.00 | 2.31 | 0.00 | 2.28 | -23.15 | 93.49 | -56.26 | 117.92 | 0.8674 | -568.0 | -523.0 | |
| 0.00 | 0.94 | 0.00 | 0.93 | -22.76 | 93.27 | -56.48 | 117.43 | 0.8682 | -496.0 | -479.4 | |
| 0.94 | 2.57 | 0.95 | 2.59 | -23.10 | 92.76 | -57.00 | 117.65 | 0.8729 | -472.9 | -365.9 | |
| 0.00 | 1.20 | 0.00 | 1.20 | -22.87 | 92.91 | -56.85 | 117.44 | 0.8712 | -566.0 | -504.3 | |
| 0.00 | 1.03 | 0.00 | 1.05 | -23.04 | 92.26 | -57.50 | 117.45 | 0.8766 | -95.0 | -181.8 | |
| 0.00 | 0.77 | 0.00 | 0.79 | -23.02 | 92.03 | -57.72 | 117.36 | 0.8782 | -314.0 | -330.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
