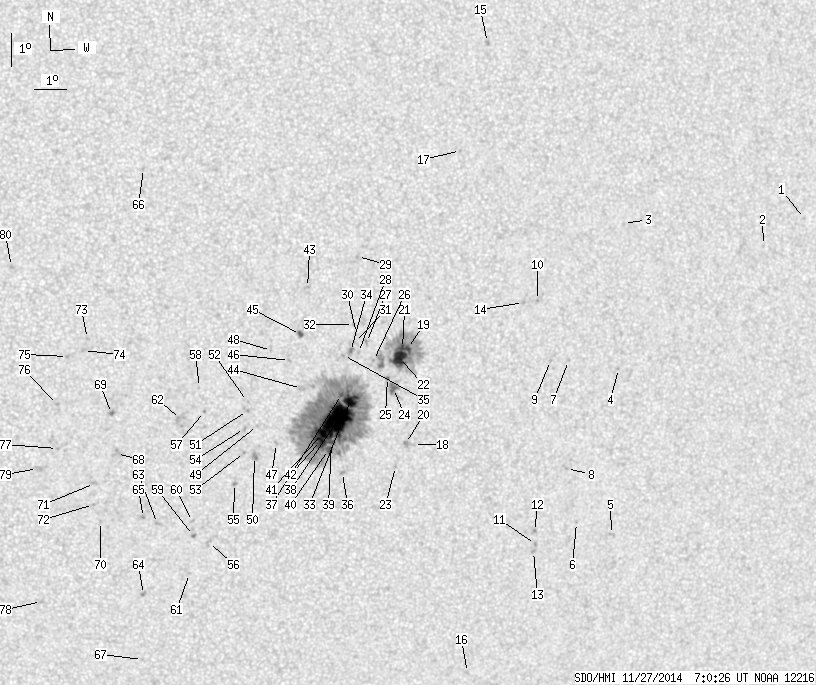

SDO HMI 2014-11-27 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.38 | 718.15 | 59.97 | 383.02 | -13.49 | 165.13 | 15.92 | 226.02 | 0.3730 | 570.3 | 381.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.55 | -7.84 | 179.99 | 30.78 | 252.82 | 0.5328 | 740.0 | 587.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -8.63 | 178.64 | 29.43 | 250.64 | 0.5169 | -518.0 | -458.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -7.92 | 173.88 | 24.67 | 248.94 | 0.4448 | 647.0 | 495.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -12.30 | 174.07 | 24.86 | 240.32 | 0.4747 | 823.0 | 634.0 | |
| 0.00 | 2.82 | 0.00 | 1.64 | -17.42 | 174.46 | 25.25 | 231.84 | 0.5197 | 715.0 | 567.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -17.03 | 173.21 | 24.00 | 231.12 | 0.5017 | 779.0 | 569.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.03 | 172.38 | 23.17 | 239.15 | 0.4502 | 777.0 | 620.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -15.34 | 172.66 | 23.45 | 233.34 | 0.4804 | 946.0 | 813.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -12.03 | 171.79 | 22.58 | 238.53 | 0.4422 | 767.0 | 625.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -10.20 | 171.22 | 22.01 | 241.67 | 0.4209 | 862.0 | 744.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -17.70 | 171.92 | 22.71 | 228.54 | 0.4927 | 941.0 | 809.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -17.29 | 171.83 | 22.62 | 229.09 | 0.4879 | 875.0 | 812.7 | |
| 0.00 | 1.88 | 0.00 | 1.07 | -17.92 | 171.88 | 22.67 | 228.15 | 0.4944 | 833.0 | 720.0 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -10.26 | 170.77 | 21.56 | 241.07 | 0.4150 | 934.0 | 730.9 | |
| 0.00 | 2.48 | 0.00 | 1.31 | -2.48 | 169.30 | 20.09 | 259.18 | 0.3509 | 858.0 | 621.4 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -21.74 | 170.19 | 20.98 | 220.39 | 0.5154 | 700.0 | 591.6 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -5.68 | 168.53 | 19.32 | 249.77 | 0.3524 | 698.0 | 512.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -14.55 | 167.56 | 18.35 | 228.13 | 0.4110 | -568.0 | -502.4 | |
| 1.37 | 118.39 | 0.73 | 63.25 | -11.62 | 167.15 | 17.94 | 233.46 | 0.3771 | 977.2 | 505.1 | |
| 0.00 | 2.40 | 0.00 | 1.30 | -14.52 | 167.30 | 18.09 | 227.80 | 0.4076 | 339.0 | -27.9 | |
| 2.65 | -19.00 | 1.42 | -19.00 | -11.61 | 166.99 | 17.78 | 233.23 | 0.3751 | 1128.3 | 999999 | |
| 13.18 | -19.00 | 7.04 | -19.00 | -11.89 | 166.91 | 17.70 | 232.52 | 0.3766 | 1195.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -15.23 | 167.04 | 17.83 | 226.08 | 0.4119 | -861.0 | -699.8 | |
| 2.74 | 12.24 | 1.47 | 6.56 | -12.83 | 166.79 | 17.58 | 230.33 | 0.3842 | 847.2 | 581.4 | |
| 0.34 | 2.05 | 0.18 | 1.10 | -12.49 | 166.57 | 17.36 | 230.70 | 0.3782 | 1051.2 | 786.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -11.97 | 166.10 | 16.88 | 231.05 | 0.3670 | 1058.0 | 860.9 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -11.42 | 165.84 | 16.63 | 231.84 | 0.3583 | 1004.0 | 834.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -11.72 | 165.61 | 16.40 | 230.78 | 0.3583 | 978.0 | 750.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -8.82 | 165.42 | 16.21 | 237.47 | 0.3287 | -864.0 | -680.4 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -11.15 | 165.51 | 16.30 | 231.92 | 0.3514 | 302.0 | 233.1 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -11.42 | 165.46 | 16.25 | 231.22 | 0.3535 | 554.0 | 440.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -10.87 | 165.40 | 16.19 | 232.37 | 0.3473 | -733.0 | -604.1 | |
| 11.73 | 465.42 | 6.25 | 248.16 | -13.19 | 165.45 | 16.24 | 227.40 | 0.3715 | 1237.9 | 500.3 | |
| 0.00 | 3.94 | 0.00 | 2.08 | -11.69 | 165.35 | 16.14 | 230.42 | 0.3548 | 1152.0 | 914.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -11.81 | 165.14 | 15.93 | 229.79 | 0.3533 | 1021.0 | 851.8 | |
| 0.00 | 2.40 | 0.00 | 1.29 | -15.40 | 165.35 | 16.14 | 222.99 | 0.3948 | 884.0 | 592.3 | |
| 1.71 | -33.00 | 0.91 | -33.00 | -13.00 | 165.15 | 15.94 | 227.26 | 0.3659 | 1296.8 | 999999 | |
| 53.33 | -33.00 | 28.46 | -33.00 | -13.79 | 165.08 | 15.87 | 225.53 | 0.3737 | 1529.2 | 999999 | |
| 3.08 | -33.00 | 1.65 | -33.00 | -14.47 | 164.93 | 15.72 | 223.97 | 0.3796 | 786.2 | 999999 | |
| 3.42 | -33.00 | 1.83 | -33.00 | -14.68 | 164.85 | 15.64 | 223.42 | 0.3812 | 925.2 | 999999 | |
| 9.07 | -33.00 | 4.84 | -33.00 | -14.19 | 164.63 | 15.42 | 223.95 | 0.3730 | 1565.6 | 999999 | |
| 8.13 | -33.00 | 4.34 | -33.00 | -14.40 | 164.58 | 15.37 | 223.45 | 0.3749 | 1276.6 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -9.74 | 163.91 | 14.70 | 232.49 | 0.3167 | -737.0 | -563.7 | |
| 0.00 | 4.02 | 0.00 | 2.12 | -12.81 | 163.88 | 14.67 | 225.33 | 0.3488 | 588.0 | 532.2 | |
| 1.63 | 3.42 | 0.85 | 1.79 | -11.16 | 163.76 | 14.55 | 228.74 | 0.3293 | -802.8 | -707.2 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.95 | 163.46 | 14.25 | 226.35 | 0.3342 | -634.0 | -417.3 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -14.49 | 163.20 | 13.99 | 220.65 | 0.3608 | 1024.0 | 794.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -11.64 | 162.88 | 13.67 | 225.88 | 0.3239 | -626.0 | -486.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.93 | 162.57 | 13.36 | 220.43 | 0.3473 | -534.0 | -343.2 | |
| 0.00 | 4.37 | 0.00 | 2.31 | -14.88 | 162.53 | 13.32 | 218.57 | 0.3587 | 457.0 | 504.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.47 | 162.23 | 13.02 | 220.61 | 0.3380 | -733.0 | -646.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.19 | 162.21 | 13.00 | 221.13 | 0.3345 | -724.0 | -671.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -14.76 | 162.21 | 13.00 | 218.12 | 0.3538 | -712.0 | -558.8 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -14.02 | 162.16 | 12.95 | 219.40 | 0.3441 | -697.0 | -569.4 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -15.71 | 161.95 | 12.74 | 215.91 | 0.3635 | -969.0 | -788.7 | |
| 0.00 | 3.34 | 0.00 | 1.79 | -17.54 | 161.25 | 12.04 | 211.57 | 0.3814 | -859.0 | -628.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -13.49 | 160.89 | 11.68 | 217.56 | 0.3243 | -733.0 | -655.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -12.75 | 160.70 | 11.49 | 218.58 | 0.3129 | -626.0 | -504.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -17.32 | 160.76 | 11.55 | 210.85 | 0.3743 | -939.0 | -800.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.88 | 160.70 | 11.49 | 211.36 | 0.3678 | -884.0 | -695.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.51 | 160.71 | 11.50 | 209.10 | 0.3903 | -678.0 | -559.3 | |
| 0.00 | 8.30 | 0.00 | 4.34 | -13.73 | 160.15 | 10.94 | 215.35 | 0.3202 | -626.0 | -724.5 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -16.94 | 159.60 | 10.39 | 208.80 | 0.3596 | -913.0 | -720.3 | |
| 0.00 | 2.23 | 0.00 | 1.20 | -19.16 | 159.29 | 10.07 | 205.25 | 0.3891 | -851.0 | -699.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.75 | 159.15 | 9.94 | 208.02 | 0.3534 | -1032.0 | -911.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -6.14 | 158.79 | 9.58 | 231.76 | 0.2117 | -847.0 | -673.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -21.23 | 159.39 | 10.18 | 203.22 | 0.4196 | -666.0 | -489.5 | |
| 0.00 | 4.11 | 0.00 | 2.15 | -14.76 | 158.22 | 9.01 | 208.61 | 0.3176 | -893.0 | -767.4 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -13.53 | 158.01 | 8.80 | 210.08 | 0.2982 | -977.0 | -852.7 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -16.87 | 157.81 | 8.60 | 204.59 | 0.3454 | -775.0 | -642.8 | |
| 0.00 | 2.57 | 0.00 | 1.34 | -15.69 | 157.57 | 8.36 | 205.54 | 0.3262 | -813.0 | -709.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.34 | 157.57 | 8.36 | 204.65 | 0.3358 | -920.0 | -742.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.24 | 157.21 | 8.00 | 212.03 | 0.2585 | -1017.0 | -776.8 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -11.61 | 157.10 | 7.89 | 210.92 | 0.2627 | -875.0 | -688.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -11.79 | 156.61 | 7.40 | 209.01 | 0.2612 | -914.0 | -745.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.25 | 156.35 | 7.14 | 205.62 | 0.2810 | -1019.0 | -750.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -14.60 | 156.39 | 7.18 | 203.74 | 0.3017 | -890.0 | -735.3 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -19.37 | 156.06 | 6.85 | 197.64 | 0.3730 | -715.0 | -586.9 | |
| 0.00 | 4.02 | 0.00 | 2.09 | -15.21 | 155.79 | 6.58 | 201.19 | 0.3073 | -64.0 | -234.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -9.06 | 154.86 | 5.65 | 208.27 | 0.2063 | -924.0 | -742.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
