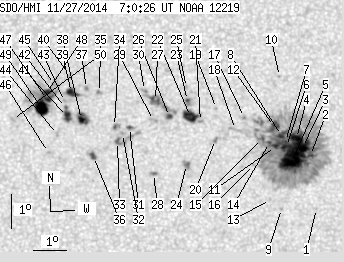

SDO HMI 2014-11-27 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.76 | 586.98 | 70.79 | 297.78 | 4.19 | 161.00 | 11.79 | 285.30 | 0.2121 | -190.0 | -194.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.44 | 2.07 | 163.59 | 14.38 | 273.00 | 0.2497 | -758.0 | -537.9 | |
| 1.71 | 384.69 | 0.88 | 196.28 | 3.64 | 163.43 | 14.22 | 279.35 | 0.2496 | -957.7 | -423.5 | |
| 15.32 | -2.00 | 7.83 | -2.00 | 3.88 | 163.19 | 13.98 | 280.46 | 0.2463 | -1279.8 | 999999 | |
| 10.27 | -2.00 | 5.24 | -2.00 | 4.15 | 163.01 | 13.80 | 281.67 | 0.2441 | -1278.2 | 999999 | |
| 32.27 | -2.00 | 16.46 | -2.00 | 3.52 | 162.88 | 13.67 | 279.22 | 0.2401 | -1503.8 | 999999 | |
| 5.56 | -2.00 | 2.84 | -2.00 | 3.91 | 162.70 | 13.49 | 280.95 | 0.2382 | -1429.0 | 999999 | |
| 0.94 | -2.00 | 0.48 | -2.00 | 4.06 | 162.68 | 13.47 | 281.58 | 0.2382 | -1236.8 | 999999 | |
| 2.91 | -2.00 | 1.48 | -2.00 | 4.24 | 162.56 | 13.35 | 282.42 | 0.2368 | -1191.8 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 2.08 | 162.53 | 13.32 | 273.24 | 0.2316 | -789.0 | -687.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 5.99 | 162.54 | 13.33 | 289.50 | 0.2443 | -720.0 | -545.1 | |
| 2.31 | -2.00 | 1.18 | -2.00 | 3.91 | 162.37 | 13.16 | 281.21 | 0.2326 | -1331.0 | 999999 | |
| 6.59 | -2.00 | 3.36 | -2.00 | 4.51 | 162.35 | 13.14 | 283.73 | 0.2343 | -976.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 2.35 | 162.19 | 12.98 | 274.50 | 0.2262 | -790.0 | -552.0 | |
| 1.11 | -2.00 | 0.57 | -2.00 | 4.03 | 162.19 | 12.98 | 281.87 | 0.2300 | -1042.5 | 999999 | |
| 1.11 | -2.00 | 0.57 | -2.00 | 4.15 | 161.98 | 12.77 | 282.57 | 0.2269 | -700.2 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 3.38 | 161.69 | 12.48 | 279.41 | 0.2197 | -782.0 | -601.8 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 4.78 | 161.44 | 12.23 | 285.87 | 0.2205 | -896.0 | -600.9 | |
| 0.00 | 4.96 | 0.00 | 2.52 | 4.42 | 161.16 | 11.95 | 284.61 | 0.2144 | 135.0 | 77.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 5.05 | 160.60 | 11.39 | 288.20 | 0.2080 | 757.0 | 582.7 | |
| 0.00 | 2.23 | 0.00 | 1.13 | 4.13 | 160.55 | 11.34 | 283.94 | 0.2030 | 843.0 | 711.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 4.67 | 160.11 | 10.90 | 287.10 | 0.1980 | 794.0 | 604.5 | |
| 10.79 | 14.21 | 5.44 | 7.17 | 4.82 | 159.81 | 10.60 | 288.29 | 0.1939 | 1161.8 | 619.3 | |
| 0.86 | 4.28 | 0.43 | 2.16 | 5.29 | 159.73 | 10.51 | 290.75 | 0.1952 | -833.2 | -338.3 | |
| 0.00 | 5.39 | 0.00 | 2.72 | 3.40 | 159.67 | 10.46 | 281.18 | 0.1855 | 1061.0 | 866.9 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 5.68 | 159.70 | 10.49 | 292.63 | 0.1972 | -864.0 | -720.4 | |
| 1.88 | 23.88 | 0.95 | 12.03 | 4.82 | 159.17 | 9.96 | 289.36 | 0.1836 | -1086.3 | -817.4 | |
| 4.11 | -26.00 | 2.07 | -26.00 | 5.30 | 158.76 | 9.55 | 292.62 | 0.1798 | -1191.6 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 3.14 | 158.67 | 9.46 | 280.75 | 0.1678 | 1089.0 | 814.7 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 4.70 | 158.69 | 9.48 | 289.62 | 0.1751 | -144.0 | -124.8 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 5.59 | 158.43 | 9.22 | 294.89 | 0.1767 | -812.0 | -758.1 | |
| 0.94 | 2.82 | 0.47 | 1.42 | 4.50 | 157.97 | 8.76 | 289.90 | 0.1621 | 1147.7 | 885.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 4.32 | 157.75 | 8.54 | 289.28 | 0.1577 | 1063.0 | 853.3 | |
| 1.20 | 11.64 | 0.60 | 5.84 | 4.09 | 157.60 | 8.39 | 288.15 | 0.1539 | 1172.4 | 699.8 | |
| 0.51 | 3.77 | 0.26 | 1.89 | 4.53 | 157.52 | 8.31 | 291.06 | 0.1550 | 1055.2 | 706.1 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 5.54 | 157.08 | 7.87 | 298.18 | 0.1553 | 939.0 | 661.3 | |
| 2.14 | 4.45 | 1.07 | 2.23 | 3.65 | 156.88 | 7.67 | 286.71 | 0.1397 | 1164.8 | 900.0 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 5.66 | 156.69 | 7.48 | 300.09 | 0.1505 | 893.0 | 731.7 | |
| 3.85 | 10.87 | 1.93 | 5.44 | 4.74 | 156.53 | 7.32 | 294.95 | 0.1407 | 1187.8 | 866.5 | |
| 5.65 | 10.02 | 2.83 | 5.01 | 5.55 | 156.24 | 7.03 | 300.94 | 0.1427 | 1114.7 | 720.6 | |
| 0.00 | 3.08 | 0.00 | 1.54 | 6.05 | 156.22 | 7.01 | 303.99 | 0.1470 | 664.0 | 577.7 | |
| 5.22 | 9.84 | 2.61 | 4.92 | 4.83 | 156.11 | 6.90 | 296.86 | 0.1349 | 1263.9 | 848.7 | |
| 0.51 | -41.00 | 0.26 | -41.00 | 5.10 | 156.06 | 6.85 | 298.81 | 0.1361 | 1170.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 5.28 | 156.03 | 6.82 | 300.05 | 0.1372 | 955.0 | 875.3 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 4.30 | 155.81 | 6.60 | 294.14 | 0.1262 | 855.0 | 759.2 | |
| 0.00 | 3.00 | 0.00 | 1.50 | 5.78 | 155.74 | 6.53 | 304.31 | 0.1375 | 119.0 | 262.1 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 3.77 | 155.53 | 6.32 | 290.94 | 0.1183 | 919.0 | 774.2 | |
| 2.91 | 57.70 | 1.45 | 28.81 | 5.34 | 155.52 | 6.31 | 302.39 | 0.1302 | 1249.6 | 479.9 | |
| 3.60 | -47.00 | 1.80 | -47.00 | 5.55 | 155.49 | 6.28 | 303.84 | 0.1318 | 1111.1 | 999999 | |
| 15.49 | -47.00 | 7.73 | -47.00 | 5.10 | 155.34 | 6.13 | 301.55 | 0.1254 | 1405.0 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 4.75 | 154.47 | 5.26 | 302.91 | 0.1093 | 835.0 | 747.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
