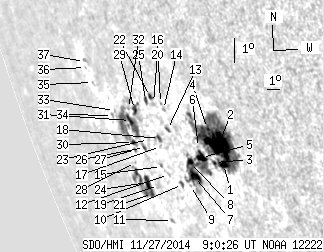

SDO HMI 2014-11-27 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.10 | 313.53 | 103.17 | 417.97 | -19.94 | 82.02 | -66.10 | 112.19 | 0.9286 | 114.7 | 22.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.28 | 201.23 | 5.11 | 245.07 | -20.35 | 84.93 | -63.19 | 113.15 | 0.9118 | 424.2 | 96.5 | |
| 32.01 | -1.00 | 37.94 | -1.00 | -19.72 | 85.04 | -63.08 | 112.48 | 0.9102 | 613.5 | 999999 | |
| 0.86 | -1.00 | 1.05 | -1.00 | -20.30 | 84.32 | -63.80 | 112.97 | 0.9157 | -138.6 | 999999 | |
| 1.03 | -1.00 | 1.23 | -1.00 | -19.22 | 84.62 | -63.50 | 111.86 | 0.9123 | 192.1 | 999999 | |
| 6.76 | -1.00 | 8.51 | -1.00 | -20.16 | 83.48 | -64.64 | 112.66 | 0.9209 | 162.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.50 | -19.84 | 83.50 | -64.62 | 112.32 | 0.9204 | -282.0 | -208.6 | |
| 8.30 | -1.00 | 10.92 | -1.00 | -20.79 | 82.43 | -65.69 | 113.13 | 0.9281 | 103.6 | 999999 | |
| 3.34 | -1.00 | 4.37 | -1.00 | -20.34 | 82.50 | -65.62 | 112.67 | 0.9272 | 128.4 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.58 | -21.09 | 81.86 | -66.26 | 113.35 | 0.9319 | -109.0 | -101.4 | |
| 0.86 | 2.48 | 1.19 | 3.44 | -21.07 | 81.23 | -66.89 | 113.22 | 0.9355 | -56.8 | -161.9 | |
| 0.00 | 1.63 | 0.00 | 2.49 | -22.28 | 79.17 | -68.95 | 114.13 | 0.9477 | -405.0 | -358.3 | |
| 0.00 | 1.37 | 0.00 | 1.96 | -20.77 | 80.34 | -67.78 | 112.75 | 0.9401 | -460.0 | -435.7 | |
| 0.86 | 2.05 | 1.15 | 2.77 | -19.32 | 81.54 | -66.58 | 111.42 | 0.9318 | 40.3 | -53.7 | |
| 0.00 | 1.20 | 0.00 | 1.60 | -18.69 | 81.73 | -66.39 | 110.77 | 0.9300 | -503.0 | -485.6 | |
| 0.00 | 0.94 | 0.00 | 1.37 | -20.53 | 79.97 | -68.15 | 112.43 | 0.9419 | -331.0 | -308.8 | |
| 0.00 | 0.68 | 0.00 | 0.91 | -18.50 | 81.64 | -66.48 | 110.56 | 0.9303 | -415.0 | -340.8 | |
| 0.00 | 1.20 | 0.00 | 1.70 | -19.88 | 80.48 | -67.64 | 111.83 | 0.9384 | 16.0 | -43.5 | |
| 1.28 | 3.77 | 1.81 | 5.31 | -19.63 | 80.63 | -67.49 | 111.59 | 0.9374 | 280.3 | 96.9 | |
| 0.00 | 2.57 | 0.00 | 3.91 | -21.15 | 79.09 | -69.03 | 112.95 | 0.9471 | -366.0 | -373.3 | |
| 0.00 | 1.46 | 0.00 | 1.99 | -18.48 | 81.09 | -67.03 | 110.45 | 0.9335 | -324.0 | -354.9 | |
| 2.14 | 26.36 | 3.41 | 42.86 | -21.43 | 78.25 | -69.87 | 113.10 | 0.9516 | -322.0 | 110.8 | |
| 1.46 | 2.74 | 1.99 | 3.75 | -18.29 | 81.00 | -67.12 | 110.24 | 0.9339 | -488.9 | -428.3 | |
| 0.00 | 0.26 | 0.00 | 0.38 | -19.68 | 79.64 | -68.48 | 111.49 | 0.9429 | -390.0 | -371.7 | |
| 5.39 | -21.00 | 8.58 | -21.00 | -21.08 | 78.16 | -69.96 | 112.73 | 0.9518 | -328.0 | 999999 | |
| 1.37 | 2.74 | 1.92 | 3.84 | -18.43 | 80.48 | -67.64 | 110.30 | 0.9371 | -256.7 | -222.9 | |
| 0.86 | 3.25 | 1.30 | 4.92 | -19.95 | 79.04 | -69.08 | 111.68 | 0.9463 | -415.0 | -470.2 | |
| 0.43 | 1.20 | 0.68 | 1.90 | -20.03 | 78.14 | -69.99 | 111.63 | 0.9510 | -157.4 | -120.1 | |
| 0.00 | 0.77 | 0.00 | 1.25 | -20.45 | 77.69 | -70.43 | 112.01 | 0.9535 | -132.0 | -84.8 | |
| 2.65 | 8.30 | 3.93 | 12.25 | -18.74 | 79.27 | -68.85 | 110.45 | 0.9440 | -547.3 | -490.4 | |
| 1.37 | 39.80 | 2.16 | 62.37 | -19.81 | 78.17 | -69.95 | 111.40 | 0.9507 | -257.7 | -9.3 | |
| 3.85 | -30.00 | 5.92 | -30.00 | -19.10 | 78.58 | -69.54 | 110.73 | 0.9480 | -468.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.43 | -18.72 | 78.76 | -69.36 | 110.35 | 0.9468 | -145.0 | -109.1 | |
| 0.00 | 0.86 | 0.00 | 1.39 | -18.82 | 77.37 | -70.75 | 110.26 | 0.9539 | 393.0 | 376.3 | |
| 0.00 | 1.63 | 0.00 | 2.70 | -18.98 | 77.00 | -71.12 | 110.38 | 0.9558 | 383.0 | 313.2 | |
| 0.00 | 0.68 | 0.00 | 1.19 | -17.97 | 76.03 | -72.09 | 109.21 | 0.9598 | -180.0 | -115.5 | |
| 0.00 | 0.68 | 0.00 | 1.20 | -17.51 | 75.78 | -72.34 | 108.70 | 0.9607 | -72.0 | -59.2 | |
| 0.00 | 1.11 | 0.00 | 1.94 | -17.32 | 75.87 | -72.25 | 108.52 | 0.9601 | -369.0 | -284.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
