SDO HMI 2014-11-27 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.45 | 310.74 | 31.19 | 173.23 | -18.45 | 123.75 | -18.87 | 138.12 | 0.4584 | 360.4 | 277.3 | |
|
previous
or next observation for the same group /

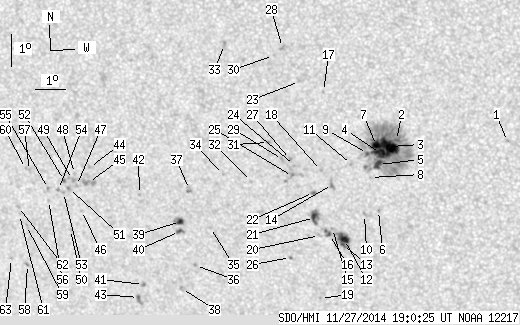

back to the solar disc SDO HMI 2014-11-27 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.48 | 130.02 | -12.61 | 147.11 | 0.3850 | 805.0 | 675.4 | |
| 1.62 | 187.38 | 0.89 | 102.46 | -17.47 | 126.46 | -16.16 | 140.44 | 0.4186 | 1105.1 | 440.1 | |
| 19.16 | -2.00 | 10.46 | -2.00 | -17.66 | 126.22 | -16.40 | 140.33 | 0.4233 | 1429.5 | 999999 | |
| 9.15 | -2.00 | 5.01 | -2.00 | -17.88 | 125.91 | -16.72 | 140.16 | 0.4291 | 1019.6 | 999999 | |
| 4.36 | -2.00 | 2.40 | -2.00 | -18.22 | 125.81 | -16.82 | 140.53 | 0.4342 | 830.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.68 | 125.65 | -16.97 | 142.45 | 0.4528 | 936.0 | 771.1 | |
| 6.76 | -2.00 | 3.70 | -2.00 | -17.63 | 125.80 | -16.82 | 139.59 | 0.4273 | 1130.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -18.63 | 125.50 | -17.12 | 140.67 | 0.4420 | 532.0 | 459.4 | |
| 0.77 | -2.00 | 0.42 | -2.00 | -17.88 | 125.48 | -17.14 | 139.47 | 0.4335 | 787.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -19.81 | 125.18 | -17.45 | 141.89 | 0.4589 | 845.0 | 695.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.23 | 124.93 | -17.70 | 139.13 | 0.4432 | 521.0 | 456.7 | |
| 4.79 | 14.71 | 2.69 | 8.28 | -20.61 | 124.42 | -18.20 | 141.86 | 0.4755 | 1100.0 | 728.1 | |
| 0.26 | -12.00 | 0.14 | -12.00 | -20.77 | 124.33 | -18.29 | 141.96 | 0.4782 | 833.3 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.47 | -18.86 | 124.23 | -18.39 | 139.05 | 0.4575 | 686.0 | 678.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -20.26 | 124.06 | -18.56 | 140.85 | 0.4749 | 862.0 | 620.0 | |
| 0.94 | 3.68 | 0.53 | 2.07 | -20.45 | 123.94 | -18.68 | 140.94 | 0.4783 | 744.1 | 641.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.96 | 124.25 | -18.38 | 134.32 | 0.4255 | 638.0 | 554.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -18.42 | 123.92 | -18.70 | 137.91 | 0.4558 | 916.0 | 694.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -22.51 | 123.36 | -19.27 | 142.89 | 0.5073 | 745.0 | 576.2 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -20.48 | 123.60 | -19.02 | 140.50 | 0.4820 | 470.0 | 360.2 | |
| 4.19 | 10.60 | 2.36 | 5.97 | -19.91 | 123.51 | -19.12 | 139.55 | 0.4765 | 970.0 | 774.2 | |
| 0.34 | 2.22 | 0.19 | 1.24 | -19.12 | 123.57 | -19.05 | 138.47 | 0.4671 | 971.2 | 805.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -15.65 | 123.50 | -19.13 | 132.67 | 0.4310 | 777.0 | 678.4 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -18.27 | 123.05 | -19.58 | 136.41 | 0.4634 | 799.0 | 670.4 | |
| 0.00 | 7.53 | 0.00 | 4.21 | -18.62 | 122.94 | -19.69 | 136.80 | 0.4683 | 802.0 | 597.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -21.19 | 122.53 | -20.09 | 140.00 | 0.5004 | -429.0 | -469.4 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -18.09 | 122.94 | -19.69 | 135.96 | 0.4626 | 865.0 | 712.8 | |
| 0.00 | 2.48 | 0.00 | 1.36 | -14.61 | 123.05 | -19.58 | 130.12 | 0.4259 | 880.0 | 777.2 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -18.09 | 122.67 | -19.95 | 135.59 | 0.4655 | 762.0 | 570.3 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -14.86 | 122.73 | -19.90 | 130.14 | 0.4321 | 633.0 | 576.8 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -17.56 | 122.27 | -20.35 | 134.19 | 0.4644 | 893.0 | 703.2 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -18.79 | 121.55 | -21.07 | 135.17 | 0.4849 | 61.0 | 152.8 | |
| 0.00 | 2.48 | 0.00 | 1.37 | -14.53 | 121.16 | -21.46 | 127.49 | 0.4483 | 856.0 | 632.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -18.58 | 120.64 | -21.98 | 133.68 | 0.4927 | -717.0 | -523.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -20.26 | 119.95 | -22.67 | 135.36 | 0.5168 | -759.0 | -551.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -21.48 | 119.24 | -23.39 | 136.25 | 0.5363 | -852.0 | -730.2 | |
| 0.00 | 3.42 | 0.00 | 1.97 | -19.06 | 119.42 | -23.21 | 132.94 | 0.5108 | 470.0 | 427.5 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -22.22 | 118.61 | -24.01 | 136.56 | 0.5500 | 676.0 | 559.3 | |
| 2.31 | 5.64 | 1.34 | 3.28 | -20.08 | 118.95 | -23.67 | 133.92 | 0.5256 | -1069.0 | -846.8 | |
| 1.20 | 3.16 | 0.70 | 1.84 | -20.39 | 118.87 | -23.76 | 134.28 | 0.5296 | -941.1 | -717.1 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -22.11 | 117.30 | -25.33 | 134.95 | 0.5622 | -828.0 | -736.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -19.23 | 117.68 | -24.95 | 131.24 | 0.5318 | -837.0 | -729.5 | |
| 0.60 | 4.02 | 0.36 | 2.42 | -22.53 | 117.04 | -25.59 | 135.25 | 0.5688 | -876.1 | -691.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -18.40 | 116.08 | -26.55 | 128.32 | 0.5427 | -881.0 | -722.9 | |
| 0.00 | 6.76 | 0.00 | 3.99 | -18.87 | 115.96 | -26.66 | 128.93 | 0.5480 | -841.0 | -745.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -19.76 | 115.56 | -27.07 | 129.85 | 0.5600 | -525.0 | -451.2 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -18.97 | 115.52 | -27.10 | 128.65 | 0.5538 | -690.0 | -601.5 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -18.59 | 115.52 | -27.10 | 128.07 | 0.5507 | -719.0 | -592.9 | |
| 0.00 | 3.76 | 0.00 | 2.23 | -18.78 | 115.42 | -27.21 | 128.26 | 0.5535 | -986.0 | -725.7 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -20.37 | 115.05 | -27.58 | 130.24 | 0.5707 | -99.0 | -141.1 | |
| 0.00 | 1.37 | 0.00 | 0.82 | -19.07 | 115.22 | -27.40 | 128.51 | 0.5580 | -821.0 | -726.2 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -18.82 | 115.13 | -27.50 | 128.04 | 0.5571 | -857.0 | -831.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -19.20 | 115.02 | -27.60 | 128.51 | 0.5613 | -880.0 | -726.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -19.10 | 114.86 | -27.76 | 128.22 | 0.5624 | -784.0 | -659.9 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -19.07 | 114.51 | -28.11 | 127.85 | 0.5662 | -749.0 | -606.8 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -19.45 | 114.44 | -28.18 | 128.34 | 0.5700 | -759.0 | -622.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -18.51 | 113.94 | -28.68 | 126.50 | 0.5683 | -790.0 | -589.2 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -21.51 | 113.26 | -29.37 | 130.18 | 0.5994 | -777.0 | -711.8 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -20.26 | 113.49 | -29.13 | 128.64 | 0.5870 | -730.0 | -545.6 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -18.45 | 113.81 | -28.81 | 126.29 | 0.5694 | -601.0 | -541.3 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -19.91 | 113.31 | -29.31 | 127.99 | 0.5863 | -639.0 | -504.0 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -19.66 | 113.33 | -29.30 | 127.64 | 0.5842 | -664.0 | -529.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -21.32 | 112.72 | -29.91 | 129.45 | 0.6038 | -681.0 | -481.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
