SDO HMI 2014-11-27 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.23 | 319.14 | 33.77 | 177.49 | -18.46 | 123.67 | -18.40 | 138.85 | 0.4536 | 311.4 | 254.4 | |
|
previous
or next observation for the same group /

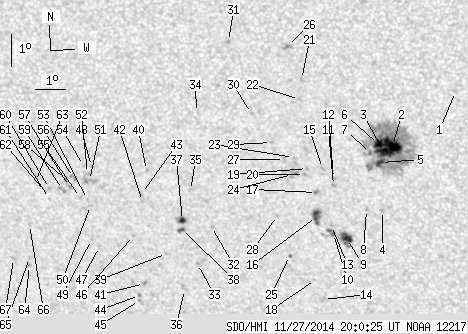

back to the solar disc SDO HMI 2014-11-27 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.69 | -15.97 | 128.37 | -13.70 | 142.49 | 0.3756 | 814.0 | 685.3 | |
| 19.93 | 192.85 | 10.85 | 105.15 | -17.66 | 126.22 | -15.85 | 141.26 | 0.4177 | 1436.6 | 434.6 | |
| 8.81 | -2.00 | 4.81 | -2.00 | -17.88 | 125.94 | -16.13 | 141.13 | 0.4232 | 1040.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.71 | 125.69 | -16.38 | 143.44 | 0.4476 | 981.0 | 769.5 | |
| 4.28 | -2.00 | 2.34 | -2.00 | -18.19 | 125.78 | -16.29 | 141.35 | 0.4285 | 819.7 | 999999 | |
| 8.55 | -2.00 | 4.67 | -2.00 | -17.63 | 125.77 | -16.30 | 140.45 | 0.4219 | 1054.4 | 999999 | |
| 0.68 | -2.00 | 0.37 | -2.00 | -17.91 | 125.48 | -16.59 | 140.42 | 0.4281 | 708.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -19.68 | 125.17 | -16.90 | 142.56 | 0.4522 | 876.0 | 725.9 | |
| 7.61 | 13.34 | 4.27 | 7.48 | -20.61 | 124.40 | -17.67 | 142.66 | 0.4704 | 1085.0 | 671.5 | |
| 0.77 | 6.59 | 0.43 | 3.70 | -20.45 | 123.99 | -18.08 | 141.82 | 0.4725 | 773.0 | 531.5 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -18.93 | 124.17 | -17.90 | 139.88 | 0.4532 | 864.0 | 701.7 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -18.71 | 124.19 | -17.88 | 139.59 | 0.4504 | 889.0 | 749.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.19 | 123.95 | -18.12 | 141.41 | 0.4699 | 791.0 | 562.5 | |
| 0.00 | 2.31 | 0.00 | 1.32 | -22.57 | 123.37 | -18.70 | 143.77 | 0.5029 | 718.0 | 506.0 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -18.39 | 123.87 | -18.20 | 138.61 | 0.4502 | 864.0 | 671.9 | |
| 5.47 | 10.01 | 3.07 | 5.61 | -19.91 | 123.49 | -18.58 | 140.32 | 0.4711 | 950.7 | 716.5 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -19.15 | 123.58 | -18.49 | 139.34 | 0.4616 | 1007.0 | 858.0 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -21.93 | 123.19 | -18.88 | 142.67 | 0.4970 | -128.0 | -262.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -18.40 | 123.37 | -18.70 | 137.87 | 0.4554 | 871.0 | 728.9 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -18.59 | 123.25 | -18.82 | 137.99 | 0.4587 | 851.0 | 664.5 | |
| 0.00 | 2.48 | 0.00 | 1.36 | -15.62 | 123.47 | -18.60 | 133.38 | 0.4245 | 838.0 | 609.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.24 | 123.34 | -18.73 | 134.29 | 0.4324 | 888.0 | 729.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -18.05 | 122.95 | -19.12 | 136.71 | 0.4561 | 740.0 | 570.1 | |
| 0.00 | 3.85 | 0.00 | 2.15 | -18.59 | 122.86 | -19.21 | 137.41 | 0.4629 | 598.0 | 685.4 | |
| 0.34 | 1.28 | 0.19 | 0.73 | -21.16 | 122.42 | -19.65 | 140.56 | 0.4956 | -591.8 | -495.3 | |
| 0.00 | 4.28 | 0.00 | 2.33 | -14.61 | 123.11 | -18.96 | 131.00 | 0.4184 | 958.0 | 724.4 | |
| 0.00 | 2.39 | 0.00 | 1.33 | -18.12 | 122.65 | -19.42 | 136.38 | 0.4600 | 759.0 | 546.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -19.89 | 122.19 | -19.88 | 138.44 | 0.4839 | 635.0 | 517.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.59 | 122.28 | -19.79 | 135.01 | 0.4584 | 906.0 | 656.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -16.69 | 121.73 | -20.35 | 132.75 | 0.4555 | 706.0 | 525.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -14.47 | 121.21 | -20.86 | 128.13 | 0.4403 | 882.0 | 772.5 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -20.26 | 119.91 | -22.16 | 135.99 | 0.5113 | -789.0 | -655.1 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.44 | 119.24 | -22.83 | 136.86 | 0.5302 | -841.0 | -666.1 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -16.67 | 119.90 | -22.17 | 130.37 | 0.4764 | -535.0 | -444.2 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -19.12 | 119.37 | -22.70 | 133.63 | 0.5058 | 691.0 | 590.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.29 | 118.65 | -23.42 | 137.31 | 0.5447 | 718.0 | 435.2 | |
| 2.91 | 5.99 | 1.68 | 3.47 | -20.07 | 118.95 | -23.12 | 134.56 | 0.5196 | -1029.4 | -756.5 | |
| 1.54 | 3.08 | 0.89 | 1.79 | -20.36 | 118.87 | -23.20 | 134.88 | 0.5233 | -899.3 | -737.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -21.13 | 118.23 | -23.85 | 135.23 | 0.5376 | -387.0 | -441.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -18.50 | 117.96 | -24.11 | 131.05 | 0.5157 | -781.0 | -599.3 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -22.11 | 117.28 | -24.79 | 135.52 | 0.5567 | -831.0 | -696.9 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -19.48 | 117.67 | -24.40 | 132.21 | 0.5279 | -801.0 | -690.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -19.23 | 117.68 | -24.39 | 131.84 | 0.5255 | -716.0 | -693.2 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -22.50 | 117.03 | -25.04 | 135.78 | 0.5629 | -799.0 | -634.2 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -22.66 | 117.00 | -25.07 | 135.96 | 0.5648 | -775.0 | -586.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -20.57 | 117.18 | -24.90 | 133.26 | 0.5433 | -745.0 | -648.9 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -20.93 | 115.92 | -26.15 | 132.44 | 0.5601 | -548.0 | -374.6 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -18.39 | 116.09 | -25.99 | 128.88 | 0.5362 | -910.0 | -684.5 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -20.71 | 115.68 | -26.40 | 131.89 | 0.5607 | -624.0 | -552.5 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -19.63 | 115.84 | -26.23 | 130.48 | 0.5495 | -598.0 | -457.8 | |
| 0.00 | 6.67 | 0.00 | 3.92 | -18.84 | 115.94 | -26.13 | 129.41 | 0.5416 | -823.0 | -680.0 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -18.62 | 115.91 | -26.16 | 129.04 | 0.5401 | -887.0 | -747.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -19.44 | 115.77 | -26.30 | 130.13 | 0.5487 | -702.0 | -599.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -18.37 | 115.81 | -26.26 | 128.56 | 0.5391 | -678.0 | -601.2 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -19.38 | 115.53 | -26.54 | 129.80 | 0.5508 | -685.0 | -517.2 | |
| 0.00 | 2.82 | 0.00 | 1.67 | -18.75 | 115.40 | -26.67 | 128.73 | 0.5470 | -875.0 | -810.5 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -19.03 | 115.21 | -26.86 | 128.97 | 0.5516 | -918.0 | -737.1 | |
| 0.34 | 1.37 | 0.20 | 0.81 | -18.81 | 115.11 | -26.96 | 128.54 | 0.5509 | -855.2 | -749.2 | |
| 0.00 | 2.82 | 0.00 | 1.68 | -19.13 | 114.95 | -27.13 | 128.86 | 0.5554 | -676.0 | -661.7 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -19.10 | 114.49 | -27.58 | 128.38 | 0.5603 | -863.0 | -695.9 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -19.42 | 114.43 | -27.64 | 128.80 | 0.5635 | -552.0 | -532.0 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -19.20 | 114.33 | -27.74 | 128.38 | 0.5629 | -660.0 | -578.9 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -18.89 | 114.04 | -28.04 | 127.64 | 0.5638 | -728.0 | -528.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -21.57 | 113.28 | -28.79 | 130.78 | 0.5938 | -833.0 | -741.4 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -21.31 | 113.34 | -28.74 | 130.47 | 0.5911 | -735.0 | -647.2 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -20.25 | 113.56 | -28.51 | 129.19 | 0.5801 | -665.0 | -461.7 | |
| 0.00 | 2.39 | 0.00 | 1.48 | -21.35 | 112.75 | -29.33 | 130.00 | 0.5977 | -669.0 | -398.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
