SDO HMI 2014-11-27 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177.97 | 601.86 | 93.35 | 317.12 | 4.06 | 161.60 | 19.52 | 278.79 | 0.3386 | -206.0 | -175.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

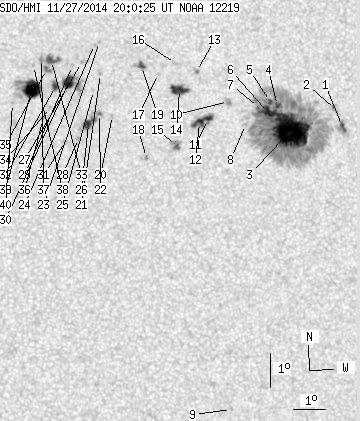

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.65 | 8.38 | 1.43 | 4.51 | 3.79 | 164.92 | 22.84 | 276.60 | 0.3917 | 660.3 | 232.6 | |
| 0.00 | 4.28 | 0.00 | 2.30 | 4.30 | 164.71 | 22.63 | 277.95 | 0.3892 | -154.0 | -128.3 | |
| 84.75 | 420.60 | 45.05 | 223.51 | 3.69 | 163.25 | 21.18 | 276.77 | 0.3647 | -1315.7 | -368.4 | |
| 2.74 | -3.00 | 1.45 | -3.00 | 4.43 | 162.86 | 20.79 | 278.94 | 0.3598 | -843.5 | 999999 | |
| 1.80 | -3.00 | 0.95 | -3.00 | 4.55 | 162.64 | 20.57 | 279.36 | 0.3565 | -1018.1 | 999999 | |
| 13.34 | -3.00 | 7.06 | -3.00 | 4.23 | 162.57 | 20.50 | 278.48 | 0.3546 | -1252.8 | 999999 | |
| 0.77 | -3.00 | 0.41 | -3.00 | 4.38 | 162.25 | 20.18 | 279.03 | 0.3499 | -835.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 3.88 | 161.83 | 19.76 | 277.75 | 0.3419 | -811.0 | -588.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -4.56 | 161.40 | 19.33 | 252.95 | 0.3466 | 569.0 | 409.5 | |
| 0.00 | 4.45 | 0.00 | 2.34 | 4.56 | 161.31 | 19.24 | 279.98 | 0.3351 | -773.0 | -698.9 | |
| 3.76 | 17.19 | 1.97 | 8.98 | 4.07 | 160.67 | 18.60 | 278.76 | 0.3234 | 818.7 | 562.2 | |
| 6.41 | -11.00 | 3.35 | -11.00 | 3.95 | 160.39 | 18.32 | 278.52 | 0.3185 | 952.4 | 999999 | |
| 0.34 | 2.48 | 0.18 | 1.30 | 5.46 | 160.34 | 18.27 | 283.22 | 0.3220 | -1021.8 | -787.6 | |
| 10.01 | 13.51 | 5.21 | 7.04 | 4.93 | 159.79 | 17.72 | 281.92 | 0.3113 | 1046.4 | 647.2 | |
| 1.62 | 7.70 | 0.84 | 4.00 | 3.25 | 159.66 | 17.59 | 276.54 | 0.3050 | 1094.6 | 785.8 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 5.70 | 159.69 | 17.62 | 284.42 | 0.3124 | -702.0 | -503.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 5.41 | 159.15 | 17.08 | 283.88 | 0.3026 | -759.0 | -562.7 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 2.93 | 158.72 | 16.65 | 275.77 | 0.2889 | 933.0 | 744.0 | |
| 2.39 | 5.05 | 1.24 | 2.61 | 5.65 | 158.63 | 16.56 | 285.08 | 0.2951 | -1077.0 | -783.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 4.18 | 157.70 | 15.63 | 280.67 | 0.2746 | 787.0 | 664.1 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 5.42 | 157.36 | 15.29 | 285.40 | 0.2735 | -932.0 | -665.3 | |
| 0.60 | 15.31 | 0.31 | 7.86 | 4.24 | 157.30 | 15.23 | 281.16 | 0.2682 | 897.7 | 809.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 6.37 | 157.36 | 15.28 | 288.73 | 0.2779 | 694.0 | 528.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 6.29 | 157.20 | 15.13 | 288.60 | 0.2749 | 776.0 | 622.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 4.92 | 157.13 | 15.06 | 283.79 | 0.2677 | 577.0 | 465.9 | |
| 6.50 | -22.00 | 3.33 | -22.00 | 3.95 | 156.95 | 14.88 | 280.29 | 0.2616 | 1105.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 5.75 | 156.78 | 14.71 | 287.15 | 0.2656 | 840.0 | 627.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 3.50 | 156.64 | 14.57 | 278.78 | 0.2552 | 977.0 | 802.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 5.67 | 156.50 | 14.43 | 287.13 | 0.2607 | 878.0 | 656.1 | |
| 9.15 | 20.44 | 4.69 | 10.48 | 5.16 | 156.37 | 14.30 | 285.39 | 0.2563 | 1121.3 | 635.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 3.42 | 156.24 | 14.17 | 278.66 | 0.2483 | 918.0 | 702.2 | |
| 3.68 | 5.64 | 1.88 | 2.89 | 5.05 | 155.97 | 13.90 | 285.34 | 0.2492 | 1192.5 | 877.0 | |
| 4.96 | 8.47 | 2.54 | 4.33 | 5.82 | 155.86 | 13.79 | 288.43 | 0.2512 | 1025.2 | 788.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 4.43 | 155.80 | 13.73 | 283.04 | 0.2440 | 959.0 | 703.4 | |
| 1.20 | 3.68 | 0.61 | 1.88 | 5.55 | 155.70 | 13.63 | 287.60 | 0.2472 | 1210.8 | 996.9 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 4.13 | 155.58 | 13.51 | 282.02 | 0.2393 | 1071.0 | 862.4 | |
| 0.00 | 3.42 | 0.00 | 1.75 | 5.88 | 155.56 | 13.49 | 289.04 | 0.2466 | 723.0 | 620.7 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 5.68 | 155.31 | 13.24 | 288.55 | 0.2415 | 808.0 | 633.9 | |
| 21.30 | 37.80 | 10.85 | 19.26 | 4.96 | 155.23 | 13.16 | 285.78 | 0.2368 | 1263.2 | 515.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 4.55 | 154.65 | 12.57 | 284.69 | 0.2254 | 944.0 | 705.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
