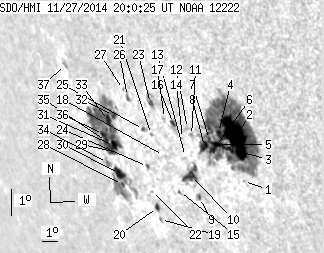

SDO HMI 2014-11-27 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.14 | 496.07 | 121.58 | 528.71 | -19.77 | 82.30 | -59.77 | 113.30 | 0.8853 | 195.6 | 13.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.58 | -20.92 | 85.68 | -56.39 | 115.37 | 0.8630 | 467.0 | 396.1 | |
| 51.31 | 281.80 | 49.05 | 271.82 | -19.51 | 86.01 | -56.06 | 113.88 | 0.8573 | 877.2 | 181.4 | |
| 3.42 | -2.00 | 3.32 | -2.00 | -19.90 | 85.51 | -56.56 | 114.18 | 0.8622 | 108.5 | 999999 | |
| 2.39 | -2.00 | 2.34 | -2.00 | -19.37 | 85.11 | -56.96 | 113.48 | 0.8643 | 142.9 | 999999 | |
| 4.70 | -2.00 | 4.64 | -2.00 | -19.76 | 84.84 | -57.23 | 113.84 | 0.8673 | 73.5 | 999999 | |
| 2.99 | -2.00 | 2.98 | -2.00 | -19.92 | 84.51 | -57.56 | 113.94 | 0.8702 | -439.0 | 999999 | |
| 0.26 | -2.00 | 0.26 | -2.00 | -19.61 | 84.45 | -57.62 | 113.58 | 0.8700 | 312.0 | 999999 | |
| 5.82 | -2.00 | 5.88 | -2.00 | -19.84 | 84.02 | -58.05 | 113.73 | 0.8738 | 312.8 | 999999 | |
| 0.94 | 3.34 | 1.00 | 3.56 | -21.49 | 82.68 | -59.39 | 115.22 | 0.8872 | -646.1 | -466.6 | |
| 9.92 | 17.45 | 10.53 | 18.53 | -20.79 | 82.64 | -59.43 | 114.44 | 0.8861 | 465.6 | 181.9 | |
| 0.00 | 1.97 | 0.00 | 2.02 | -19.50 | 83.44 | -58.64 | 113.21 | 0.8777 | -425.0 | -366.0 | |
| 0.00 | 1.54 | 0.00 | 1.58 | -19.29 | 83.32 | -58.75 | 112.94 | 0.8782 | -355.0 | -298.0 | |
| 0.00 | 0.86 | 0.00 | 0.90 | -20.19 | 82.65 | -59.42 | 113.78 | 0.8849 | -281.0 | -274.9 | |
| 0.00 | 0.26 | 0.00 | 0.27 | -19.61 | 82.82 | -59.25 | 113.18 | 0.8826 | 145.0 | 183.3 | |
| 0.00 | 1.11 | 0.00 | 1.23 | -21.32 | 81.51 | -60.56 | 114.76 | 0.8953 | 106.0 | 124.3 | |
| 1.97 | 4.36 | 2.07 | 4.59 | -19.14 | 82.54 | -59.53 | 112.60 | 0.8839 | 277.2 | -74.2 | |
| 0.00 | 0.51 | 0.00 | 0.55 | -19.00 | 82.07 | -60.00 | 112.33 | 0.8872 | -227.0 | -215.2 | |
| 0.00 | 1.11 | 0.00 | 1.22 | -20.18 | 81.25 | -60.82 | 113.45 | 0.8952 | -217.0 | -234.2 | |
| 0.00 | 1.28 | 0.00 | 1.52 | -22.27 | 79.53 | -62.55 | 115.33 | 0.9103 | -442.0 | -441.7 | |
| 2.14 | 3.34 | 2.52 | 3.93 | -21.88 | 79.62 | -62.45 | 114.93 | 0.9091 | -463.3 | -364.0 | |
| 0.00 | 1.37 | 0.00 | 1.52 | -19.53 | 80.90 | -61.17 | 112.66 | 0.8966 | -400.0 | -408.4 | |
| 0.00 | 1.11 | 0.00 | 1.30 | -21.37 | 79.60 | -62.47 | 114.37 | 0.9084 | 109.0 | -14.9 | |
| 1.71 | 8.30 | 1.85 | 8.95 | -18.54 | 81.45 | -60.62 | 111.69 | 0.8910 | -646.3 | -539.5 | |
| 0.60 | 1.80 | 0.69 | 2.07 | -20.56 | 79.92 | -62.15 | 113.57 | 0.9051 | -440.6 | -477.1 | |
| 0.94 | 2.14 | 1.06 | 2.40 | -19.38 | 80.47 | -61.60 | 112.40 | 0.8995 | 335.6 | 228.3 | |
| 0.00 | 3.42 | 0.00 | 3.87 | -18.35 | 80.06 | -62.01 | 111.19 | 0.9008 | -417.0 | -392.4 | |
| 0.00 | 0.68 | 0.00 | 0.78 | -18.13 | 79.93 | -62.14 | 110.93 | 0.9014 | -265.0 | -266.8 | |
| 1.11 | 42.85 | 1.40 | 53.75 | -21.18 | 77.66 | -64.41 | 113.78 | 0.9207 | -455.3 | -175.5 | |
| 0.00 | 1.37 | 0.00 | 1.66 | -20.18 | 78.38 | -63.69 | 112.85 | 0.9148 | -274.0 | -255.5 | |
| 7.87 | -28.00 | 9.84 | -28.00 | -20.83 | 77.73 | -64.34 | 113.42 | 0.9198 | -502.1 | 999999 | |
| 4.96 | 106.48 | 6.09 | 131.12 | -19.94 | 77.99 | -64.08 | 112.51 | 0.9170 | -782.4 | -122.1 | |
| 2.39 | -31.00 | 2.85 | -31.00 | -18.97 | 78.69 | -63.39 | 111.61 | 0.9111 | -771.4 | 999999 | |
| 4.36 | -31.00 | 5.29 | -31.00 | -19.14 | 78.21 | -63.86 | 111.70 | 0.9145 | -644.3 | 999999 | |
| 0.86 | 4.45 | 1.09 | 5.67 | -20.49 | 77.10 | -64.97 | 112.94 | 0.9233 | -46.9 | 15.1 | |
| 3.68 | -31.00 | 4.59 | -31.00 | -19.82 | 77.56 | -64.51 | 112.30 | 0.9196 | -266.7 | 999999 | |
| 1.80 | -31.00 | 2.24 | -31.00 | -19.60 | 77.51 | -64.56 | 112.06 | 0.9196 | -195.9 | 999999 | |
| 0.00 | 2.57 | 0.00 | 3.32 | -17.43 | 76.25 | -65.82 | 109.51 | 0.9251 | -462.0 | -343.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
