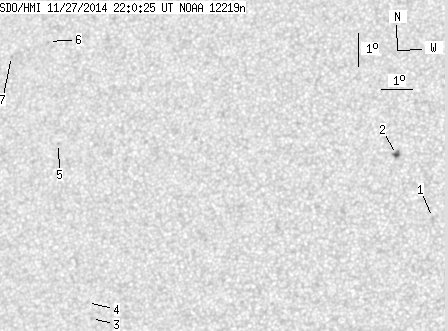

SDO HMI 2014-11-27 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 9.83 | 0.89 | 5.24 | 12.48 | 123.46 | -17.51 | 54.85 | 0.3575 | -597.2 | -485.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.66 | 11.16 | 129.84 | -11.13 | 47.84 | 0.2566 | 693.0 | 489.1 | |
| 1.71 | 3.85 | 0.89 | 1.99 | 13.05 | 128.65 | -12.32 | 45.54 | 0.2925 | -1054.8 | -838.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 8.09 | 119.31 | -21.66 | 71.88 | 0.3862 | -878.0 | -625.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 8.56 | 119.15 | -21.82 | 70.82 | 0.3908 | -754.0 | -505.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 13.32 | 117.83 | -23.14 | 61.24 | 0.4381 | -717.0 | -567.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 16.43 | 117.14 | -23.83 | 55.88 | 0.4701 | -807.0 | -618.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 15.96 | 115.95 | -25.02 | 57.92 | 0.4819 | -713.0 | -595.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
