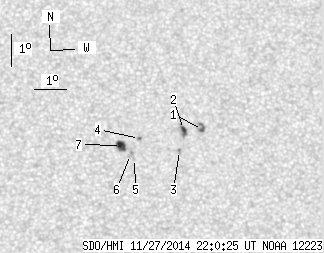

SDO HMI 2014-11-27 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.64 | 23.53 | 4.53 | 12.35 | 17.77 | 151.31 | 10.34 | 329.01 | 0.3329 | -307.2 | 123.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 4.62 | 0.63 | 2.44 | 18.09 | 152.79 | 11.82 | 326.04 | 0.3502 | 1131.4 | 904.2 | |
| 1.97 | 4.70 | 1.04 | 2.48 | 18.10 | 152.19 | 11.22 | 327.40 | 0.3448 | 980.7 | 816.9 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 17.45 | 152.02 | 11.05 | 326.69 | 0.3345 | 954.0 | 790.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.83 | 150.78 | 9.81 | 330.31 | 0.3290 | -753.0 | -597.6 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 17.21 | 150.59 | 9.62 | 329.79 | 0.3187 | -765.0 | -612.8 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 17.33 | 150.47 | 9.50 | 330.30 | 0.3195 | -631.0 | -643.8 | |
| 5.47 | 8.30 | 2.86 | 4.34 | 17.61 | 150.20 | 9.23 | 331.44 | 0.3213 | -1104.4 | -768.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
