SDO HMI 2014-11-27 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.06 | 636.30 | 61.74 | 360.22 | -13.53 | 165.42 | 25.00 | 238.21 | 0.4860 | 503.9 | 361.9 | |
|
previous
or next observation for the same group /

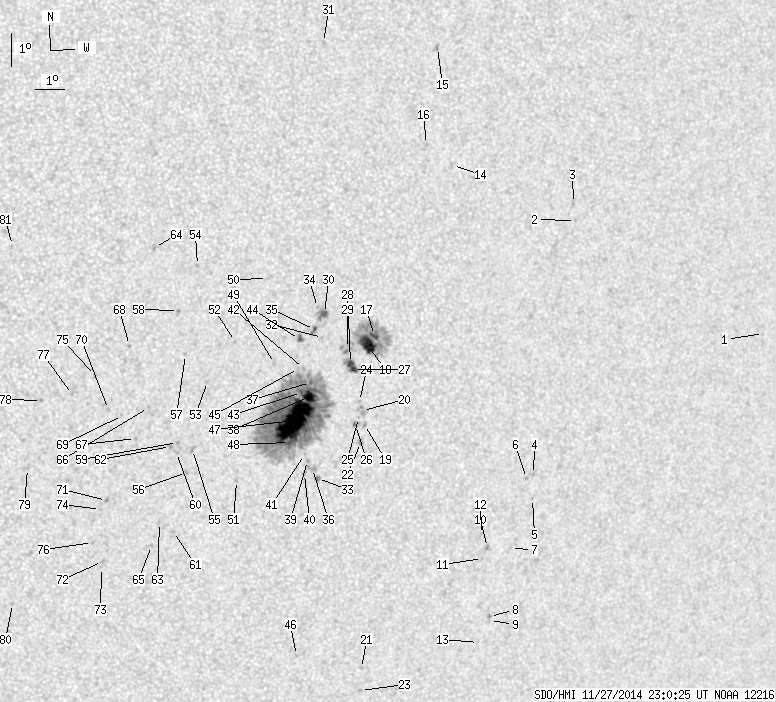

back to the solar disc SDO HMI 2014-11-27 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.46 | -11.63 | 181.67 | 41.26 | 251.32 | 0.6841 | 520.0 | 447.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -8.11 | 174.06 | 33.65 | 253.76 | 0.5736 | 631.0 | 489.1 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -7.60 | 173.95 | 33.53 | 254.58 | 0.5702 | 631.0 | 487.8 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -15.83 | 173.61 | 33.20 | 241.08 | 0.6041 | 593.0 | 560.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -16.57 | 173.72 | 33.30 | 240.04 | 0.6097 | 694.0 | 535.8 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -15.95 | 173.38 | 32.96 | 240.74 | 0.6019 | 816.0 | 669.6 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -18.12 | 173.22 | 32.80 | 237.41 | 0.6134 | 661.0 | 478.4 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -20.27 | 172.91 | 32.50 | 234.14 | 0.6242 | 711.0 | 629.8 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -20.39 | 172.94 | 32.53 | 233.98 | 0.6254 | 547.0 | 409.6 | |
| 0.00 | 1.97 | 0.00 | 1.22 | -18.08 | 172.36 | 31.95 | 236.84 | 0.6031 | 852.0 | 680.7 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -18.42 | 172.25 | 31.83 | 236.25 | 0.6041 | 713.0 | 543.8 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -17.67 | 172.06 | 31.64 | 237.22 | 0.5968 | 721.0 | 478.8 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -21.09 | 172.70 | 32.28 | 232.84 | 0.6276 | 630.0 | 499.8 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -6.41 | 169.63 | 29.21 | 254.85 | 0.5045 | 630.0 | 503.8 | |
| 0.00 | 2.40 | 0.00 | 1.35 | -2.89 | 168.96 | 28.55 | 261.61 | 0.4845 | 764.0 | 639.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -5.77 | 168.71 | 28.29 | 255.67 | 0.4887 | 652.0 | 490.4 | |
| 3.42 | 81.69 | 1.95 | 46.58 | -11.49 | 167.40 | 26.98 | 243.77 | 0.4977 | 805.8 | 331.0 | |
| 16.42 | -17.00 | 9.36 | -17.00 | -11.76 | 167.19 | 26.77 | 243.11 | 0.4965 | 1032.6 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.28 | -14.20 | 167.37 | 26.95 | 238.91 | 0.5152 | -633.0 | -616.2 | |
| 0.00 | 6.59 | 0.00 | 3.79 | -13.77 | 167.24 | 26.83 | 239.55 | 0.5106 | 86.0 | 185.4 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -21.87 | 168.56 | 28.15 | 228.23 | 0.5893 | 683.0 | 541.8 | |
| 0.00 | 2.48 | 0.00 | 1.43 | -14.76 | 167.30 | 26.89 | 237.91 | 0.5183 | -1035.0 | -834.3 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -22.58 | 168.68 | 28.27 | 227.38 | 0.5965 | 707.0 | 551.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -13.50 | 167.11 | 26.70 | 239.91 | 0.5069 | 801.0 | 550.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.99 | 167.13 | 26.72 | 239.08 | 0.5107 | 426.0 | 314.6 | |
| 0.00 | 3.34 | 0.00 | 1.92 | -14.20 | 167.06 | 26.65 | 238.64 | 0.5112 | 399.0 | 178.2 | |
| 3.16 | 12.15 | 1.80 | 6.91 | -12.52 | 166.79 | 26.38 | 241.39 | 0.4961 | 804.8 | 734.6 | |
| 3.34 | -27.00 | 1.90 | -27.00 | -12.33 | 166.67 | 26.26 | 241.62 | 0.4933 | 1001.4 | 999999 | |
| 0.00 | 11.12 | 0.00 | 6.30 | -11.87 | 166.52 | 26.11 | 242.34 | 0.4882 | 661.0 | 799.2 | |
| 2.14 | 8.81 | 1.20 | 4.93 | -10.80 | 165.65 | 25.24 | 243.63 | 0.4694 | 439.0 | 241.2 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -2.70 | 165.18 | 24.76 | 260.81 | 0.4257 | 838.0 | 607.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -11.53 | 165.65 | 25.24 | 242.22 | 0.4741 | 795.0 | 539.0 | |
| 0.43 | 2.82 | 0.25 | 1.62 | -15.85 | 165.98 | 25.56 | 234.80 | 0.5101 | -835.8 | -664.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -10.62 | 165.40 | 24.99 | 243.77 | 0.4648 | -558.0 | -459.1 | |
| 0.86 | 3.25 | 0.48 | 1.82 | -11.28 | 165.36 | 24.95 | 242.44 | 0.4685 | 931.4 | 789.8 | |
| 0.00 | 5.90 | 0.00 | 3.38 | -15.54 | 165.77 | 25.35 | 235.11 | 0.5050 | -369.0 | -113.5 | |
| 0.77 | 412.28 | 0.43 | 232.80 | -12.90 | 165.39 | 24.97 | 239.41 | 0.4800 | 797.2 | 482.4 | |
| 8.72 | -37.00 | 4.93 | -37.00 | -13.32 | 165.40 | 24.98 | 238.64 | 0.4833 | 1076.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -15.29 | 165.56 | 25.15 | 235.33 | 0.5005 | 646.0 | 594.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -15.69 | 165.51 | 25.10 | 234.60 | 0.5031 | -111.0 | -72.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -15.10 | 165.44 | 25.03 | 235.52 | 0.4974 | 337.0 | 241.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -12.47 | 165.11 | 24.69 | 239.95 | 0.4732 | 781.0 | 612.1 | |
| 0.77 | -37.00 | 0.43 | -37.00 | -13.20 | 165.12 | 24.70 | 238.60 | 0.4787 | 1090.1 | 999999 | |
| 1.03 | 4.28 | 0.57 | 2.39 | -11.58 | 164.89 | 24.48 | 241.43 | 0.4641 | 979.5 | 776.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -12.46 | 164.94 | 24.53 | 239.79 | 0.4710 | 128.0 | 145.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -21.42 | 166.15 | 25.74 | 226.45 | 0.5599 | 602.0 | 406.7 | |
| 66.72 | -37.00 | 37.71 | -37.00 | -14.05 | 164.98 | 24.56 | 236.90 | 0.4834 | 1351.9 | 999999 | |
| 1.28 | -37.00 | 0.73 | -37.00 | -14.73 | 164.89 | 24.47 | 235.61 | 0.4875 | 891.5 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -12.30 | 164.13 | 23.71 | 239.29 | 0.4590 | 280.0 | 218.0 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -9.73 | 163.68 | 23.27 | 244.05 | 0.4349 | -663.0 | -538.6 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -15.88 | 163.25 | 22.83 | 231.79 | 0.4770 | -644.0 | -369.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -11.62 | 162.78 | 22.37 | 239.22 | 0.4357 | -706.0 | -534.3 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -12.83 | 161.97 | 21.56 | 235.90 | 0.4346 | -690.0 | -544.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -9.31 | 161.39 | 20.97 | 242.64 | 0.3994 | -719.0 | -613.5 | |
| 0.00 | 3.08 | 0.00 | 1.71 | -14.91 | 161.68 | 21.27 | 231.61 | 0.4491 | -639.0 | -498.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -15.62 | 161.56 | 21.15 | 230.19 | 0.4542 | -790.0 | -638.6 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -12.00 | 161.19 | 20.78 | 236.61 | 0.4173 | -864.0 | -589.8 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -10.66 | 160.86 | 20.45 | 239.04 | 0.4021 | -924.0 | -711.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -14.69 | 161.17 | 20.76 | 231.35 | 0.4408 | -867.0 | -768.8 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -15.00 | 161.17 | 20.75 | 230.79 | 0.4436 | -612.0 | -604.1 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -17.45 | 161.34 | 20.92 | 226.79 | 0.4694 | -820.0 | -615.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -14.81 | 160.95 | 20.54 | 230.85 | 0.4393 | -959.0 | -842.3 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -17.16 | 160.84 | 20.43 | 226.59 | 0.4609 | -797.0 | -532.2 | |
| 0.00 | 2.74 | 0.00 | 1.46 | -8.76 | 159.98 | 19.57 | 242.35 | 0.3753 | -795.0 | -475.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -17.88 | 160.66 | 20.25 | 225.18 | 0.4662 | -764.0 | -594.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -13.60 | 160.13 | 19.71 | 232.01 | 0.4177 | -842.0 | -684.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -14.55 | 159.79 | 19.38 | 229.73 | 0.4226 | -564.0 | -509.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -11.71 | 159.37 | 18.95 | 234.84 | 0.3907 | -723.0 | -609.3 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -13.84 | 159.31 | 18.89 | 230.40 | 0.4098 | -687.0 | -607.5 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -13.65 | 158.84 | 18.43 | 230.08 | 0.4023 | -651.0 | -474.2 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -16.46 | 159.03 | 18.61 | 225.20 | 0.4333 | -974.0 | -842.5 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -18.37 | 159.10 | 18.68 | 222.18 | 0.4547 | -776.0 | -635.7 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -18.56 | 159.08 | 18.67 | 221.87 | 0.4566 | -787.0 | -720.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -16.74 | 158.86 | 18.45 | 224.47 | 0.4344 | -663.0 | -591.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -12.61 | 158.35 | 17.93 | 231.45 | 0.3859 | -944.0 | -740.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -17.77 | 158.70 | 18.29 | 222.54 | 0.4439 | -651.0 | -528.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.19 | 157.66 | 17.24 | 229.19 | 0.3830 | -804.0 | -703.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -13.36 | 156.68 | 16.27 | 227.21 | 0.3731 | -875.0 | -750.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.45 | 156.39 | 15.98 | 222.71 | 0.3929 | -915.0 | -691.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.67 | 156.28 | 15.87 | 215.80 | 0.4422 | -624.0 | -552.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -8.66 | 155.52 | 15.11 | 236.24 | 0.3114 | -749.0 | -521.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
