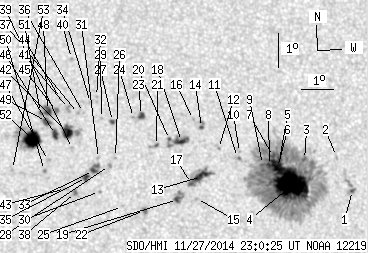

SDO HMI 2014-11-27 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.90 | 632.81 | 82.06 | 336.78 | 4.05 | 161.56 | 21.14 | 278.18 | 0.3649 | -150.7 | -169.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 9.92 | 0.61 | 5.42 | 3.43 | 165.30 | 24.89 | 275.32 | 0.4237 | 816.0 | 367.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 4.44 | 164.81 | 24.40 | 277.84 | 0.4175 | -550.0 | -351.7 | |
| 1.03 | 429.90 | 0.55 | 231.10 | 4.36 | 163.77 | 23.36 | 277.94 | 0.4009 | -489.0 | -398.1 | |
| 67.57 | -3.00 | 36.36 | -3.00 | 3.59 | 163.33 | 22.91 | 276.13 | 0.3925 | -1288.5 | 999999 | |
| 2.48 | -3.00 | 1.33 | -3.00 | 4.37 | 162.96 | 22.55 | 278.21 | 0.3880 | -946.2 | 999999 | |
| 14.28 | -3.00 | 7.66 | -3.00 | 4.13 | 162.89 | 22.48 | 277.62 | 0.3864 | -1274.6 | 999999 | |
| 2.05 | -3.00 | 1.10 | -3.00 | 4.46 | 162.77 | 22.36 | 278.50 | 0.3852 | -1068.2 | 999999 | |
| 1.63 | -3.00 | 0.87 | -3.00 | 4.19 | 162.64 | 22.22 | 277.86 | 0.3825 | -1281.9 | 999999 | |
| 0.26 | -3.00 | 0.14 | -3.00 | 4.23 | 162.41 | 22.00 | 278.01 | 0.3789 | -1057.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 4.59 | 161.69 | 21.28 | 279.23 | 0.3681 | -718.0 | -591.9 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 4.44 | 161.62 | 21.21 | 278.86 | 0.3667 | -722.0 | -707.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 4.71 | 161.03 | 20.61 | 279.84 | 0.3577 | -717.0 | -622.4 | |
| 7.61 | 23.95 | 4.02 | 12.63 | 3.89 | 160.47 | 20.05 | 277.73 | 0.3468 | 873.5 | 261.0 | |
| 0.77 | 4.19 | 0.41 | 2.22 | 5.34 | 160.51 | 20.10 | 281.84 | 0.3511 | -964.7 | -760.3 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 3.24 | 160.29 | 19.88 | 275.90 | 0.3428 | 761.0 | 597.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 5.58 | 160.27 | 19.85 | 282.65 | 0.3479 | -787.0 | -650.8 | |
| 1.03 | -13.00 | 0.54 | -13.00 | 3.68 | 160.15 | 19.73 | 277.24 | 0.3411 | 818.7 | 999999 | |
| 5.47 | 16.85 | 2.88 | 8.86 | 4.93 | 159.87 | 19.45 | 281.00 | 0.3395 | 976.3 | 676.2 | |
| 1.97 | 8.81 | 1.03 | 4.63 | 3.21 | 159.69 | 19.28 | 275.99 | 0.3330 | 974.5 | 340.5 | |
| 0.60 | -18.00 | 0.31 | -18.00 | 4.99 | 159.49 | 19.08 | 281.38 | 0.3336 | 763.1 | 999999 | |
| 0.51 | 3.34 | 0.27 | 1.75 | 4.82 | 159.08 | 18.66 | 281.08 | 0.3264 | -727.0 | -595.8 | |
| 0.60 | 2.91 | 0.31 | 1.52 | 2.90 | 158.66 | 18.24 | 275.28 | 0.3154 | 1024.1 | 823.5 | |
| 2.31 | 4.19 | 1.21 | 2.19 | 5.71 | 158.64 | 18.22 | 284.06 | 0.3222 | -1011.3 | -760.0 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 5.65 | 158.38 | 17.97 | 284.07 | 0.3179 | -700.0 | -547.3 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 3.02 | 157.97 | 17.56 | 275.87 | 0.3042 | 610.0 | 463.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 4.47 | 157.79 | 17.37 | 280.71 | 0.3043 | 634.0 | 471.8 | |
| 1.03 | 2.99 | 0.53 | 1.56 | 5.54 | 157.73 | 17.31 | 284.19 | 0.3069 | 947.6 | 745.2 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 4.24 | 157.60 | 17.18 | 280.04 | 0.3005 | 850.0 | 686.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 5.63 | 157.39 | 16.97 | 284.74 | 0.3017 | -733.0 | -641.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 3.47 | 157.27 | 16.86 | 277.63 | 0.2933 | 690.0 | 588.3 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 4.45 | 157.26 | 16.85 | 280.93 | 0.2956 | 614.0 | 556.6 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 6.29 | 157.25 | 16.84 | 286.95 | 0.3024 | 667.0 | 582.2 | |
| 1.97 | 6.93 | 1.02 | 3.59 | 4.09 | 157.10 | 16.68 | 279.83 | 0.2919 | 1016.4 | 797.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 6.11 | 157.06 | 16.65 | 286.56 | 0.2985 | 573.0 | 469.4 | |
| 2.22 | 4.02 | 1.15 | 2.08 | 3.89 | 156.87 | 16.46 | 279.24 | 0.2877 | 1111.7 | 893.8 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 5.81 | 156.83 | 16.42 | 285.79 | 0.2936 | 521.0 | 530.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 5.79 | 156.68 | 16.26 | 285.83 | 0.2909 | 820.0 | 686.4 | |
| 0.00 | 2.14 | 0.00 | 1.10 | 3.45 | 156.53 | 16.11 | 277.86 | 0.2809 | 1062.0 | 910.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 4.75 | 156.46 | 16.05 | 282.48 | 0.2835 | 669.0 | 626.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 7.42 | 156.52 | 16.10 | 291.33 | 0.2966 | 833.0 | 720.5 | |
| 0.00 | 3.08 | 0.00 | 1.59 | 5.94 | 156.37 | 15.96 | 286.61 | 0.2867 | 736.0 | 734.6 | |
| 8.21 | 16.25 | 4.24 | 8.39 | 5.22 | 156.32 | 15.91 | 284.23 | 0.2829 | 1147.2 | 689.6 | |
| 0.00 | 2.48 | 0.00 | 1.28 | 3.57 | 156.22 | 15.81 | 278.44 | 0.2761 | 862.0 | 591.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 6.23 | 156.13 | 15.72 | 287.86 | 0.2843 | 713.0 | 491.4 | |
| 0.00 | 2.57 | 0.00 | 1.32 | 5.88 | 156.00 | 15.59 | 286.78 | 0.2804 | 836.0 | 743.6 | |
| 3.25 | 5.05 | 1.67 | 2.60 | 5.17 | 155.95 | 15.54 | 284.34 | 0.2766 | 1167.9 | 895.0 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 4.40 | 155.71 | 15.30 | 281.76 | 0.2700 | 809.0 | 573.9 | |
| 3.93 | 6.42 | 2.03 | 3.30 | 5.88 | 155.72 | 15.31 | 287.06 | 0.2760 | 983.0 | 742.3 | |
| 3.08 | 5.13 | 1.59 | 2.64 | 5.56 | 155.68 | 15.27 | 285.95 | 0.2738 | 1160.6 | 864.0 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 4.10 | 155.59 | 15.17 | 280.76 | 0.2669 | 1035.0 | 911.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 5.82 | 155.50 | 15.09 | 287.07 | 0.2722 | 938.0 | 830.2 | |
| 19.93 | 43.02 | 10.23 | 22.07 | 5.03 | 155.24 | 14.82 | 284.44 | 0.2644 | 1230.0 | 479.1 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 4.14 | 154.60 | 14.19 | 281.59 | 0.2508 | 839.0 | 602.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
