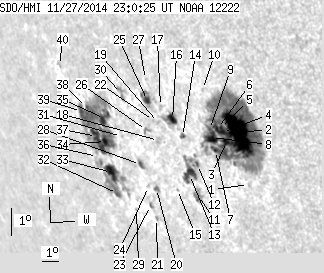

SDO HMI 2014-11-27 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.68 | 595.08 | 133.34 | 604.58 | -19.68 | 82.22 | -58.20 | 113.57 | 0.8730 | 206.6 | 5.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-27 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.80 | -21.05 | 85.87 | -54.54 | 116.04 | 0.8482 | 492.0 | 440.7 | |
| 53.03 | 310.24 | 48.34 | 284.97 | -19.40 | 86.19 | -54.23 | 114.24 | 0.8414 | 992.5 | 225.7 | |
| 3.51 | -2.00 | 3.27 | -2.00 | -19.70 | 85.38 | -55.03 | 114.35 | 0.8490 | 115.2 | 999999 | |
| 2.65 | -2.00 | 2.47 | -2.00 | -19.41 | 85.31 | -55.11 | 114.01 | 0.8490 | 343.9 | 999999 | |
| 1.20 | -2.00 | 1.11 | -2.00 | -19.26 | 85.28 | -55.14 | 113.82 | 0.8489 | 121.7 | 999999 | |
| 1.71 | -2.00 | 1.60 | -2.00 | -19.29 | 85.09 | -55.32 | 113.81 | 0.8505 | 239.1 | 999999 | |
| 1.28 | -2.00 | 1.22 | -2.00 | -20.00 | 84.61 | -55.81 | 114.48 | 0.8561 | -596.1 | 999999 | |
| 9.07 | -2.00 | 8.61 | -2.00 | -19.58 | 84.60 | -55.81 | 114.01 | 0.8553 | 323.0 | 999999 | |
| 0.26 | -2.00 | 0.24 | -2.00 | -19.33 | 84.62 | -55.79 | 113.73 | 0.8545 | -524.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -18.07 | 84.87 | -55.55 | 112.35 | 0.8497 | 436.0 | 359.7 | |
| 0.00 | 8.90 | 0.00 | 9.00 | -21.47 | 82.76 | -57.65 | 115.63 | 0.8740 | -598.0 | -561.2 | |
| 1.11 | 27.29 | 1.10 | 27.39 | -20.47 | 83.31 | -57.10 | 114.66 | 0.8676 | 519.9 | 50.8 | |
| 9.84 | -12.00 | 9.93 | -12.00 | -20.80 | 82.64 | -57.78 | 114.86 | 0.8736 | 460.3 | 999999 | |
| 1.37 | 2.91 | 1.36 | 2.89 | -19.59 | 82.93 | -57.48 | 113.58 | 0.8688 | 422.8 | 239.1 | |
| 0.00 | 0.86 | 0.00 | 0.89 | -21.30 | 81.59 | -58.82 | 115.14 | 0.8825 | 224.0 | 225.1 | |
| 5.39 | 14.71 | 5.38 | 14.74 | -19.06 | 82.64 | -57.77 | 112.91 | 0.8701 | 201.7 | -280.5 | |
| 0.00 | 1.45 | 0.00 | 1.47 | -18.66 | 82.15 | -58.26 | 112.34 | 0.8732 | -364.0 | -375.2 | |
| 0.00 | 3.93 | 0.00 | 4.09 | -19.74 | 81.40 | -59.01 | 113.38 | 0.8810 | -196.0 | -194.2 | |
| 0.00 | 1.37 | 0.00 | 1.40 | -19.17 | 81.74 | -58.67 | 112.82 | 0.8774 | -461.0 | -402.4 | |
| 1.37 | 3.16 | 1.49 | 3.44 | -21.29 | 80.27 | -60.14 | 114.81 | 0.8922 | 336.1 | 110.0 | |
| 0.00 | 1.63 | 0.00 | 1.82 | -22.27 | 79.57 | -60.84 | 115.71 | 0.8988 | -635.0 | -561.7 | |
| 0.00 | 0.77 | 0.00 | 0.79 | -19.11 | 81.47 | -58.95 | 112.69 | 0.8793 | -352.0 | -335.3 | |
| 0.68 | 1.80 | 0.77 | 2.01 | -21.86 | 79.48 | -60.93 | 115.24 | 0.8987 | -681.8 | -641.2 | |
| 0.00 | 1.11 | 0.00 | 1.23 | -21.24 | 79.79 | -60.62 | 114.64 | 0.8955 | 203.0 | 56.5 | |
| 3.76 | 11.46 | 3.87 | 11.78 | -18.48 | 81.46 | -58.95 | 111.99 | 0.8783 | -710.5 | -552.3 | |
| 0.00 | 3.76 | 0.00 | 3.97 | -19.44 | 80.84 | -59.57 | 112.91 | 0.8847 | -747.0 | -528.9 | |
| 0.00 | 0.60 | 0.00 | 0.61 | -17.82 | 81.70 | -58.71 | 111.30 | 0.8752 | -349.0 | -369.9 | |
| 1.80 | 3.08 | 1.97 | 3.38 | -20.54 | 79.75 | -60.66 | 113.87 | 0.8946 | -398.0 | -296.1 | |
| 0.00 | 0.94 | 0.00 | 1.09 | -22.01 | 78.43 | -61.99 | 115.16 | 0.9062 | -258.0 | -227.4 | |
| 0.00 | 7.10 | 0.00 | 7.62 | -18.29 | 79.95 | -60.46 | 111.44 | 0.8894 | -477.0 | -373.6 | |
| 0.00 | 0.68 | 0.00 | 0.76 | -19.66 | 79.09 | -61.32 | 112.77 | 0.8978 | -659.0 | -573.5 | |
| 2.14 | 53.89 | 2.55 | 64.03 | -21.51 | 77.49 | -62.93 | 114.43 | 0.9116 | -285.4 | -155.4 | |
| 11.12 | -32.00 | 13.15 | -32.00 | -20.84 | 77.58 | -62.83 | 113.72 | 0.9100 | -564.1 | 999999 | |
| 2.82 | 128.90 | 3.28 | 150.25 | -19.85 | 77.89 | -62.53 | 112.71 | 0.9065 | -901.0 | -147.2 | |
| 8.13 | -34.00 | 9.27 | -34.00 | -19.11 | 78.32 | -62.09 | 112.00 | 0.9024 | -682.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.13 | -20.34 | 76.97 | -63.45 | 113.06 | 0.9133 | 65.0 | 98.7 | |
| 8.13 | -34.00 | 9.61 | -34.00 | -19.70 | 77.37 | -63.05 | 112.45 | 0.9098 | -291.8 | 999999 | |
| 0.43 | -34.00 | 0.50 | -34.00 | -18.79 | 77.30 | -63.11 | 111.45 | 0.9090 | 381.2 | 999999 | |
| 1.88 | -34.00 | 2.25 | -34.00 | -18.92 | 76.86 | -63.55 | 111.51 | 0.9121 | 480.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 2.07 | -17.49 | 76.26 | -64.15 | 109.86 | 0.9144 | -462.0 | -313.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
