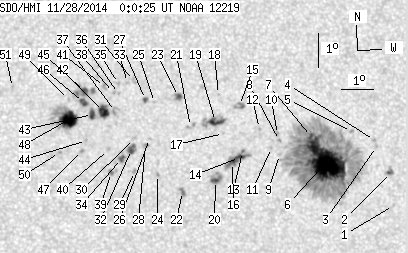

SDO HMI 2014-11-28 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.81 | 618.72 | 80.18 | 330.22 | 4.07 | 161.41 | 21.55 | 278.13 | 0.3715 | -131.7 | -170.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.56 | 2.41 | 165.45 | 25.58 | 272.86 | 0.4338 | 559.0 | 377.8 | |
| 1.45 | 4.45 | 0.80 | 2.44 | 3.38 | 165.37 | 25.51 | 275.13 | 0.4335 | 847.4 | 663.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 4.16 | 164.94 | 25.08 | 277.01 | 0.4277 | -605.0 | -465.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 4.34 | 164.88 | 25.02 | 277.45 | 0.4271 | -708.0 | -493.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 4.61 | 164.14 | 24.28 | 278.30 | 0.4159 | -633.0 | -504.6 | |
| 83.92 | 405.04 | 45.33 | 218.67 | 3.70 | 163.26 | 23.40 | 276.30 | 0.4005 | -1253.5 | -416.6 | |
| 1.88 | -6.00 | 1.01 | -6.00 | 4.47 | 162.84 | 22.98 | 278.36 | 0.3950 | -1045.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 4.37 | 161.81 | 21.94 | 278.42 | 0.3783 | -877.0 | -744.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 3.95 | 161.79 | 21.93 | 277.33 | 0.3773 | -357.0 | -329.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 4.54 | 161.75 | 21.89 | 278.91 | 0.3778 | -846.0 | -681.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 4.16 | 161.54 | 21.68 | 277.96 | 0.3737 | -777.0 | -610.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 4.73 | 161.18 | 21.32 | 279.61 | 0.3691 | -761.0 | -666.6 | |
| 0.43 | 18.48 | 0.23 | 9.78 | 4.05 | 160.62 | 20.76 | 277.97 | 0.3585 | 615.6 | 509.5 | |
| 3.93 | -13.00 | 2.08 | -13.00 | 3.87 | 160.52 | 20.66 | 277.51 | 0.3566 | 802.0 | 999999 | |
| 0.00 | 6.16 | 0.00 | 3.27 | 5.42 | 160.57 | 20.70 | 281.76 | 0.3611 | -700.0 | -778.3 | |
| 3.34 | -13.00 | 1.76 | -13.00 | 3.73 | 160.29 | 20.43 | 277.17 | 0.3526 | 973.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 4.59 | 160.03 | 20.17 | 279.71 | 0.3502 | -568.0 | -379.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 5.75 | 159.91 | 20.05 | 283.03 | 0.3517 | -789.0 | -640.9 | |
| 6.50 | 16.77 | 3.43 | 8.85 | 4.95 | 159.79 | 19.93 | 280.84 | 0.3473 | 927.6 | 624.8 | |
| 2.48 | 10.09 | 1.31 | 5.32 | 3.20 | 159.74 | 19.88 | 275.81 | 0.3428 | 902.0 | 107.3 | |
| 0.00 | 3.59 | 0.00 | 1.89 | 4.81 | 159.00 | 19.14 | 280.82 | 0.3341 | -552.0 | -676.9 | |
| 0.00 | 4.11 | 0.00 | 2.15 | 2.88 | 158.70 | 18.84 | 275.12 | 0.3252 | 958.0 | 755.9 | |
| 2.05 | 4.11 | 1.08 | 2.15 | 5.70 | 158.65 | 18.79 | 283.67 | 0.3313 | -1029.9 | -810.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 3.39 | 157.93 | 18.07 | 276.94 | 0.3133 | 834.0 | 661.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 5.53 | 157.89 | 18.03 | 283.66 | 0.3185 | 162.0 | 148.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 4.46 | 157.71 | 17.84 | 280.44 | 0.3120 | 765.0 | 466.7 | |
| 1.03 | 2.40 | 0.54 | 1.25 | 5.62 | 157.61 | 17.75 | 284.13 | 0.3143 | 865.7 | 659.9 | |
| 0.00 | 2.57 | 0.00 | 1.34 | 4.26 | 157.58 | 17.71 | 279.85 | 0.3093 | 851.0 | 651.4 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 3.49 | 157.22 | 17.35 | 277.51 | 0.3016 | 817.0 | 658.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 4.47 | 157.24 | 17.38 | 280.70 | 0.3044 | 666.0 | 495.5 | |
| 0.00 | 2.65 | 0.00 | 1.38 | 6.18 | 157.26 | 17.40 | 286.17 | 0.3109 | 534.0 | 468.3 | |
| 3.85 | 6.84 | 2.00 | 3.55 | 4.14 | 157.14 | 17.27 | 279.70 | 0.3018 | 970.2 | 710.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 6.13 | 157.07 | 17.21 | 286.15 | 0.3076 | 704.0 | 510.8 | |
| 1.88 | 3.93 | 0.98 | 2.04 | 3.88 | 156.82 | 16.96 | 278.98 | 0.2960 | 1076.6 | 849.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 6.10 | 156.79 | 16.93 | 286.30 | 0.3030 | 691.0 | 574.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 5.80 | 156.78 | 16.92 | 285.36 | 0.3016 | 581.0 | 427.5 | |
| 0.00 | 4.96 | 0.00 | 2.57 | 5.27 | 156.67 | 16.81 | 283.71 | 0.2977 | 670.0 | 613.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 5.83 | 156.63 | 16.76 | 285.59 | 0.2992 | 829.0 | 689.3 | |
| 0.68 | 4.19 | 0.35 | 2.17 | 3.46 | 156.50 | 16.64 | 277.72 | 0.2898 | 1012.9 | 752.9 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 4.15 | 156.42 | 16.56 | 280.10 | 0.2901 | 749.0 | 563.2 | |
| 0.00 | 2.99 | 0.00 | 1.55 | 6.01 | 156.35 | 16.49 | 286.41 | 0.2956 | 851.0 | 721.6 | |
| 8.13 | 19.16 | 4.21 | 9.91 | 5.27 | 156.30 | 16.44 | 284.00 | 0.2917 | 1105.3 | 727.6 | |
| 3.25 | -42.00 | 1.68 | -42.00 | 5.19 | 155.96 | 16.09 | 283.97 | 0.2858 | 1166.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 4.42 | 155.75 | 15.89 | 281.45 | 0.2798 | 896.0 | 677.7 | |
| 3.08 | 20.44 | 1.59 | 10.56 | 5.87 | 155.73 | 15.87 | 286.50 | 0.2849 | 961.6 | 686.7 | |
| 3.34 | -45.00 | 1.72 | -45.00 | 5.54 | 155.69 | 15.83 | 285.42 | 0.2829 | 1110.1 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 4.12 | 155.62 | 15.76 | 280.48 | 0.2767 | 1033.0 | 888.6 | |
| 19.59 | 41.49 | 10.08 | 21.34 | 5.04 | 155.21 | 15.35 | 284.08 | 0.2731 | 1224.3 | 498.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 5.64 | 155.23 | 15.37 | 286.17 | 0.2758 | 761.0 | 559.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 4.07 | 154.91 | 15.05 | 280.73 | 0.2648 | 863.0 | 766.3 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 6.00 | 153.52 | 13.66 | 289.40 | 0.2501 | 815.0 | 626.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
