SDO HMI 2014-11-28 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.47 | 288.40 | 32.29 | 157.89 | -18.39 | 123.70 | -15.61 | 143.33 | 0.4248 | 353.4 | 257.2 | |
|
previous
or next observation for the same group /

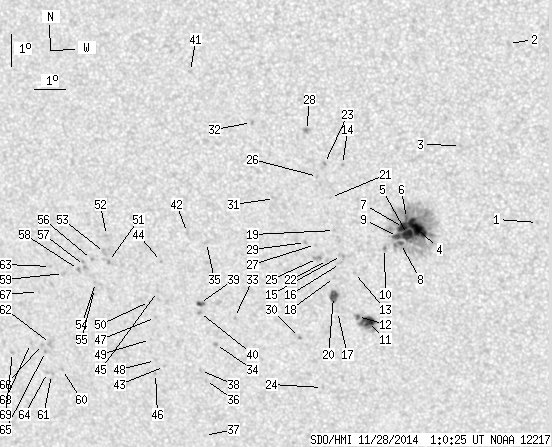

back to the solar disc SDO HMI 2014-11-28 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.45 | 130.10 | -9.21 | 154.55 | 0.3571 | 757.0 | 568.0 | |
| 0.00 | 2.05 | 0.00 | 1.06 | -11.94 | 129.45 | -9.86 | 143.75 | 0.2847 | 864.0 | 610.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -15.07 | 127.82 | -11.49 | 145.62 | 0.3423 | 805.0 | 540.0 | |
| 19.08 | 170.42 | 10.26 | 91.68 | -17.65 | 126.26 | -13.05 | 146.41 | 0.3907 | 1406.7 | 439.1 | |
| 8.90 | -4.00 | 4.79 | -4.00 | -17.84 | 125.96 | -13.35 | 146.10 | 0.3959 | 1080.8 | 999999 | |
| 2.40 | -4.00 | 1.29 | -4.00 | -17.34 | 125.96 | -13.35 | 145.35 | 0.3893 | 1071.8 | 999999 | |
| 6.33 | -4.00 | 3.41 | -4.00 | -17.62 | 125.85 | -13.46 | 145.55 | 0.3940 | 1160.4 | 999999 | |
| 1.54 | -4.00 | 0.83 | -4.00 | -18.12 | 125.71 | -13.60 | 146.04 | 0.4018 | 787.1 | 999999 | |
| 2.40 | -4.00 | 1.29 | -4.00 | -17.90 | 125.63 | -13.68 | 145.56 | 0.3996 | 777.2 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -18.28 | 125.19 | -14.13 | 145.27 | 0.4086 | 784.0 | 621.7 | |
| 10.69 | 22.24 | 5.91 | 12.29 | -20.63 | 124.42 | -14.90 | 147.15 | 0.4454 | 1028.1 | 577.0 | |
| 1.11 | -11.00 | 0.61 | -11.00 | -20.44 | 124.11 | -15.20 | 146.37 | 0.4456 | 814.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.04 | 124.15 | -15.16 | 144.51 | 0.4277 | 808.0 | 658.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -15.67 | 124.06 | -15.26 | 138.95 | 0.3875 | 917.0 | 758.0 | |
| 0.00 | 3.34 | 0.00 | 1.82 | -18.51 | 123.78 | -15.53 | 143.08 | 0.4245 | 803.0 | 755.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -18.76 | 123.72 | -15.59 | 143.35 | 0.4282 | 740.0 | 578.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.28 | 123.47 | -15.84 | 145.09 | 0.4493 | 562.0 | 434.0 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -19.21 | 123.48 | -15.83 | 143.59 | 0.4359 | 802.0 | 644.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -17.73 | 123.62 | -15.69 | 141.61 | 0.4165 | 777.0 | 524.9 | |
| 5.65 | 7.61 | 3.12 | 4.20 | -19.81 | 123.39 | -15.92 | 144.29 | 0.4441 | 981.0 | 726.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -16.70 | 123.59 | -15.72 | 139.88 | 0.4045 | 735.0 | 648.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -18.67 | 123.31 | -16.00 | 142.51 | 0.4310 | 780.0 | 631.2 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -15.64 | 123.48 | -15.83 | 137.88 | 0.3933 | 890.0 | 706.7 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -22.73 | 122.69 | -16.62 | 146.99 | 0.4863 | 576.0 | 418.8 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -18.61 | 122.99 | -16.32 | 141.88 | 0.4333 | 874.0 | 831.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -16.05 | 123.23 | -16.09 | 138.14 | 0.4007 | 743.0 | 617.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.17 | 122.97 | -16.34 | 141.18 | 0.4283 | 702.0 | 641.7 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -14.63 | 122.99 | -16.32 | 135.15 | 0.3873 | 1046.0 | 872.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.11 | 122.65 | -16.66 | 140.55 | 0.4308 | 762.0 | 610.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.12 | 122.12 | -17.19 | 144.06 | 0.4717 | -590.0 | -465.4 | |
| 0.00 | 2.31 | 0.00 | 1.26 | -16.74 | 121.78 | -17.53 | 136.92 | 0.4242 | 668.0 | 431.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -14.39 | 121.25 | -18.06 | 131.88 | 0.4051 | 747.0 | 722.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -20.50 | 120.03 | -19.28 | 140.10 | 0.4842 | -721.0 | -599.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.36 | 119.27 | -20.04 | 140.26 | 0.5013 | -946.0 | -763.3 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -18.13 | 119.40 | -19.91 | 135.66 | 0.4650 | 767.0 | 580.2 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -22.53 | 118.76 | -20.55 | 141.14 | 0.5190 | 530.0 | 455.3 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -24.32 | 118.42 | -20.89 | 142.99 | 0.5418 | -617.0 | -608.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -22.20 | 118.64 | -20.68 | 140.55 | 0.5166 | 711.0 | 562.0 | |
| 1.37 | 4.19 | 0.78 | 2.38 | -20.06 | 118.92 | -20.39 | 137.93 | 0.4906 | -972.7 | -807.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -20.34 | 118.88 | -20.43 | 138.30 | 0.4941 | -948.0 | -748.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -12.84 | 119.42 | -19.89 | 126.21 | 0.4129 | 655.0 | 506.0 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -17.82 | 118.81 | -20.50 | 134.35 | 0.4683 | 369.0 | 325.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -22.09 | 117.42 | -21.89 | 138.84 | 0.5271 | -714.0 | -528.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -18.74 | 117.82 | -21.49 | 134.51 | 0.4885 | -795.0 | -652.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -19.69 | 117.55 | -21.76 | 135.61 | 0.5009 | -636.0 | -507.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -22.31 | 117.07 | -22.24 | 138.72 | 0.5329 | -629.0 | -522.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -20.52 | 117.36 | -21.95 | 136.58 | 0.5114 | -779.0 | -530.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -21.89 | 117.14 | -22.17 | 138.24 | 0.5278 | -695.0 | -527.6 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -21.22 | 117.08 | -22.23 | 137.23 | 0.5215 | -690.0 | -585.7 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -20.01 | 117.24 | -22.08 | 135.68 | 0.5076 | -682.0 | -507.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -18.75 | 116.03 | -23.28 | 132.33 | 0.5084 | -853.0 | -740.6 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -17.94 | 116.08 | -23.23 | 131.11 | 0.5002 | -722.0 | -636.4 | |
| 0.00 | 3.34 | 0.00 | 1.91 | -18.47 | 115.93 | -23.38 | 131.78 | 0.5068 | -865.0 | -729.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -19.42 | 115.48 | -23.83 | 132.72 | 0.5207 | -751.0 | -592.1 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -19.61 | 115.42 | -23.90 | 132.93 | 0.5232 | -771.0 | -666.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -18.69 | 115.46 | -23.86 | 131.58 | 0.5143 | -844.0 | -752.3 | |
| 0.00 | 3.42 | 0.00 | 1.98 | -18.89 | 115.19 | -24.12 | 131.57 | 0.5190 | -585.0 | -670.0 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -19.01 | 114.96 | -24.35 | 131.52 | 0.5227 | -926.0 | -721.6 | |
| 0.00 | 1.88 | 0.00 | 1.10 | -19.14 | 114.42 | -24.89 | 131.13 | 0.5299 | -795.0 | -678.1 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -22.21 | 113.84 | -25.48 | 134.90 | 0.5643 | -688.0 | -557.1 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -22.38 | 113.41 | -25.90 | 134.68 | 0.5702 | -510.0 | -418.6 | |
| 0.00 | 4.19 | 0.00 | 2.50 | -21.38 | 113.57 | -25.74 | 133.47 | 0.5594 | -819.0 | -583.4 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -18.93 | 114.01 | -25.30 | 130.36 | 0.5327 | -776.0 | -610.1 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -22.32 | 113.28 | -26.03 | 134.46 | 0.5709 | -597.0 | -511.1 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -21.64 | 113.35 | -25.96 | 133.59 | 0.5641 | -786.0 | -700.6 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -21.41 | 113.28 | -26.03 | 133.22 | 0.5627 | -628.0 | -526.6 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -19.72 | 113.46 | -25.86 | 130.97 | 0.5458 | -697.0 | -669.0 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -21.39 | 112.86 | -26.45 | 132.75 | 0.5669 | -691.0 | -553.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -21.68 | 112.16 | -27.15 | 132.46 | 0.5770 | -642.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
