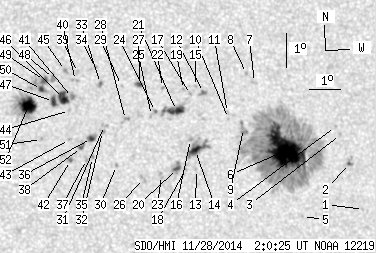

SDO HMI 2014-11-28 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.12 | 626.59 | 69.69 | 337.39 | 4.03 | 161.59 | 22.82 | 277.66 | 0.3918 | -130.7 | -191.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.43 | 1.93 | 165.83 | 27.07 | 271.74 | 0.4569 | 724.0 | 519.9 | |
| 0.86 | 4.36 | 0.47 | 2.42 | 3.30 | 165.40 | 26.64 | 274.79 | 0.4510 | 802.4 | 588.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 4.16 | 165.13 | 26.37 | 276.76 | 0.4479 | -433.0 | -374.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 4.40 | 164.97 | 26.21 | 277.33 | 0.4459 | -431.0 | -391.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 1.75 | 163.81 | 25.05 | 271.38 | 0.4252 | -729.0 | -599.9 | |
| 72.04 | 417.09 | 39.26 | 227.16 | 3.70 | 163.31 | 24.54 | 276.10 | 0.4187 | -1278.2 | -416.1 | |
| 0.00 | 2.40 | 0.00 | 1.30 | 5.73 | 162.37 | 23.61 | 281.27 | 0.4081 | -646.0 | -496.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 6.00 | 162.13 | 23.36 | 282.03 | 0.4050 | -719.0 | -529.4 | |
| 0.00 | 6.50 | 0.00 | 3.51 | 4.37 | 161.96 | 23.20 | 278.07 | 0.3985 | -829.0 | -827.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 4.67 | 161.49 | 22.73 | 278.98 | 0.3916 | -777.0 | -631.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 4.85 | 161.47 | 22.70 | 279.44 | 0.3915 | -294.0 | -409.5 | |
| 0.60 | 3.25 | 0.32 | 1.74 | 5.45 | 160.72 | 21.95 | 281.29 | 0.3812 | -885.6 | -746.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 3.17 | 160.42 | 21.66 | 275.35 | 0.3718 | 683.0 | 466.1 | |
| 6.07 | 20.02 | 3.24 | 10.68 | 3.73 | 160.40 | 21.64 | 276.87 | 0.3723 | 905.8 | 323.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 5.63 | 160.47 | 21.71 | 281.87 | 0.3777 | -641.0 | -567.6 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 4.06 | 160.25 | 21.49 | 277.79 | 0.3705 | -176.0 | -34.5 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 5.39 | 160.30 | 21.54 | 281.33 | 0.3744 | -773.0 | -591.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 3.17 | 160.07 | 21.31 | 275.44 | 0.3661 | 748.0 | 649.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 5.54 | 160.08 | 21.32 | 281.84 | 0.3713 | -758.0 | -652.4 | |
| 1.97 | 7.87 | 1.04 | 4.18 | 3.20 | 159.82 | 21.05 | 275.58 | 0.3620 | 793.4 | 184.3 | |
| 8.38 | 14.54 | 4.46 | 7.73 | 4.92 | 159.84 | 21.07 | 280.28 | 0.3657 | 885.7 | 644.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 5.61 | 159.42 | 20.65 | 282.35 | 0.3609 | 606.0 | 557.4 | |
| 0.00 | 3.25 | 0.00 | 1.72 | 3.00 | 159.31 | 20.54 | 275.13 | 0.3534 | 595.0 | 670.6 | |
| 0.34 | 1.20 | 0.18 | 0.63 | 4.90 | 159.17 | 20.40 | 280.52 | 0.3549 | -686.2 | -614.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 4.78 | 159.04 | 20.27 | 280.25 | 0.3525 | -765.0 | -661.6 | |
| 0.00 | 3.51 | 0.00 | 1.85 | 2.92 | 158.74 | 19.97 | 275.01 | 0.3440 | 1012.0 | 726.8 | |
| 1.80 | 3.59 | 0.95 | 1.90 | 5.70 | 158.69 | 19.93 | 283.02 | 0.3496 | -1006.1 | -774.1 | |
| 0.00 | 2.57 | 0.00 | 1.35 | 4.67 | 158.21 | 19.45 | 280.31 | 0.3388 | -752.0 | -672.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 5.68 | 158.12 | 19.36 | 283.29 | 0.3404 | -638.0 | -498.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 3.31 | 157.89 | 19.13 | 276.39 | 0.3307 | 702.0 | 587.0 | |
| 0.00 | 2.48 | 0.00 | 1.30 | 4.50 | 157.55 | 18.79 | 280.12 | 0.3276 | 609.0 | 594.6 | |
| 0.00 | 2.40 | 0.00 | 1.25 | 4.32 | 157.48 | 18.72 | 279.61 | 0.3260 | 684.0 | 602.7 | |
| 0.34 | 2.48 | 0.18 | 1.30 | 5.74 | 157.46 | 18.70 | 283.91 | 0.3301 | 808.5 | 653.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 6.22 | 157.32 | 18.56 | 285.41 | 0.3297 | 653.0 | 574.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 3.55 | 157.15 | 18.39 | 277.38 | 0.3189 | 718.0 | 658.7 | |
| 2.22 | 5.82 | 1.16 | 3.04 | 4.12 | 157.13 | 18.37 | 279.14 | 0.3198 | 995.6 | 775.7 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 3.50 | 156.96 | 18.20 | 277.27 | 0.3156 | 781.0 | 675.7 | |
| 1.11 | 3.42 | 0.58 | 1.78 | 3.85 | 156.81 | 18.05 | 278.45 | 0.3139 | 1019.2 | 845.0 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 6.08 | 156.75 | 17.99 | 285.41 | 0.3200 | 500.0 | 439.5 | |
| 0.00 | 2.74 | 0.00 | 1.43 | 5.84 | 156.68 | 17.92 | 284.74 | 0.3179 | 586.0 | 610.7 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 5.34 | 156.57 | 17.81 | 283.26 | 0.3143 | 875.0 | 767.4 | |
| 0.60 | 2.05 | 0.31 | 1.07 | 3.47 | 156.46 | 17.70 | 277.37 | 0.3074 | 978.4 | 857.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 4.09 | 156.44 | 17.68 | 279.39 | 0.3084 | 920.0 | 734.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 4.95 | 156.47 | 17.70 | 282.12 | 0.3113 | 790.0 | 640.2 | |
| 0.00 | 2.22 | 0.00 | 1.16 | 6.14 | 156.38 | 17.62 | 285.90 | 0.3143 | 932.0 | 793.0 | |
| 8.47 | 10.87 | 4.41 | 5.66 | 5.31 | 156.29 | 17.53 | 283.37 | 0.3096 | 1090.0 | 712.1 | |
| 3.59 | 4.88 | 1.87 | 2.53 | 5.22 | 155.98 | 17.21 | 283.31 | 0.3042 | 1135.9 | 879.6 | |
| 0.00 | 3.59 | 0.00 | 1.87 | 5.90 | 156.00 | 17.24 | 285.47 | 0.3072 | 832.0 | 643.0 | |
| 2.22 | 18.99 | 1.16 | 9.86 | 5.85 | 155.72 | 16.95 | 285.52 | 0.3024 | 969.3 | 753.6 | |
| 2.14 | -49.00 | 1.11 | -49.00 | 5.58 | 155.61 | 16.85 | 284.74 | 0.2997 | 1124.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 4.10 | 155.57 | 16.81 | 279.85 | 0.2941 | 868.0 | 722.3 | |
| 17.37 | 42.86 | 8.99 | 22.17 | 5.11 | 155.20 | 16.43 | 283.50 | 0.2911 | 1239.7 | 539.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
