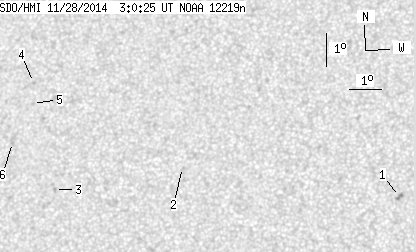

SDO HMI 2014-11-28 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.24 | 0.00 | 4.93 | 14.24 | 121.26 | -16.95 | 49.64 | 0.3650 | -802.2 | -715.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 1.58 | 13.05 | 128.84 | -9.38 | 37.82 | 0.2600 | -1092.0 | -886.2 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 13.91 | 122.02 | -16.20 | 50.95 | 0.3502 | -535.0 | -577.6 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 13.22 | 117.97 | -20.25 | 58.26 | 0.3978 | -938.0 | -767.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 16.47 | 116.96 | -21.26 | 52.83 | 0.4382 | -736.0 | -634.4 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 15.83 | 117.00 | -21.22 | 54.02 | 0.4321 | -809.0 | -547.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 14.64 | 116.46 | -21.75 | 57.02 | 0.4292 | -703.0 | -577.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
