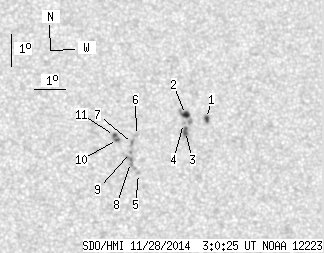

SDO HMI 2014-11-28 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.42 | 36.45 | 5.01 | 19.33 | 17.60 | 151.42 | 13.21 | 322.35 | 0.3577 | -74.2 | -189.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 2.91 | 0.96 | 1.56 | 18.13 | 153.03 | 14.81 | 320.12 | 0.3805 | 882.7 | 698.2 | |
| 3.34 | 9.24 | 1.78 | 4.93 | 18.26 | 152.36 | 14.15 | 321.60 | 0.3753 | 906.3 | 680.4 | |
| 2.48 | 4.19 | 1.32 | 2.23 | 17.74 | 152.32 | 14.10 | 320.75 | 0.3684 | 1035.7 | 768.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.98 | 152.27 | 14.06 | 321.28 | 0.3710 | 687.0 | 615.9 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 16.45 | 150.73 | 12.51 | 321.62 | 0.3362 | -634.0 | -559.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.62 | 150.75 | 12.53 | 323.75 | 0.3512 | -284.0 | -245.6 | |
| 0.00 | 3.25 | 0.00 | 1.72 | 17.38 | 150.60 | 12.39 | 323.62 | 0.3467 | -740.0 | -676.2 | |
| 0.00 | 6.42 | 0.00 | 3.38 | 16.79 | 150.50 | 12.28 | 322.77 | 0.3382 | -745.0 | -737.8 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 17.10 | 150.52 | 12.30 | 323.30 | 0.3423 | -825.0 | -677.1 | |
| 0.77 | 4.96 | 0.41 | 2.62 | 17.50 | 150.13 | 11.92 | 324.87 | 0.3438 | -1165.9 | -936.1 | |
| 1.03 | -10.00 | 0.54 | -10.00 | 17.63 | 150.05 | 11.83 | 325.28 | 0.3446 | -989.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
