SDO HMI 2014-11-28 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.73 | 633.74 | 55.81 | 368.84 | -13.73 | 165.22 | 28.10 | 240.67 | 0.5270 | 510.1 | 351.8 | |
|
previous
or next observation for the same group /

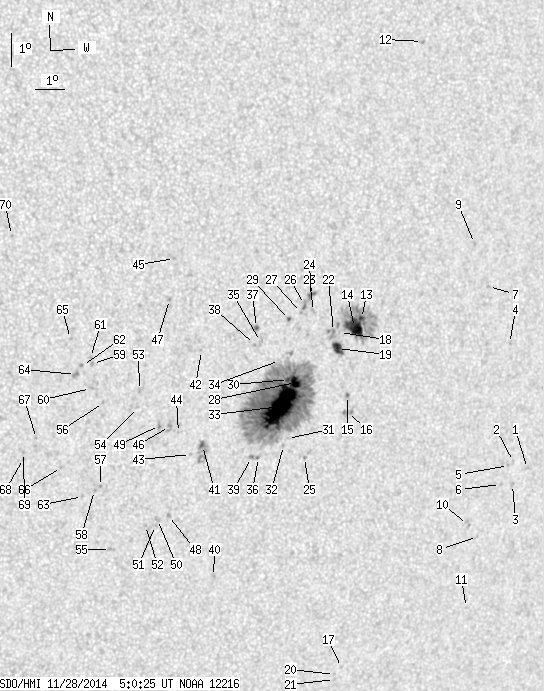

back to the solar disc SDO HMI 2014-11-28 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.28 | -16.14 | 174.33 | 37.20 | 243.09 | 0.6537 | 548.0 | 394.5 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -15.92 | 173.74 | 36.61 | 243.09 | 0.6455 | 556.0 | 378.0 | |
| 0.00 | 2.05 | 0.00 | 1.34 | -16.63 | 173.85 | 36.73 | 242.13 | 0.6506 | 531.0 | 378.5 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -12.29 | 172.92 | 35.80 | 248.06 | 0.6184 | 326.0 | 340.6 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -16.04 | 173.57 | 36.45 | 242.82 | 0.6442 | 713.0 | 625.9 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -16.63 | 173.39 | 36.27 | 241.87 | 0.6451 | 596.0 | 478.7 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -10.55 | 171.89 | 34.77 | 250.31 | 0.5977 | 705.0 | 516.1 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -18.24 | 172.87 | 35.75 | 239.27 | 0.6479 | 481.0 | 412.1 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -9.24 | 171.23 | 34.10 | 252.13 | 0.5837 | 725.0 | 623.3 | |
| 0.00 | 3.08 | 0.00 | 1.98 | -17.86 | 172.40 | 35.28 | 239.51 | 0.6403 | 539.0 | 614.6 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -20.49 | 173.02 | 35.90 | 236.28 | 0.6627 | 471.0 | 440.1 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -3.18 | 168.95 | 31.83 | 261.99 | 0.5339 | 749.0 | 581.7 | |
| 1.71 | 82.06 | 1.01 | 48.30 | -11.45 | 167.45 | 30.33 | 246.32 | 0.5426 | 800.8 | 284.2 | |
| 18.14 | -13.00 | 10.67 | -13.00 | -11.72 | 167.24 | 30.12 | 245.71 | 0.5412 | 983.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -13.80 | 167.27 | 30.14 | 242.22 | 0.5534 | 720.0 | 552.0 | |
| 0.00 | 4.96 | 0.00 | 2.96 | -14.32 | 167.34 | 30.22 | 241.42 | 0.5575 | -299.0 | -180.5 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -22.35 | 168.71 | 31.59 | 230.64 | 0.6290 | 531.0 | 387.2 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -11.87 | 166.73 | 29.61 | 245.12 | 0.5352 | 808.0 | 698.4 | |
| 7.19 | 10.35 | 4.22 | 6.07 | -12.36 | 166.72 | 29.60 | 244.27 | 0.5378 | 917.9 | 683.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -22.57 | 168.51 | 31.39 | 230.18 | 0.6285 | 727.0 | 573.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -22.73 | 168.55 | 31.43 | 229.99 | 0.6302 | 493.0 | 456.9 | |
| 0.00 | 9.41 | 0.00 | 5.50 | -11.84 | 166.52 | 29.40 | 245.03 | 0.5321 | 897.0 | 769.5 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -11.22 | 165.76 | 28.64 | 245.58 | 0.5184 | 712.0 | 585.7 | |
| 0.00 | 4.88 | 0.00 | 2.81 | -10.74 | 165.64 | 28.52 | 246.38 | 0.5141 | 724.0 | 679.1 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -15.69 | 166.03 | 28.91 | 238.18 | 0.5499 | -773.0 | -657.5 | |
| 0.00 | 3.08 | 0.00 | 1.77 | -11.01 | 165.43 | 28.31 | 245.74 | 0.5126 | 581.0 | 584.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -11.25 | 165.35 | 28.23 | 245.24 | 0.5129 | 923.0 | 762.0 | |
| 7.44 | 415.44 | 4.33 | 241.27 | -13.38 | 165.39 | 28.27 | 241.51 | 0.5264 | 1068.5 | 484.4 | |
| 0.51 | 1.37 | 0.29 | 0.79 | -11.45 | 164.96 | 27.84 | 244.58 | 0.5088 | 878.5 | 798.9 | |
| 1.45 | -28.00 | 0.84 | -28.00 | -13.28 | 165.14 | 28.02 | 241.47 | 0.5225 | 1120.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -15.10 | 165.35 | 28.23 | 238.58 | 0.5373 | 622.0 | 503.9 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -15.31 | 165.24 | 28.12 | 238.13 | 0.5374 | 596.0 | 424.4 | |
| 57.33 | -28.00 | 33.33 | -28.00 | -14.11 | 164.97 | 27.85 | 239.91 | 0.5257 | 1377.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -12.70 | 164.76 | 27.64 | 242.19 | 0.5137 | 242.0 | 231.7 | |
| 0.00 | 3.51 | 0.00 | 2.00 | -12.11 | 164.04 | 26.92 | 242.66 | 0.5004 | 463.0 | 388.0 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -15.67 | 164.42 | 27.30 | 236.82 | 0.5298 | 797.0 | 566.0 | |
| 0.68 | 2.14 | 0.39 | 1.22 | -11.68 | 163.86 | 26.74 | 243.30 | 0.4953 | -795.5 | -654.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -12.20 | 163.85 | 26.73 | 242.34 | 0.4984 | 707.0 | 637.3 | |
| 0.00 | 2.40 | 0.00 | 1.39 | -15.67 | 164.18 | 27.06 | 236.60 | 0.5268 | 846.0 | 675.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -19.38 | 163.45 | 26.33 | 230.06 | 0.5478 | -678.0 | -575.9 | |
| 1.28 | 15.40 | 0.73 | 8.82 | -15.28 | 162.45 | 25.33 | 235.60 | 0.5022 | -490.2 | -155.3 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -12.36 | 162.08 | 24.96 | 240.47 | 0.4757 | -743.0 | -569.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -15.55 | 162.08 | 24.96 | 234.76 | 0.4997 | -599.0 | -456.7 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -14.87 | 161.59 | 24.47 | 235.43 | 0.4881 | -605.0 | -467.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -9.57 | 160.94 | 23.82 | 244.98 | 0.4414 | -701.0 | -587.5 | |
| 0.00 | 5.22 | 0.00 | 2.95 | -14.68 | 161.26 | 24.14 | 235.42 | 0.4825 | -1035.0 | -728.9 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -10.80 | 160.88 | 23.76 | 242.37 | 0.4485 | -818.0 | -632.2 | |
| 0.00 | 2.22 | 0.00 | 1.28 | -17.44 | 161.59 | 24.47 | 231.11 | 0.5097 | -735.0 | -533.3 | |
| 0.00 | 2.74 | 0.00 | 1.54 | -14.64 | 160.92 | 23.80 | 235.12 | 0.4780 | -909.0 | -749.5 | |
| 0.00 | 2.74 | 0.00 | 1.57 | -17.56 | 161.23 | 24.11 | 230.53 | 0.5066 | -634.0 | -578.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -17.75 | 161.19 | 24.07 | 230.18 | 0.5077 | -632.0 | -531.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -17.74 | 160.85 | 23.73 | 229.80 | 0.5038 | -746.0 | -594.9 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -13.56 | 160.14 | 23.02 | 236.24 | 0.4592 | -611.0 | -528.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -14.08 | 160.16 | 23.04 | 235.30 | 0.4637 | -664.0 | -546.2 | |
| 0.00 | 2.99 | 0.00 | 1.71 | -18.49 | 159.76 | 22.64 | 227.36 | 0.4984 | -702.0 | -529.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.92 | 158.99 | 21.87 | 234.25 | 0.4474 | -811.0 | -600.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -16.51 | 159.17 | 22.05 | 229.85 | 0.4729 | -938.0 | -777.2 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -16.63 | 158.99 | 21.87 | 229.42 | 0.4719 | -768.0 | -628.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -12.72 | 158.52 | 21.40 | 236.00 | 0.4311 | -820.0 | -702.2 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -13.49 | 158.52 | 21.40 | 234.51 | 0.4377 | -792.0 | -674.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.54 | 158.44 | 21.32 | 236.26 | 0.4285 | -840.0 | -714.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -12.78 | 158.20 | 21.08 | 235.49 | 0.4274 | -851.0 | -698.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -16.82 | 158.61 | 21.49 | 228.64 | 0.4692 | -757.0 | -659.2 | |
| 0.00 | 3.08 | 0.00 | 1.69 | -13.05 | 158.00 | 20.87 | 234.70 | 0.4271 | -952.0 | -840.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -11.95 | 157.74 | 20.62 | 236.60 | 0.4145 | -578.0 | -518.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.91 | 157.82 | 20.69 | 229.16 | 0.4511 | -797.0 | -635.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -15.01 | 156.91 | 19.78 | 229.55 | 0.4315 | -845.0 | -678.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.62 | 156.54 | 19.42 | 227.92 | 0.4332 | -773.0 | -671.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.43 | 156.52 | 19.40 | 228.23 | 0.4312 | -962.0 | -812.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -8.83 | 155.66 | 18.53 | 241.03 | 0.3606 | -678.0 | -587.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
