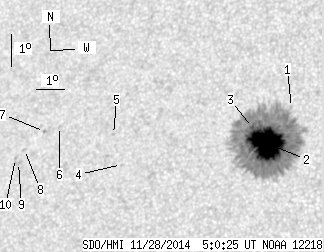

SDO HMI 2014-11-28 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.16 | 381.04 | 41.87 | 218.61 | 16.18 | 110.42 | -26.71 | 58.91 | 0.5058 | -1092.5 | -341.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.59 | 17.29 | 111.33 | -25.79 | 56.19 | 0.5020 | -53.0 | -90.4 | |
| 70.94 | 371.03 | 40.59 | 212.45 | 16.17 | 110.64 | -26.49 | 58.78 | 0.5029 | -1436.4 | -371.6 | |
| 2.22 | -2.00 | 1.28 | -2.00 | 16.66 | 110.08 | -27.04 | 58.40 | 0.5134 | -567.4 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 15.49 | 105.64 | -31.48 | 63.68 | 0.5637 | 718.0 | 631.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 16.40 | 105.19 | -31.93 | 62.47 | 0.5744 | 665.0 | 566.9 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 16.63 | 103.15 | -33.97 | 63.35 | 0.6013 | 658.0 | 582.2 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 16.47 | 102.63 | -34.50 | 63.90 | 0.6071 | 698.0 | 635.4 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 15.91 | 101.99 | -35.14 | 65.11 | 0.6124 | 683.0 | 569.3 | |
| 0.00 | 2.91 | 0.00 | 1.82 | 15.51 | 101.84 | -35.28 | 65.81 | 0.6125 | 678.0 | 486.8 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 15.63 | 101.70 | -35.42 | 65.69 | 0.6147 | 500.0 | 423.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
