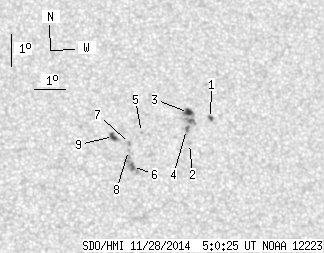

SDO HMI 2014-11-28 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 38.17 | 4.78 | 20.33 | 17.53 | 151.47 | 14.35 | 319.99 | 0.3687 | -41.2 | 13.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 05:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 1.97 | 0.60 | 1.06 | 18.08 | 153.19 | 16.07 | 317.81 | 0.3934 | 887.2 | 784.1 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 17.31 | 152.44 | 15.32 | 317.72 | 0.3765 | 743.0 | 616.7 | |
| 3.51 | 11.64 | 1.88 | 6.25 | 18.27 | 152.49 | 15.37 | 319.37 | 0.3882 | 966.5 | 846.1 | |
| 0.00 | 3.85 | 0.00 | 2.06 | 17.74 | 152.38 | 15.26 | 318.62 | 0.3809 | 1027.0 | 744.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 17.66 | 150.93 | 13.81 | 321.22 | 0.3647 | -635.0 | -454.6 | |
| 1.54 | 10.53 | 0.81 | 5.56 | 16.62 | 150.56 | 13.44 | 320.00 | 0.3481 | -1089.6 | -795.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 17.32 | 150.52 | 13.40 | 321.42 | 0.3563 | -855.0 | -673.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 17.11 | 150.47 | 13.35 | 321.12 | 0.3532 | -578.0 | -467.2 | |
| 2.82 | 5.39 | 1.49 | 2.85 | 17.54 | 150.03 | 12.91 | 322.84 | 0.3541 | -1054.9 | -726.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
