SDO HMI 2014-11-28 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.01 | 588.96 | 56.54 | 346.56 | -13.68 | 165.29 | 29.26 | 241.71 | 0.5417 | 551.3 | 353.6 | |
|
previous
or next observation for the same group /

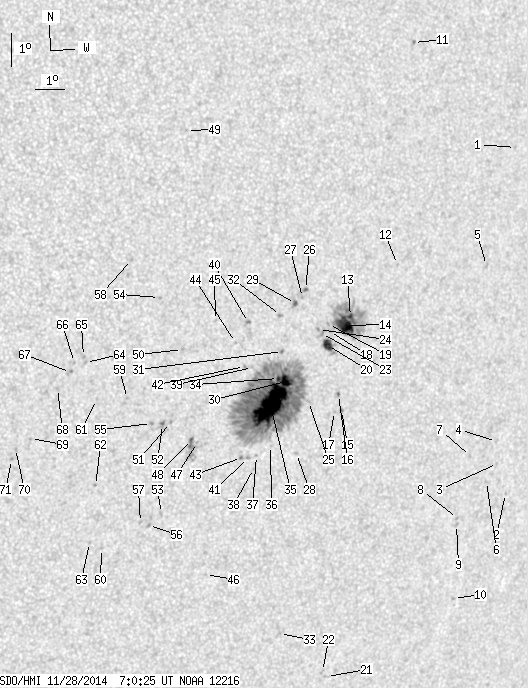

back to the solar disc SDO HMI 2014-11-28 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.80 | -6.45 | 172.88 | 36.85 | 257.74 | 0.6121 | 596.0 | 378.7 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -16.98 | 174.17 | 38.14 | 242.44 | 0.6686 | 400.0 | 362.7 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -16.04 | 173.64 | 37.61 | 243.47 | 0.6578 | 653.0 | 534.1 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -15.36 | 173.45 | 37.42 | 244.35 | 0.6524 | 630.0 | 454.6 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -9.98 | 172.17 | 36.14 | 251.85 | 0.6135 | 513.0 | 460.7 | |
| 0.00 | 1.28 | 0.00 | 0.84 | -16.59 | 173.33 | 37.30 | 242.52 | 0.6570 | 495.0 | 380.1 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -15.81 | 172.55 | 36.51 | 243.21 | 0.6437 | 651.0 | 518.1 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -17.73 | 172.47 | 36.44 | 240.42 | 0.6529 | 724.0 | 547.4 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -17.92 | 172.48 | 36.45 | 240.16 | 0.6540 | 656.0 | 582.2 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -20.26 | 172.97 | 36.93 | 237.26 | 0.6726 | 710.0 | 564.5 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -3.27 | 168.99 | 32.96 | 262.12 | 0.5505 | 538.0 | 542.4 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -9.90 | 168.91 | 32.88 | 250.46 | 0.5697 | -569.0 | -491.1 | |
| 1.97 | 84.63 | 1.17 | 50.38 | -11.45 | 167.42 | 31.39 | 247.00 | 0.5567 | 847.4 | 301.7 | |
| 15.83 | -13.00 | 9.42 | -13.00 | -11.72 | 167.28 | 31.24 | 246.46 | 0.5562 | 981.1 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -14.32 | 167.50 | 31.47 | 242.33 | 0.5733 | -661.0 | -530.0 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -13.83 | 167.31 | 31.28 | 243.00 | 0.5681 | 690.0 | 583.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -14.35 | 167.25 | 31.22 | 242.12 | 0.5703 | 326.0 | 171.8 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -11.90 | 166.73 | 30.70 | 245.81 | 0.5498 | 701.0 | 704.1 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -11.69 | 166.67 | 30.64 | 246.14 | 0.5479 | 928.0 | 787.9 | |
| 6.85 | 12.92 | 4.06 | 7.67 | -12.32 | 166.72 | 30.68 | 245.08 | 0.5519 | 922.7 | 532.4 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -22.70 | 168.70 | 32.67 | 231.04 | 0.6427 | 497.0 | 448.3 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -22.54 | 168.51 | 32.47 | 231.11 | 0.6395 | 728.0 | 630.8 | |
| 0.00 | 3.94 | 0.00 | 2.32 | -11.96 | 166.46 | 30.43 | 245.54 | 0.5465 | 771.0 | 751.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -11.83 | 166.34 | 30.31 | 245.67 | 0.5442 | 903.0 | 740.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -14.03 | 166.28 | 30.25 | 241.94 | 0.5560 | -163.0 | -154.6 | |
| 0.34 | 1.54 | 0.20 | 0.90 | -10.61 | 165.75 | 29.71 | 247.41 | 0.5298 | 780.0 | 615.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -10.85 | 165.67 | 29.64 | 246.94 | 0.5300 | 757.0 | 622.0 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -15.63 | 166.10 | 30.07 | 239.22 | 0.5638 | -699.0 | -491.6 | |
| 0.68 | 3.51 | 0.40 | 2.04 | -11.03 | 165.44 | 29.41 | 246.47 | 0.5278 | 893.1 | 773.4 | |
| 6.76 | 391.23 | 3.97 | 229.58 | -13.41 | 165.38 | 29.35 | 242.32 | 0.5406 | 1051.4 | 471.9 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -12.49 | 165.16 | 29.13 | 243.72 | 0.5322 | 771.0 | 718.7 | |
| 0.00 | 2.14 | 0.00 | 1.24 | -11.39 | 164.96 | 28.93 | 245.51 | 0.5233 | 990.0 | 795.2 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -21.29 | 166.59 | 30.56 | 231.23 | 0.6098 | 614.0 | 404.6 | |
| 1.80 | -30.00 | 1.05 | -30.00 | -13.31 | 165.13 | 29.10 | 242.28 | 0.5367 | 1026.7 | 999999 | |
| 61.10 | -30.00 | 35.88 | -30.00 | -14.10 | 164.95 | 28.92 | 240.81 | 0.5394 | 1360.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -15.37 | 165.14 | 29.11 | 238.88 | 0.5501 | 287.0 | 423.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -15.67 | 164.69 | 28.66 | 238.02 | 0.5466 | 572.0 | 439.9 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -16.07 | 164.65 | 28.62 | 237.34 | 0.5489 | -363.0 | -449.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -12.96 | 164.18 | 28.15 | 242.15 | 0.5221 | 254.0 | 246.4 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -11.59 | 163.89 | 27.86 | 244.36 | 0.5098 | -888.0 | -728.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -15.73 | 164.42 | 28.39 | 237.69 | 0.5436 | 851.0 | 690.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -12.93 | 163.90 | 27.87 | 241.99 | 0.5182 | 887.0 | 724.5 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -15.73 | 164.18 | 28.15 | 237.49 | 0.5406 | 819.0 | 684.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -12.19 | 163.51 | 27.48 | 242.98 | 0.5083 | -374.0 | -366.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -11.52 | 162.76 | 26.73 | 243.62 | 0.4939 | -592.0 | -493.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -19.37 | 163.52 | 27.49 | 231.22 | 0.5607 | -661.0 | -592.6 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -15.24 | 162.58 | 26.55 | 236.86 | 0.5172 | -357.0 | -248.9 | |
| 0.68 | 13.69 | 0.39 | 7.91 | -15.15 | 162.37 | 26.34 | 236.82 | 0.5137 | -771.8 | -245.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -5.80 | 161.37 | 25.34 | 254.20 | 0.4443 | 767.0 | 571.5 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -12.39 | 161.73 | 25.70 | 241.13 | 0.4857 | -743.0 | -602.9 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -14.62 | 161.58 | 25.55 | 236.98 | 0.4998 | -595.0 | -505.7 | |
| 0.00 | 3.59 | 0.00 | 2.05 | -14.68 | 161.32 | 25.29 | 236.62 | 0.4969 | -935.0 | -749.6 | |
| 0.00 | 2.05 | 0.00 | 1.19 | -17.44 | 161.66 | 25.63 | 232.36 | 0.5232 | -633.0 | -507.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -10.80 | 160.81 | 24.78 | 243.35 | 0.4626 | -715.0 | -664.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -14.64 | 160.94 | 24.91 | 236.31 | 0.4918 | -960.0 | -895.9 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -17.81 | 161.27 | 25.24 | 231.37 | 0.5218 | -499.0 | -491.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -17.71 | 160.98 | 24.95 | 231.22 | 0.5176 | -758.0 | -547.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -9.64 | 159.79 | 23.76 | 244.79 | 0.4409 | -675.0 | -580.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -13.86 | 160.05 | 24.02 | 236.78 | 0.4743 | -792.0 | -576.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -18.51 | 159.76 | 23.73 | 228.62 | 0.5107 | -597.0 | -480.3 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -13.88 | 159.02 | 22.99 | 235.63 | 0.4612 | -696.0 | -574.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -16.54 | 159.29 | 23.26 | 231.26 | 0.4874 | -906.0 | -716.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -18.32 | 159.33 | 23.30 | 228.42 | 0.5040 | -646.0 | -569.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -12.75 | 158.54 | 22.51 | 237.26 | 0.4459 | -815.0 | -622.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -12.57 | 158.46 | 22.43 | 237.52 | 0.4433 | -757.0 | -678.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -12.75 | 158.18 | 22.15 | 236.86 | 0.4411 | -807.0 | -642.7 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -13.05 | 158.08 | 22.05 | 236.15 | 0.4422 | -875.0 | -803.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -13.53 | 157.70 | 21.67 | 234.77 | 0.4414 | -720.0 | -574.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.06 | 156.96 | 20.93 | 231.00 | 0.4458 | -777.0 | -710.2 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -15.37 | 156.50 | 20.47 | 229.85 | 0.4431 | -797.0 | -708.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -15.71 | 156.41 | 20.38 | 229.12 | 0.4452 | -819.0 | -732.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
