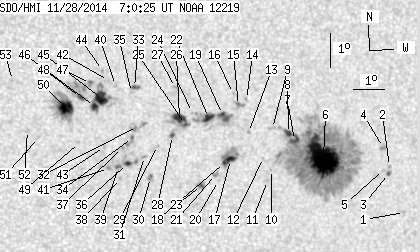

SDO HMI 2014-11-28 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.17 | 651.02 | 73.37 | 357.26 | 4.12 | 161.20 | 25.17 | 277.30 | 0.4290 | -145.8 | -147.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.78 | 2.01 | 166.11 | 30.08 | 271.86 | 0.5032 | 691.0 | 582.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 3.38 | 165.63 | 29.60 | 274.64 | 0.4968 | 559.0 | 464.8 | |
| 0.68 | 2.05 | 0.39 | 1.17 | 3.17 | 165.59 | 29.56 | 274.23 | 0.4960 | 694.6 | 594.2 | |
| 0.00 | 2.82 | 0.00 | 1.61 | 3.94 | 165.45 | 29.42 | 275.81 | 0.4946 | -797.0 | -702.5 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 3.29 | 165.43 | 29.40 | 274.49 | 0.4936 | 465.0 | 453.2 | |
| 65.46 | 396.19 | 36.54 | 221.01 | 3.67 | 163.42 | 27.38 | 275.57 | 0.4631 | -1330.0 | -423.2 | |
| 4.96 | -6.00 | 2.75 | -6.00 | 4.18 | 162.47 | 26.44 | 276.87 | 0.4491 | -1039.8 | 999999 | |
| 3.17 | -6.00 | 1.75 | -6.00 | 4.39 | 162.28 | 26.25 | 277.38 | 0.4465 | -1070.6 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.27 | 4.54 | 161.76 | 25.72 | 277.86 | 0.4386 | -928.0 | -753.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 3.33 | 161.68 | 25.65 | 275.10 | 0.4357 | -855.0 | -696.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 3.01 | 161.54 | 25.51 | 274.37 | 0.4332 | -697.0 | -532.5 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 3.69 | 161.43 | 25.40 | 275.97 | 0.4322 | 387.0 | 243.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 4.43 | 160.96 | 24.93 | 277.82 | 0.4260 | -996.0 | -832.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 5.41 | 160.94 | 24.91 | 280.11 | 0.4277 | -687.0 | -567.3 | |
| 0.00 | 4.62 | 0.00 | 2.52 | 5.24 | 160.67 | 24.64 | 279.79 | 0.4231 | -935.0 | -773.8 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 5.59 | 160.52 | 24.49 | 280.68 | 0.4216 | -687.0 | -552.9 | |
| 4.54 | 19.34 | 2.47 | 10.52 | 3.64 | 160.35 | 24.32 | 276.08 | 0.4151 | 891.7 | 79.7 | |
| 1.80 | -17.00 | 0.98 | -17.00 | 3.55 | 160.15 | 24.12 | 275.91 | 0.4118 | 877.3 | 999999 | |
| 1.88 | 31.15 | 1.02 | 16.89 | 4.98 | 160.13 | 24.10 | 279.35 | 0.4141 | 372.4 | 51.0 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 3.02 | 159.94 | 23.91 | 274.65 | 0.4078 | 613.0 | 537.0 | |
| 0.00 | 2.57 | 0.00 | 1.39 | 3.20 | 159.85 | 23.82 | 275.11 | 0.4065 | 914.0 | 720.3 | |
| 5.56 | -19.00 | 3.01 | -19.00 | 4.89 | 159.68 | 23.65 | 279.30 | 0.4067 | 1022.1 | 999999 | |
| 1.45 | 5.05 | 0.79 | 2.72 | 2.88 | 159.39 | 23.36 | 274.38 | 0.3988 | 995.9 | 811.2 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 5.04 | 159.16 | 23.13 | 279.86 | 0.3989 | -637.0 | -382.5 | |
| 1.11 | 18.74 | 0.60 | 10.08 | 4.69 | 158.92 | 22.89 | 279.06 | 0.3943 | -973.4 | -578.2 | |
| 7.44 | -25.00 | 4.00 | -25.00 | 4.87 | 158.74 | 22.71 | 279.59 | 0.3918 | -1130.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 5.79 | 158.65 | 22.62 | 281.95 | 0.3928 | -814.0 | -698.1 | |
| 0.94 | 4.45 | 0.51 | 2.39 | 4.37 | 158.50 | 22.46 | 278.39 | 0.3868 | 555.4 | -21.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 4.08 | 158.01 | 21.97 | 277.78 | 0.3784 | 515.0 | 438.4 | |
| 0.00 | 3.25 | 0.00 | 1.73 | 3.13 | 157.76 | 21.73 | 275.33 | 0.3728 | 936.0 | 750.3 | |
| 0.00 | 2.05 | 0.00 | 1.09 | 3.75 | 157.58 | 21.55 | 277.05 | 0.3709 | 686.0 | 529.0 | |
| 0.00 | 6.59 | 0.00 | 3.51 | 4.65 | 157.38 | 21.35 | 279.52 | 0.3696 | 548.0 | 710.7 | |
| 0.86 | 3.17 | 0.46 | 1.69 | 5.80 | 157.33 | 21.30 | 282.63 | 0.3720 | 731.0 | 589.9 | |
| 0.43 | 5.13 | 0.23 | 2.73 | 4.32 | 157.21 | 21.18 | 278.70 | 0.3661 | 878.4 | 737.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 5.65 | 157.23 | 21.20 | 282.29 | 0.3699 | 760.0 | 538.5 | |
| 1.97 | 7.70 | 1.05 | 4.09 | 3.55 | 157.03 | 21.00 | 276.66 | 0.3618 | 948.3 | 649.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 4.03 | 156.89 | 20.86 | 278.02 | 0.3603 | 971.0 | 846.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 3.11 | 156.80 | 20.77 | 275.49 | 0.3573 | 796.0 | 551.2 | |
| 0.00 | 2.57 | 0.00 | 1.36 | 3.44 | 156.75 | 20.72 | 276.41 | 0.3569 | 1054.0 | 921.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 5.87 | 156.73 | 20.70 | 283.13 | 0.3626 | 579.0 | 414.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 3.41 | 156.43 | 20.40 | 276.43 | 0.3517 | 994.0 | 901.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 6.02 | 156.51 | 20.48 | 283.67 | 0.3597 | 726.0 | 547.0 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 4.06 | 156.32 | 20.29 | 278.31 | 0.3511 | 970.0 | 801.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 6.32 | 156.33 | 20.30 | 284.59 | 0.3580 | 775.0 | 634.5 | |
| 11.64 | 28.84 | 6.16 | 15.26 | 5.49 | 156.27 | 20.24 | 282.34 | 0.3541 | 1120.6 | 717.1 | |
| 4.02 | -45.00 | 2.12 | -45.00 | 5.25 | 156.04 | 20.01 | 281.80 | 0.3496 | 1149.8 | 999999 | |
| 0.00 | 3.25 | 0.00 | 1.72 | 5.93 | 155.94 | 19.91 | 283.78 | 0.3503 | 785.0 | 700.4 | |
| 1.88 | 24.22 | 0.99 | 12.76 | 5.52 | 155.61 | 19.58 | 282.81 | 0.3435 | 1194.5 | 659.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 4.19 | 155.53 | 19.50 | 278.98 | 0.3386 | 947.0 | 743.5 | |
| 14.38 | 45.18 | 7.55 | 23.72 | 5.23 | 155.12 | 19.09 | 282.24 | 0.3348 | 1345.4 | 579.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 4.35 | 154.25 | 18.22 | 280.04 | 0.3181 | 711.0 | 494.8 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 4.56 | 153.91 | 17.88 | 280.88 | 0.3131 | 717.0 | 565.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 6.04 | 153.49 | 17.46 | 285.84 | 0.3116 | 896.0 | 724.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
