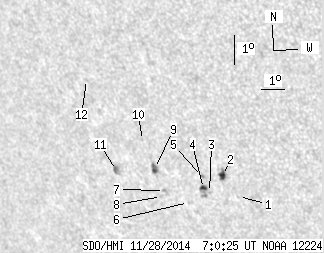

SDO HMI 2014-11-28 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.72 | 31.08 | 6.23 | 22.45 | -23.31 | 95.13 | -40.91 | 124.36 | 0.7306 | 182.9 | 50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.18 | -24.00 | 97.59 | -38.44 | 126.62 | 0.7100 | 282.0 | 424.7 | |
| 3.59 | 6.08 | 2.52 | 4.26 | -23.32 | 97.17 | -38.87 | 125.52 | 0.7103 | 812.9 | 572.6 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -23.89 | 96.42 | -39.61 | 125.78 | 0.7209 | 490.0 | 480.0 | |
| 2.31 | 7.02 | 1.65 | 5.01 | -23.76 | 96.21 | -39.82 | 125.50 | 0.7222 | 818.8 | 591.2 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -23.37 | 96.31 | -39.72 | 125.07 | 0.7191 | 752.0 | 564.6 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -24.23 | 95.40 | -40.63 | 125.61 | 0.7328 | 537.0 | 431.2 | |
| 0.00 | 1.71 | 0.00 | 1.25 | -23.85 | 94.51 | -41.52 | 124.65 | 0.7394 | 611.0 | 419.6 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -24.05 | 94.30 | -41.73 | 124.78 | 0.7424 | -261.0 | -228.1 | |
| 2.82 | 4.88 | 2.06 | 3.56 | -23.13 | 94.36 | -41.68 | 123.69 | 0.7372 | -754.5 | -606.9 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -22.23 | 94.18 | -41.85 | 122.48 | 0.7345 | -316.0 | -262.1 | |
| 0.00 | 5.05 | 0.00 | 3.79 | -23.23 | 92.65 | -43.38 | 122.93 | 0.7543 | -727.0 | -572.1 | |
| 0.00 | 1.37 | 0.00 | 1.01 | -20.30 | 92.45 | -43.58 | 119.22 | 0.7432 | -428.0 | -438.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
