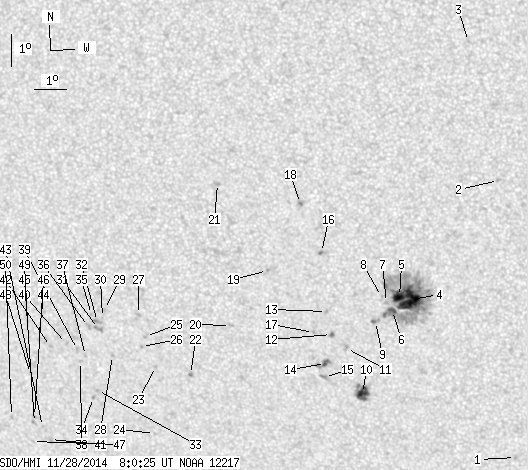

SDO HMI 2014-11-28 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.84 | 258.83 | 29.27 | 139.28 | -18.27 | 123.78 | -11.71 | 150.75 | 0.3892 | 321.4 | 222.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.68 | 129.29 | -6.20 | 166.19 | 0.4192 | 753.0 | 603.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.98 | 129.08 | -6.40 | 157.58 | 0.2850 | 936.0 | 723.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -9.75 | 128.28 | -7.21 | 147.02 | 0.2281 | 908.0 | 710.1 | |
| 29.95 | 160.44 | 15.89 | 85.11 | -17.66 | 126.20 | -9.28 | 154.59 | 0.3599 | 1277.2 | 408.1 | |
| 9.75 | -4.00 | 5.18 | -4.00 | -17.57 | 125.86 | -9.63 | 153.67 | 0.3610 | 1123.8 | 999999 | |
| 2.65 | -4.00 | 1.41 | -4.00 | -18.01 | 125.61 | -9.87 | 153.66 | 0.3691 | 837.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -17.76 | 125.44 | -10.05 | 152.94 | 0.3668 | 572.0 | 326.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -17.57 | 125.29 | -10.19 | 152.36 | 0.3652 | 615.0 | 432.7 | |
| 0.00 | 3.59 | 0.00 | 1.92 | -18.36 | 125.06 | -10.43 | 152.85 | 0.3781 | 853.0 | 670.3 | |
| 9.93 | 16.60 | 5.40 | 9.03 | -20.64 | 124.48 | -11.00 | 154.37 | 0.4146 | 1036.1 | 772.8 | |
| 0.00 | 2.74 | 0.00 | 1.48 | -19.21 | 124.08 | -11.41 | 151.84 | 0.3975 | 805.0 | 661.7 | |
| 0.51 | 2.22 | 0.28 | 1.20 | -18.77 | 123.63 | -11.86 | 150.34 | 0.3949 | 1032.5 | 873.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.05 | 123.52 | -11.96 | 149.14 | 0.3859 | 967.0 | 809.9 | |
| 2.05 | 7.53 | 1.11 | 4.09 | -19.69 | 123.37 | -12.12 | 151.00 | 0.4095 | 1036.7 | 735.4 | |
| 0.00 | 3.42 | 0.00 | 1.86 | -20.13 | 123.30 | -12.19 | 151.43 | 0.4162 | 833.0 | 676.9 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -16.21 | 123.49 | -12.00 | 146.30 | 0.3614 | 1112.0 | 897.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -18.71 | 123.06 | -12.43 | 149.10 | 0.3987 | 915.0 | 818.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.70 | 122.92 | -12.57 | 142.48 | 0.3470 | 1129.0 | 944.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -16.77 | 121.74 | -13.75 | 143.60 | 0.3851 | 776.0 | 609.3 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -18.50 | 120.41 | -15.08 | 143.79 | 0.4194 | -763.0 | -607.6 | |
| 0.00 | 3.08 | 0.00 | 1.64 | -14.09 | 120.35 | -15.14 | 136.15 | 0.3672 | 818.0 | 582.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.06 | 118.95 | -16.54 | 143.57 | 0.4522 | -1045.0 | -889.3 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -19.81 | 117.82 | -17.66 | 141.44 | 0.4599 | -747.0 | -619.1 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -21.95 | 117.52 | -17.96 | 143.94 | 0.4879 | -668.0 | -496.8 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -18.86 | 117.60 | -17.88 | 139.70 | 0.4512 | -885.0 | -733.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.18 | 117.43 | -18.05 | 139.92 | 0.4565 | -777.0 | -667.8 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -18.17 | 117.45 | -18.04 | 138.39 | 0.4449 | -878.0 | -659.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.47 | 116.44 | -19.05 | 138.88 | 0.4698 | -841.0 | -636.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -18.02 | 116.35 | -19.14 | 136.51 | 0.4549 | -847.0 | -759.9 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -18.27 | 116.25 | -19.23 | 136.78 | 0.4587 | -777.0 | -647.2 | |
| 0.00 | 3.59 | 0.00 | 2.01 | -18.62 | 116.08 | -19.41 | 137.07 | 0.4643 | -779.0 | -760.7 | |
| 0.00 | 2.99 | 0.00 | 1.67 | -18.40 | 116.07 | -19.41 | 136.72 | 0.4620 | -969.0 | -842.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -20.59 | 115.79 | -19.69 | 139.59 | 0.4886 | -869.0 | -768.0 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -20.81 | 115.63 | -19.86 | 139.68 | 0.4927 | -791.0 | -670.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -18.18 | 115.90 | -19.59 | 136.13 | 0.4615 | -814.0 | -724.5 | |
| 0.00 | 2.82 | 0.00 | 1.58 | -18.56 | 115.76 | -19.73 | 136.52 | 0.4670 | -892.0 | -718.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -19.48 | 115.54 | -19.95 | 137.62 | 0.4791 | -542.0 | -465.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -19.67 | 115.35 | -20.14 | 137.64 | 0.4832 | -908.0 | -737.4 | |
| 0.00 | 2.40 | 0.00 | 1.35 | -19.29 | 115.30 | -20.19 | 137.00 | 0.4796 | -885.0 | -660.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -19.10 | 114.95 | -20.53 | 136.25 | 0.4813 | -829.0 | -687.4 | |
| 0.00 | 2.82 | 0.00 | 1.64 | -22.17 | 113.96 | -21.53 | 139.36 | 0.5238 | -715.0 | -472.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -19.20 | 114.40 | -21.08 | 135.67 | 0.4882 | -847.0 | -669.1 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -21.75 | 113.75 | -21.73 | 138.53 | 0.5214 | -800.0 | -662.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -18.98 | 114.03 | -21.46 | 134.86 | 0.4900 | -814.0 | -649.2 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -21.63 | 113.50 | -21.99 | 138.04 | 0.5226 | -680.0 | -602.3 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -21.43 | 113.53 | -21.96 | 137.81 | 0.5203 | -780.0 | -653.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -22.24 | 113.33 | -22.16 | 138.67 | 0.5307 | -596.0 | -457.0 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -20.06 | 113.61 | -21.88 | 135.94 | 0.5054 | -593.0 | -525.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -18.42 | 113.74 | -21.75 | 133.61 | 0.4875 | -668.0 | -459.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -21.44 | 112.74 | -22.75 | 136.85 | 0.5284 | -486.0 | -348.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
