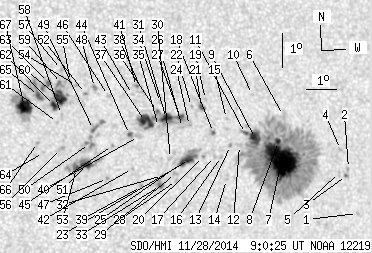

SDO HMI 2014-11-28 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 151.85 | 677.06 | 83.61 | 375.20 | 4.09 | 161.19 | 26.25 | 276.97 | 0.4459 | -152.2 | -130.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.69 | 1.99 | 165.98 | 31.04 | 271.81 | 0.5177 | 822.0 | 644.9 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 3.32 | 165.71 | 30.77 | 274.42 | 0.5143 | 455.0 | 366.4 | |
| 0.51 | 1.80 | 0.30 | 1.04 | 3.12 | 165.64 | 30.69 | 274.03 | 0.5130 | 762.3 | 619.2 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 3.89 | 165.46 | 30.52 | 275.56 | 0.5111 | -835.0 | -636.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 3.21 | 165.40 | 30.46 | 274.23 | 0.5095 | 557.0 | 489.1 | |
| 0.00 | 5.13 | 0.00 | 2.90 | 4.92 | 163.56 | 28.62 | 277.98 | 0.4838 | -207.0 | -123.3 | |
| 59.98 | 394.52 | 33.82 | 222.54 | 3.58 | 163.43 | 28.49 | 275.24 | 0.4801 | -1349.6 | -394.6 | |
| 2.31 | -7.00 | 1.30 | -7.00 | 4.15 | 163.35 | 28.41 | 276.43 | 0.4796 | -982.1 | 999999 | |
| 10.52 | -7.00 | 5.89 | -7.00 | 4.25 | 162.58 | 27.64 | 276.78 | 0.4679 | -1126.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 5.55 | 162.54 | 27.60 | 279.57 | 0.4696 | -691.0 | -533.1 | |
| 1.28 | -7.00 | 0.72 | -7.00 | 4.40 | 162.26 | 27.31 | 277.18 | 0.4631 | -970.9 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.53 | 4.04 | 162.04 | 27.10 | 276.46 | 0.4592 | -692.0 | -585.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 4.05 | 161.74 | 26.80 | 276.52 | 0.4546 | -922.0 | -765.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 3.04 | 161.58 | 26.63 | 274.33 | 0.4508 | -674.0 | -603.2 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 4.85 | 161.64 | 26.70 | 278.31 | 0.4544 | -716.0 | -638.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 3.72 | 161.43 | 26.49 | 275.87 | 0.4493 | 210.0 | 215.1 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 3.73 | 161.20 | 26.26 | 275.92 | 0.4457 | -71.0 | 7.9 | |
| 0.68 | 2.57 | 0.38 | 1.42 | 4.44 | 161.19 | 26.25 | 277.51 | 0.4467 | -938.9 | -723.2 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 5.42 | 160.97 | 26.03 | 279.77 | 0.4452 | -790.0 | -574.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 3.73 | 160.84 | 25.89 | 276.00 | 0.4401 | 595.0 | 430.3 | |
| 1.97 | 3.34 | 1.09 | 1.84 | 5.18 | 160.83 | 25.89 | 279.28 | 0.4424 | -1012.0 | -772.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 5.22 | 160.50 | 25.56 | 279.46 | 0.4374 | -813.0 | -650.7 | |
| 5.39 | 20.45 | 2.96 | 11.23 | 3.65 | 160.37 | 25.43 | 275.89 | 0.4327 | 739.0 | -60.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 4.65 | 160.41 | 25.47 | 278.20 | 0.4349 | -806.0 | -705.6 | |
| 2.74 | -23.00 | 1.50 | -23.00 | 3.56 | 160.14 | 25.20 | 275.74 | 0.4289 | 942.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 4.60 | 160.18 | 25.24 | 278.14 | 0.4311 | -352.0 | -215.5 | |
| 2.57 | 48.86 | 1.41 | 26.65 | 4.89 | 160.12 | 25.18 | 278.84 | 0.4309 | 289.9 | -81.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 3.03 | 159.93 | 24.99 | 274.53 | 0.4250 | 687.0 | 537.9 | |
| 0.00 | 2.48 | 0.00 | 1.36 | 3.24 | 159.90 | 24.96 | 275.02 | 0.4248 | 933.0 | 726.6 | |
| 0.00 | 2.05 | 0.00 | 1.12 | 3.68 | 159.75 | 24.81 | 276.10 | 0.4229 | -294.0 | -195.5 | |
| 6.25 | -27.00 | 3.41 | -27.00 | 4.87 | 159.66 | 24.72 | 278.92 | 0.4236 | 1028.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 3.18 | 159.48 | 24.53 | 274.96 | 0.4179 | 670.0 | 559.7 | |
| 1.45 | 6.16 | 0.79 | 3.35 | 2.89 | 159.40 | 24.46 | 274.26 | 0.4165 | 1057.9 | 851.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 5.35 | 159.49 | 24.55 | 280.10 | 0.4219 | -880.0 | -670.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 4.63 | 159.39 | 24.45 | 278.45 | 0.4189 | 148.0 | 149.9 | |
| 0.60 | -27.00 | 0.33 | -27.00 | 5.08 | 159.38 | 24.44 | 279.51 | 0.4196 | -612.1 | 999999 | |
| 11.89 | -27.00 | 6.46 | -27.00 | 4.79 | 158.97 | 24.03 | 278.94 | 0.4126 | -1070.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 5.68 | 158.91 | 23.97 | 281.10 | 0.4138 | -901.0 | -728.5 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 2.86 | 158.78 | 23.84 | 274.29 | 0.4066 | 822.0 | 640.4 | |
| 0.00 | 3.94 | 0.00 | 2.13 | 4.34 | 158.73 | 23.79 | 277.94 | 0.4079 | -247.0 | -128.5 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 5.83 | 158.73 | 23.79 | 281.54 | 0.4113 | -732.0 | -732.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 3.40 | 158.51 | 23.57 | 275.67 | 0.4028 | 804.0 | 661.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 5.59 | 158.59 | 23.64 | 281.03 | 0.4084 | 301.0 | 157.2 | |
| 0.94 | 2.57 | 0.51 | 1.39 | 4.41 | 158.44 | 23.50 | 278.18 | 0.4034 | 757.6 | 603.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 4.09 | 157.88 | 22.94 | 277.55 | 0.3939 | 655.0 | 454.5 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 5.57 | 157.81 | 22.87 | 281.30 | 0.3961 | 372.0 | 366.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 3.11 | 157.69 | 22.75 | 275.10 | 0.3894 | 964.0 | 771.5 | |
| 0.00 | 2.57 | 0.00 | 1.38 | 5.81 | 157.37 | 22.43 | 282.11 | 0.3899 | 829.0 | 655.3 | |
| 0.86 | 7.87 | 0.46 | 4.23 | 4.57 | 157.29 | 22.35 | 278.96 | 0.3853 | 918.7 | 725.1 | |
| 0.00 | 8.39 | 0.00 | 4.49 | 4.15 | 157.14 | 22.20 | 277.94 | 0.3822 | 481.0 | 389.7 | |
| 5.13 | 25.50 | 2.75 | 13.63 | 3.53 | 157.03 | 22.09 | 276.34 | 0.3793 | 986.2 | 644.6 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 5.64 | 157.07 | 22.13 | 281.81 | 0.3847 | 738.0 | 646.2 | |
| 1.80 | -51.00 | 0.96 | -51.00 | 3.42 | 156.71 | 21.77 | 276.11 | 0.3739 | 1061.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 5.88 | 156.79 | 21.85 | 282.56 | 0.3810 | 666.0 | 519.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 6.00 | 156.60 | 21.66 | 282.97 | 0.3784 | 536.0 | 447.8 | |
| 0.00 | 2.65 | 0.00 | 1.41 | 4.01 | 156.25 | 21.30 | 277.85 | 0.3675 | 924.0 | 781.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 6.35 | 156.33 | 21.39 | 284.06 | 0.3753 | 808.0 | 640.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 5.02 | 156.28 | 21.34 | 280.55 | 0.3703 | 533.0 | 493.1 | |
| 0.00 | 6.59 | 0.00 | 3.52 | 5.94 | 156.31 | 21.37 | 282.98 | 0.3736 | 751.0 | 638.6 | |
| 11.12 | 22.50 | 5.93 | 11.99 | 5.52 | 156.23 | 21.29 | 281.92 | 0.3710 | 1126.4 | 856.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 4.78 | 156.14 | 21.20 | 279.98 | 0.3675 | 784.0 | 602.5 | |
| 3.59 | -60.00 | 1.91 | -60.00 | 5.29 | 156.06 | 21.12 | 281.37 | 0.3677 | 1163.0 | 999999 | |
| 1.28 | 25.58 | 0.68 | 13.58 | 5.97 | 155.90 | 20.96 | 283.29 | 0.3672 | 784.7 | 599.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 3.90 | 155.67 | 20.73 | 277.73 | 0.3580 | 757.0 | 547.6 | |
| 3.08 | -63.00 | 1.63 | -63.00 | 5.59 | 155.57 | 20.63 | 282.44 | 0.3606 | 1126.5 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 4.20 | 155.49 | 20.55 | 278.62 | 0.3556 | 976.0 | 753.6 | |
| 15.91 | 35.85 | 8.42 | 18.95 | 5.27 | 155.11 | 20.17 | 281.79 | 0.3523 | 1321.4 | 608.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
