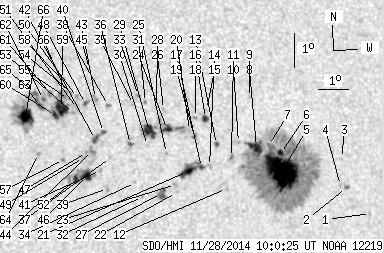

SDO HMI 2014-11-28 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.00 | 659.38 | 85.23 | 366.96 | 4.09 | 161.16 | 26.77 | 276.88 | 0.4539 | -126.3 | -123.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.55 | 2.29 | 166.45 | 32.05 | 272.36 | 0.5328 | 671.0 | 562.6 | |
| 0.60 | 1.97 | 0.35 | 1.14 | 3.07 | 165.63 | 31.24 | 273.90 | 0.5212 | 797.4 | 630.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 3.93 | 165.49 | 31.10 | 275.58 | 0.5199 | -824.0 | -631.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 3.14 | 165.43 | 31.03 | 274.04 | 0.5181 | 739.0 | 591.2 | |
| 66.30 | 395.86 | 37.59 | 224.38 | 3.57 | 163.42 | 29.03 | 275.15 | 0.4882 | -1325.3 | -394.5 | |
| 2.65 | -5.00 | 1.50 | -5.00 | 4.11 | 163.41 | 29.01 | 276.24 | 0.4887 | -966.5 | 999999 | |
| 0.26 | -5.00 | 0.15 | -5.00 | 4.35 | 163.01 | 28.62 | 276.81 | 0.4830 | -776.0 | 999999 | |
| 8.47 | -5.00 | 4.77 | -5.00 | 4.29 | 162.60 | 28.21 | 276.78 | 0.4767 | -1148.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 5.78 | 162.44 | 28.05 | 279.93 | 0.4769 | -685.0 | -570.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 4.45 | 162.01 | 27.61 | 277.23 | 0.4677 | -949.0 | -780.0 | |
| 0.00 | 2.65 | 0.00 | 1.48 | 4.01 | 161.75 | 27.36 | 276.33 | 0.4632 | -838.0 | -644.5 | |
| 0.00 | 2.05 | 0.00 | 1.14 | 3.09 | 161.56 | 27.16 | 274.38 | 0.4591 | -593.0 | -561.3 | |
| 0.94 | 2.14 | 0.52 | 1.19 | 4.40 | 161.27 | 26.87 | 277.28 | 0.4563 | -900.8 | -670.2 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 3.75 | 161.01 | 26.62 | 275.91 | 0.4514 | -400.0 | -132.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 5.44 | 160.98 | 26.59 | 279.64 | 0.4538 | -743.0 | -589.9 | |
| 2.74 | 3.85 | 1.52 | 2.14 | 5.17 | 160.94 | 26.54 | 279.07 | 0.4526 | -920.8 | -742.6 | |
| 1.37 | 20.88 | 0.76 | 11.51 | 3.72 | 160.75 | 26.35 | 275.90 | 0.4472 | 589.9 | 51.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 5.20 | 160.61 | 26.21 | 279.24 | 0.4475 | -825.0 | -610.9 | |
| 0.51 | 2.48 | 0.28 | 1.37 | 4.64 | 160.55 | 26.15 | 278.00 | 0.4455 | -923.0 | -671.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 4.82 | 160.39 | 26.00 | 278.45 | 0.4434 | -440.0 | -354.0 | |
| 8.56 | -17.00 | 4.71 | -17.00 | 3.61 | 160.28 | 25.88 | 275.73 | 0.4397 | 754.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 2.99 | 159.90 | 25.50 | 274.37 | 0.4331 | 685.0 | 520.9 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 3.23 | 159.87 | 25.48 | 274.92 | 0.4329 | 906.0 | 683.0 | |
| 4.19 | 34.65 | 2.30 | 18.97 | 4.86 | 159.67 | 25.27 | 278.74 | 0.4322 | 1024.8 | -58.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 4.15 | 159.61 | 25.21 | 277.11 | 0.4300 | 588.0 | 499.0 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 5.45 | 159.56 | 25.17 | 280.14 | 0.4319 | -778.0 | -643.8 | |
| 0.00 | 7.53 | 0.00 | 4.12 | 2.97 | 159.41 | 25.01 | 274.38 | 0.4253 | 1036.0 | 901.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 5.51 | 159.34 | 24.94 | 280.36 | 0.4285 | -597.0 | -508.7 | |
| 9.75 | -24.00 | 5.33 | -24.00 | 4.81 | 159.08 | 24.68 | 278.79 | 0.4228 | -1102.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 4.39 | 158.99 | 24.60 | 277.84 | 0.4208 | -666.0 | -488.5 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 5.67 | 158.98 | 24.59 | 280.85 | 0.4234 | -828.0 | -721.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 2.88 | 158.79 | 24.39 | 274.27 | 0.4154 | 749.0 | 631.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 5.88 | 158.76 | 24.37 | 281.43 | 0.4205 | -860.0 | -734.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 3.30 | 158.57 | 24.17 | 275.32 | 0.4124 | 802.0 | 605.3 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 5.61 | 158.59 | 24.19 | 280.87 | 0.4171 | 494.0 | 311.0 | |
| 0.77 | 1.97 | 0.42 | 1.07 | 4.43 | 158.44 | 24.05 | 278.08 | 0.4121 | 787.7 | 621.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 4.05 | 157.78 | 23.38 | 277.33 | 0.4009 | 786.0 | 536.3 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 5.59 | 157.77 | 23.38 | 281.15 | 0.4043 | 710.0 | 542.3 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 3.13 | 157.66 | 23.26 | 275.07 | 0.3976 | 827.0 | 754.3 | |
| 0.86 | 7.61 | 0.46 | 4.10 | 4.79 | 157.58 | 23.18 | 279.25 | 0.3992 | 755.4 | 618.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 3.67 | 157.45 | 23.05 | 276.46 | 0.3950 | 740.0 | 578.9 | |
| 1.97 | -40.00 | 1.06 | -40.00 | 4.59 | 157.31 | 22.92 | 278.82 | 0.3945 | 869.0 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.62 | 5.80 | 157.36 | 22.97 | 281.85 | 0.3984 | 795.0 | 643.7 | |
| 0.00 | 3.59 | 0.00 | 1.93 | 4.26 | 157.21 | 22.81 | 278.04 | 0.3922 | 640.0 | 381.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 6.69 | 157.21 | 22.82 | 284.12 | 0.3989 | 721.0 | 533.3 | |
| 7.10 | 23.36 | 3.81 | 12.52 | 3.52 | 156.99 | 22.60 | 276.20 | 0.3874 | 798.5 | 599.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 4.20 | 157.01 | 22.62 | 277.95 | 0.3889 | 1017.0 | 838.4 | |
| 0.68 | 2.91 | 0.37 | 1.57 | 5.66 | 157.03 | 22.64 | 281.63 | 0.3928 | 760.2 | 628.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 4.06 | 156.91 | 22.52 | 277.60 | 0.3870 | 971.0 | 756.2 | |
| 0.00 | 2.14 | 0.00 | 1.15 | 5.84 | 156.78 | 22.39 | 282.20 | 0.3894 | 546.0 | 355.5 | |
| 0.00 | 5.13 | 0.00 | 2.76 | 5.51 | 156.77 | 22.37 | 281.38 | 0.3882 | 694.0 | 474.7 | |
| 3.08 | -46.00 | 1.65 | -46.00 | 3.41 | 156.67 | 22.27 | 275.98 | 0.3821 | 1089.0 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 5.36 | 156.64 | 22.24 | 281.07 | 0.3856 | 725.0 | 606.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 5.99 | 156.60 | 22.20 | 282.68 | 0.3869 | 563.0 | 452.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 5.78 | 156.49 | 22.10 | 282.20 | 0.3846 | 543.0 | 569.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 5.99 | 156.44 | 22.04 | 282.76 | 0.3844 | 630.0 | 600.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 4.00 | 156.27 | 21.87 | 277.66 | 0.3766 | 997.0 | 835.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 6.37 | 156.33 | 21.93 | 283.81 | 0.3839 | 742.0 | 572.5 | |
| 11.38 | 26.95 | 6.09 | 14.42 | 5.51 | 156.26 | 21.86 | 281.63 | 0.3801 | 1096.6 | 776.3 | |
| 3.17 | -59.00 | 1.69 | -59.00 | 5.31 | 156.06 | 21.66 | 281.18 | 0.3763 | 1186.9 | 999999 | |
| 0.00 | 3.59 | 0.00 | 1.92 | 5.96 | 155.92 | 21.53 | 282.97 | 0.3762 | 794.0 | 750.2 | |
| 0.60 | 4.28 | 0.32 | 2.28 | 5.79 | 155.69 | 21.30 | 282.63 | 0.3719 | 964.6 | 616.6 | |
| 2.22 | 14.37 | 1.18 | 7.65 | 5.58 | 155.59 | 21.19 | 282.13 | 0.3696 | 1144.9 | 657.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 4.19 | 155.48 | 21.08 | 278.41 | 0.3642 | 1058.0 | 843.6 | |
| 0.94 | -63.00 | 0.50 | -63.00 | 5.97 | 155.44 | 21.05 | 283.24 | 0.3686 | 806.2 | 999999 | |
| 14.89 | 43.80 | 7.90 | 23.24 | 5.29 | 155.10 | 20.70 | 281.59 | 0.3609 | 1304.4 | 535.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
