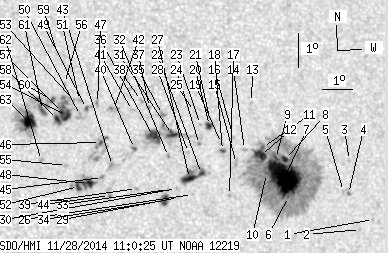

SDO HMI 2014-11-28 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 155.21 | 704.91 | 86.37 | 393.59 | 4.13 | 160.98 | 27.13 | 276.89 | 0.4596 | -196.3 | -102.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.45 | 2.29 | 166.50 | 32.65 | 272.33 | 0.5417 | 656.0 | 417.3 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 2.00 | 166.04 | 32.19 | 271.81 | 0.5347 | 813.0 | 644.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 4.05 | 165.72 | 31.87 | 275.69 | 0.5314 | -716.0 | -517.8 | |
| 0.43 | 2.31 | 0.25 | 1.35 | 3.07 | 165.65 | 31.80 | 273.85 | 0.5295 | 772.6 | 632.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 3.13 | 165.47 | 31.63 | 273.98 | 0.5270 | 738.0 | 499.5 | |
| 0.26 | 393.51 | 0.15 | 224.31 | 3.01 | 163.57 | 29.72 | 273.92 | 0.4983 | -950.3 | -383.2 | |
| 63.82 | -6.00 | 36.38 | -6.00 | 3.57 | 163.46 | 29.61 | 275.07 | 0.4971 | -1313.4 | 999999 | |
| 3.17 | -6.00 | 1.81 | -6.00 | 4.10 | 163.48 | 29.63 | 276.14 | 0.4980 | -859.0 | 999999 | |
| 1.54 | -6.00 | 0.88 | -6.00 | 4.14 | 163.17 | 29.32 | 276.25 | 0.4934 | -873.9 | 999999 | |
| 0.26 | -6.00 | 0.15 | -6.00 | 3.69 | 162.85 | 29.00 | 275.41 | 0.4880 | -1278.0 | 999999 | |
| 0.94 | -6.00 | 0.53 | -6.00 | 4.47 | 162.74 | 28.89 | 277.01 | 0.4874 | -797.0 | 999999 | |
| 8.90 | -6.00 | 5.04 | -6.00 | 4.23 | 162.67 | 28.82 | 276.54 | 0.4858 | -1168.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 5.80 | 162.44 | 28.59 | 279.83 | 0.4852 | -705.0 | -566.9 | |
| 0.00 | 2.05 | 0.00 | 1.16 | 4.41 | 162.13 | 28.28 | 277.02 | 0.4780 | -985.0 | -716.6 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 4.00 | 161.85 | 28.00 | 276.21 | 0.4730 | -831.0 | -673.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 4.77 | 161.78 | 27.93 | 277.85 | 0.4731 | -843.0 | -685.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 3.06 | 161.58 | 27.73 | 274.24 | 0.4679 | -737.0 | -581.1 | |
| 1.20 | 2.57 | 0.67 | 1.44 | 4.39 | 161.39 | 27.54 | 277.13 | 0.4666 | -898.9 | -642.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 4.60 | 161.37 | 27.52 | 277.58 | 0.4666 | -355.0 | -337.1 | |
| 3.08 | 5.13 | 1.72 | 2.86 | 5.14 | 160.99 | 27.14 | 278.83 | 0.4617 | -957.1 | -675.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 5.37 | 161.00 | 27.15 | 279.34 | 0.4624 | -760.0 | -570.5 | |
| 2.14 | 24.89 | 1.19 | 13.80 | 3.72 | 160.67 | 26.82 | 275.81 | 0.4544 | 519.5 | 118.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 5.17 | 160.69 | 26.84 | 278.99 | 0.4572 | -681.0 | -582.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 4.58 | 160.63 | 26.78 | 277.71 | 0.4552 | -1084.0 | -844.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 5.56 | 160.51 | 26.66 | 279.89 | 0.4553 | -497.0 | -338.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 3.10 | 160.35 | 26.50 | 274.49 | 0.4488 | 543.0 | 481.9 | |
| 7.01 | -22.00 | 3.88 | -22.00 | 3.57 | 160.26 | 26.41 | 275.56 | 0.4480 | 883.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 4.35 | 160.26 | 26.41 | 277.28 | 0.4490 | -853.0 | -622.2 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 3.02 | 159.88 | 26.03 | 274.36 | 0.4414 | 658.0 | 553.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 3.28 | 159.82 | 25.97 | 274.98 | 0.4408 | 750.0 | 588.8 | |
| 5.05 | 44.83 | 2.78 | 24.66 | 4.88 | 159.75 | 25.90 | 278.62 | 0.4421 | 874.8 | -169.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 4.23 | 159.59 | 25.74 | 277.19 | 0.4384 | 833.0 | 695.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 3.26 | 159.56 | 25.71 | 274.96 | 0.4366 | 675.0 | 434.3 | |
| 4.45 | 7.70 | 2.44 | 4.23 | 2.93 | 159.42 | 25.57 | 274.23 | 0.4341 | 1011.1 | 810.5 | |
| 0.00 | 2.57 | 0.00 | 1.41 | 5.48 | 159.45 | 25.60 | 280.06 | 0.4386 | -1069.0 | -824.0 | |
| 9.24 | -31.00 | 5.07 | -31.00 | 4.83 | 159.12 | 25.27 | 278.68 | 0.4322 | -1110.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 5.69 | 159.03 | 25.18 | 280.69 | 0.4327 | -957.0 | -744.2 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 5.90 | 158.78 | 24.93 | 281.27 | 0.4293 | -795.0 | -672.7 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 3.30 | 158.51 | 24.66 | 275.23 | 0.4201 | 829.0 | 707.1 | |
| 0.68 | 1.80 | 0.37 | 0.98 | 4.48 | 158.49 | 24.64 | 278.05 | 0.4215 | 653.0 | 519.6 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 5.61 | 158.47 | 24.62 | 280.71 | 0.4237 | 421.0 | 249.3 | |
| 0.00 | 4.88 | 0.00 | 2.65 | 5.64 | 157.85 | 24.00 | 281.03 | 0.4142 | 583.0 | 411.6 | |
| 0.00 | 8.64 | 0.00 | 4.69 | 3.99 | 157.75 | 23.90 | 277.05 | 0.4090 | 610.0 | 146.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 3.10 | 157.63 | 23.78 | 274.90 | 0.4059 | 877.0 | 749.5 | |
| 0.00 | 2.31 | 0.00 | 1.25 | 3.63 | 157.42 | 23.57 | 276.27 | 0.4032 | 710.0 | 541.2 | |
| 1.03 | 19.85 | 0.56 | 10.73 | 4.67 | 157.39 | 23.54 | 278.84 | 0.4045 | 813.9 | 354.9 | |
| 0.00 | 2.40 | 0.00 | 1.30 | 5.83 | 157.34 | 23.49 | 281.69 | 0.4066 | 779.0 | 651.8 | |
| 5.82 | 23.87 | 3.13 | 12.85 | 3.46 | 156.96 | 23.11 | 275.93 | 0.3956 | 1005.8 | 576.8 | |
| 0.77 | 3.08 | 0.42 | 1.66 | 5.68 | 156.97 | 23.13 | 281.49 | 0.4005 | 759.8 | 659.4 | |
| 0.00 | 6.33 | 0.00 | 3.41 | 5.48 | 156.77 | 22.92 | 281.07 | 0.3968 | 773.0 | 581.9 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 5.92 | 156.76 | 22.91 | 282.18 | 0.3978 | 549.0 | 460.9 | |
| 3.08 | -48.00 | 1.66 | -48.00 | 3.37 | 156.64 | 22.79 | 275.79 | 0.3903 | 1078.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 5.95 | 156.57 | 22.72 | 282.35 | 0.3949 | 535.0 | 471.5 | |
| 5.82 | 35.50 | 3.13 | 19.07 | 5.48 | 156.32 | 22.47 | 281.27 | 0.3897 | 1059.3 | 790.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 4.00 | 156.27 | 22.42 | 277.49 | 0.3854 | 1045.0 | 830.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 6.43 | 156.30 | 22.45 | 283.68 | 0.3922 | 749.0 | 541.7 | |
| 3.08 | -54.00 | 1.65 | -54.00 | 5.57 | 156.20 | 22.35 | 281.56 | 0.3879 | 1249.7 | 999999 | |
| 2.91 | -54.00 | 1.56 | -54.00 | 5.36 | 156.03 | 22.18 | 281.11 | 0.3847 | 1217.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 7.32 | 156.12 | 22.27 | 286.01 | 0.3927 | 653.0 | 594.0 | |
| 1.63 | 71.94 | 0.87 | 38.35 | 5.93 | 155.89 | 22.04 | 282.62 | 0.3842 | 792.5 | 524.8 | |
| 2.82 | -60.00 | 1.51 | -60.00 | 5.64 | 155.56 | 21.71 | 282.03 | 0.3780 | 1123.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 4.15 | 155.47 | 21.62 | 278.15 | 0.3729 | 1006.0 | 807.7 | |
| 16.08 | -60.00 | 8.57 | -60.00 | 5.31 | 155.10 | 21.25 | 281.40 | 0.3697 | 1260.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
