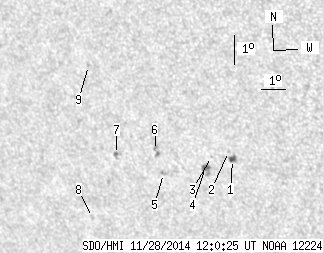

SDO HMI 2014-11-28 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.11 | 22.83 | 2.79 | 15.94 | -23.40 | 94.88 | -38.42 | 125.92 | 0.7061 | 87.0 | -16.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 3.76 | 1.44 | 2.54 | -23.36 | 97.36 | -35.94 | 127.42 | 0.6808 | 805.0 | 682.8 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -23.10 | 97.28 | -36.02 | 127.04 | 0.6800 | 457.0 | 356.9 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -23.27 | 96.55 | -36.76 | 126.77 | 0.6886 | 370.0 | 513.3 | |
| 1.97 | 6.76 | 1.35 | 4.64 | -23.64 | 96.18 | -37.12 | 126.99 | 0.6945 | 809.4 | 622.9 | |
| 0.00 | 2.14 | 0.00 | 1.51 | -23.86 | 94.38 | -38.92 | 126.13 | 0.7138 | 369.0 | 309.7 | |
| 0.00 | 3.59 | 0.00 | 2.52 | -23.11 | 94.35 | -38.95 | 125.18 | 0.7098 | -639.0 | -687.5 | |
| 0.00 | 2.82 | 0.00 | 2.03 | -23.26 | 92.62 | -40.68 | 124.38 | 0.7280 | -733.0 | -505.3 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -25.35 | 90.72 | -42.58 | 125.88 | 0.7570 | -503.0 | -411.1 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -20.40 | 92.43 | -40.87 | 120.67 | 0.7154 | -721.0 | -545.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
