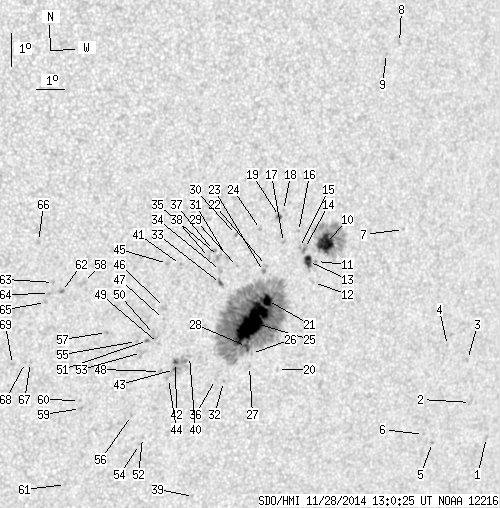

SDO HMI 2014-11-28 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.00 | 560.65 | 57.30 | 340.31 | -13.69 | 165.03 | 32.28 | 243.83 | 0.5803 | 498.8 | 306.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.15 | -17.81 | 174.84 | 42.09 | 243.31 | 0.7166 | 522.0 | 387.4 | |
| 0.00 | 2.05 | 0.00 | 1.42 | -16.70 | 173.87 | 41.12 | 244.34 | 0.7012 | 538.0 | 380.4 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -15.36 | 173.42 | 40.66 | 245.95 | 0.6904 | 646.0 | 570.4 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -14.92 | 172.51 | 39.76 | 246.15 | 0.6780 | 592.0 | 467.4 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -17.93 | 172.65 | 39.89 | 242.09 | 0.6929 | 740.0 | 647.4 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -17.67 | 172.21 | 39.46 | 242.21 | 0.6869 | 672.0 | 566.8 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -11.34 | 170.13 | 37.38 | 250.29 | 0.6346 | 749.0 | 622.9 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -5.72 | 169.35 | 36.60 | 258.88 | 0.6068 | 646.0 | 464.2 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -6.04 | 168.89 | 36.14 | 258.22 | 0.6014 | 604.0 | 541.2 | |
| 18.65 | 73.98 | 11.51 | 45.73 | -11.73 | 167.27 | 34.52 | 248.34 | 0.5993 | 930.3 | 237.1 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -12.27 | 167.02 | 34.27 | 247.35 | 0.5985 | 473.0 | 384.6 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -12.91 | 167.01 | 34.25 | 246.33 | 0.6013 | 496.0 | 347.1 | |
| 5.30 | 8.72 | 3.26 | 5.36 | -12.26 | 166.73 | 33.97 | 247.19 | 0.5946 | 916.4 | 626.7 | |
| 0.00 | 3.76 | 0.00 | 2.30 | -11.87 | 166.52 | 33.77 | 247.72 | 0.5901 | 1025.0 | 832.6 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -11.83 | 166.34 | 33.58 | 247.67 | 0.5875 | 794.0 | 638.2 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -11.35 | 166.24 | 33.48 | 248.40 | 0.5840 | 684.0 | 474.8 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -11.67 | 165.74 | 32.98 | 247.60 | 0.5789 | 632.0 | 450.8 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -10.70 | 165.61 | 32.86 | 249.13 | 0.5728 | 676.0 | 557.4 | |
| 1.11 | 2.57 | 0.67 | 1.55 | -10.88 | 165.49 | 32.74 | 248.77 | 0.5720 | 937.8 | 759.1 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -15.56 | 166.13 | 33.38 | 241.70 | 0.6042 | -598.0 | -486.0 | |
| 7.01 | 368.62 | 4.27 | 223.78 | -13.44 | 165.41 | 32.66 | 244.56 | 0.5835 | 991.0 | 443.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -12.37 | 165.22 | 32.47 | 246.17 | 0.5754 | 567.0 | 530.5 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -12.55 | 165.14 | 32.38 | 245.82 | 0.5753 | 800.0 | 677.0 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -11.27 | 164.86 | 32.11 | 247.77 | 0.5653 | 843.0 | 649.0 | |
| 56.88 | -21.00 | 34.55 | -21.00 | -14.10 | 164.97 | 32.22 | 243.21 | 0.5815 | 1283.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -15.06 | 165.09 | 32.34 | 241.79 | 0.5884 | 355.0 | 411.8 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -15.46 | 165.09 | 32.34 | 241.17 | 0.5907 | 523.0 | 440.5 | |
| 2.74 | -21.00 | 1.67 | -21.00 | -14.84 | 164.87 | 32.12 | 241.98 | 0.5844 | 779.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -12.38 | 164.18 | 31.43 | 245.50 | 0.5619 | 740.0 | 583.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -11.41 | 164.03 | 31.27 | 247.04 | 0.5548 | -578.0 | -457.3 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -12.10 | 163.79 | 31.04 | 245.72 | 0.5553 | 220.0 | 219.5 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -15.91 | 164.23 | 31.47 | 239.86 | 0.5828 | 782.0 | 664.2 | |
| 0.94 | 1.80 | 0.56 | 1.07 | -12.89 | 163.65 | 30.90 | 244.30 | 0.5577 | 797.2 | 637.7 | |
| 0.00 | 2.57 | 0.00 | 1.52 | -12.50 | 163.60 | 30.84 | 244.93 | 0.5548 | 749.0 | 538.8 | |
| 0.00 | 3.16 | 0.00 | 1.87 | -12.07 | 163.47 | 30.72 | 245.57 | 0.5508 | 22.0 | -51.6 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -15.84 | 163.93 | 31.17 | 239.74 | 0.5787 | 778.0 | 612.9 | |
| 0.00 | 2.05 | 0.00 | 1.21 | -11.89 | 163.27 | 30.52 | 245.75 | 0.5472 | -598.0 | -498.1 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -12.10 | 163.16 | 30.40 | 245.32 | 0.5468 | -607.0 | -489.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -19.50 | 163.83 | 31.07 | 234.20 | 0.6021 | -460.0 | -436.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -15.12 | 162.88 | 30.12 | 240.10 | 0.5611 | 232.0 | 200.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -12.30 | 162.17 | 29.42 | 244.29 | 0.5347 | -727.0 | -588.8 | |
| 0.94 | 13.94 | 0.56 | 8.31 | -15.30 | 162.41 | 29.66 | 239.45 | 0.5563 | -714.4 | 65.9 | |
| 0.43 | -42.00 | 0.25 | -42.00 | -15.52 | 162.41 | 29.65 | 239.11 | 0.5578 | -517.2 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -15.79 | 162.24 | 29.49 | 238.53 | 0.5575 | -365.0 | -389.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -12.26 | 161.71 | 28.96 | 244.03 | 0.5284 | -729.0 | -558.5 | |
| 0.00 | 3.16 | 0.00 | 1.86 | -13.60 | 161.78 | 29.03 | 241.77 | 0.5374 | -643.0 | -416.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -13.97 | 161.79 | 29.04 | 241.16 | 0.5399 | -518.0 | -355.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -15.57 | 161.92 | 29.17 | 238.63 | 0.5521 | -584.0 | -444.0 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -14.71 | 161.72 | 28.97 | 239.88 | 0.5438 | -453.0 | -397.5 | |
| 0.00 | 6.41 | 0.00 | 3.77 | -14.43 | 161.54 | 28.79 | 240.20 | 0.5397 | -545.0 | -532.5 | |
| 0.00 | 1.80 | 0.00 | 1.05 | -14.61 | 161.33 | 28.57 | 239.72 | 0.5381 | -858.0 | -709.2 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -17.62 | 161.62 | 28.87 | 235.16 | 0.5629 | -568.0 | -433.0 | |
| 0.00 | 5.82 | 0.00 | 3.41 | -14.98 | 161.17 | 28.41 | 238.98 | 0.5385 | -628.0 | -451.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -17.84 | 161.56 | 28.80 | 234.76 | 0.5637 | -691.0 | -569.9 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -14.64 | 160.95 | 28.19 | 239.36 | 0.5334 | -787.0 | -689.7 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -16.93 | 161.12 | 28.36 | 235.79 | 0.5518 | -732.0 | -504.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -14.35 | 159.87 | 27.12 | 238.93 | 0.5177 | -829.0 | -761.4 | |
| 0.00 | 2.91 | 0.00 | 1.65 | -12.81 | 158.90 | 26.15 | 240.79 | 0.4944 | -626.0 | -447.4 | |
| 0.00 | 1.97 | 0.00 | 1.15 | -16.69 | 159.30 | 26.55 | 234.51 | 0.5280 | -784.0 | -658.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -16.44 | 159.23 | 26.48 | 234.84 | 0.5252 | -630.0 | -602.6 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -19.06 | 159.16 | 26.41 | 230.66 | 0.5457 | -656.0 | -494.6 | |
| 0.00 | 1.88 | 0.00 | 1.07 | -13.07 | 158.19 | 25.44 | 239.66 | 0.4868 | -887.0 | -789.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -12.80 | 157.89 | 25.14 | 239.89 | 0.4808 | -872.0 | -693.2 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -13.13 | 157.79 | 25.04 | 239.18 | 0.4819 | -914.0 | -690.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -13.40 | 157.69 | 24.93 | 238.58 | 0.4826 | -818.0 | -721.0 | |
| 0.00 | 2.31 | 0.00 | 1.29 | -11.54 | 157.27 | 24.51 | 241.68 | 0.4637 | -676.0 | -589.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -15.24 | 157.40 | 24.64 | 235.02 | 0.4930 | -654.0 | -504.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -15.24 | 157.23 | 24.48 | 234.85 | 0.4909 | -875.0 | -752.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -15.30 | 156.80 | 24.05 | 234.29 | 0.4860 | -821.0 | -675.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
