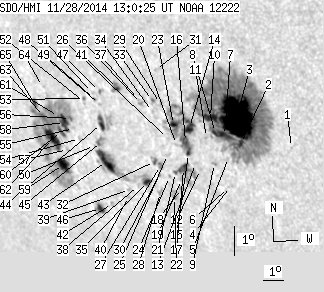

SDO HMI 2014-11-28 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 225.09 | 911.47 | 186.47 | 753.37 | -19.50 | 82.85 | -49.90 | 115.77 | 0.8008 | 114.7 | 64.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.44 | -19.88 | 88.73 | -44.03 | 118.47 | 0.7458 | 571.0 | 500.0 | |
| 3.85 | 458.77 | 2.96 | 350.81 | -19.79 | 86.48 | -46.28 | 117.39 | 0.7682 | 533.8 | 314.4 | |
| 89.98 | -2.00 | 68.75 | -2.00 | -18.97 | 86.60 | -46.15 | 116.42 | 0.7639 | 909.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -21.17 | 85.46 | -47.30 | 118.66 | 0.7832 | 359.0 | 410.6 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -20.24 | 85.75 | -47.01 | 117.65 | 0.7771 | -202.0 | -159.3 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -21.21 | 85.35 | -47.40 | 118.66 | 0.7844 | 490.0 | 424.0 | |
| 9.58 | -2.00 | 7.45 | -2.00 | -19.55 | 85.84 | -46.92 | 116.83 | 0.7737 | -612.5 | 999999 | |
| 2.39 | -2.00 | 1.88 | -2.00 | -19.46 | 85.45 | -47.30 | 116.58 | 0.7771 | 304.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.36 | -20.45 | 85.01 | -47.74 | 117.61 | 0.7849 | -648.0 | -602.8 | |
| 8.89 | -2.00 | 6.95 | -2.00 | -18.99 | 85.40 | -47.35 | 115.98 | 0.7760 | 388.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.02 | -19.62 | 84.97 | -47.79 | 116.59 | 0.7825 | -312.0 | -245.3 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -20.65 | 84.26 | -48.50 | 117.56 | 0.7928 | -250.0 | -233.1 | |
| 0.00 | 1.88 | 0.00 | 1.52 | -20.46 | 84.10 | -48.66 | 117.28 | 0.7937 | -258.0 | -222.0 | |
| 8.64 | 75.52 | 6.92 | 61.03 | -19.32 | 84.29 | -48.47 | 115.97 | 0.7881 | 582.6 | -148.9 | |
| 1.80 | -14.00 | 1.46 | -14.00 | -20.15 | 83.90 | -48.86 | 116.82 | 0.7945 | -725.5 | 999999 | |
| 4.53 | -14.00 | 3.67 | -14.00 | -19.77 | 83.91 | -48.84 | 116.37 | 0.7931 | -43.0 | 999999 | |
| 6.67 | 22.49 | 5.48 | 18.48 | -20.63 | 83.44 | -49.31 | 117.24 | 0.8004 | 688.4 | 120.2 | |
| 0.00 | 1.63 | 0.00 | 1.35 | -21.28 | 83.05 | -49.70 | 117.86 | 0.8061 | -539.0 | -497.1 | |
| 0.00 | 1.63 | 0.00 | 1.35 | -20.99 | 83.19 | -49.57 | 117.56 | 0.8039 | -208.0 | -109.9 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -19.87 | 83.43 | -49.32 | 116.32 | 0.7980 | 234.0 | 234.2 | |
| 0.68 | -17.00 | 0.57 | -17.00 | -20.77 | 82.99 | -49.76 | 117.23 | 0.8050 | 473.8 | 999999 | |
| 0.43 | 5.90 | 0.36 | 4.97 | -21.57 | 82.57 | -50.19 | 118.03 | 0.8115 | -717.2 | -438.0 | |
| 3.59 | -14.00 | 2.92 | -14.00 | -19.24 | 83.55 | -49.20 | 115.60 | 0.7948 | 477.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.93 | -20.90 | 82.63 | -50.12 | 117.26 | 0.8087 | 407.0 | 285.1 | |
| 0.00 | 1.80 | 0.00 | 1.49 | -20.20 | 82.85 | -49.90 | 116.51 | 0.8045 | -289.0 | -282.7 | |
| 0.00 | 1.20 | 0.00 | 0.99 | -19.69 | 83.08 | -49.68 | 115.98 | 0.8008 | -362.0 | -328.4 | |
| 1.20 | 7.27 | 1.01 | 6.12 | -20.56 | 82.35 | -50.41 | 116.75 | 0.8103 | 642.7 | 350.7 | |
| 0.00 | 2.57 | 0.00 | 2.19 | -21.42 | 81.93 | -50.82 | 117.63 | 0.8167 | 442.0 | 352.9 | |
| 0.00 | 2.22 | 0.00 | 1.81 | -18.58 | 83.19 | -49.56 | 114.69 | 0.7963 | -692.0 | -431.1 | |
| 0.00 | 1.11 | 0.00 | 0.94 | -20.85 | 82.16 | -50.59 | 117.03 | 0.8129 | 227.0 | 248.2 | |
| 0.00 | 1.11 | 0.00 | 0.90 | -17.51 | 83.36 | -49.39 | 113.45 | 0.7915 | 513.0 | 373.8 | |
| 1.54 | -27.00 | 1.30 | -27.00 | -20.43 | 82.10 | -50.65 | 116.52 | 0.8121 | 389.6 | 999999 | |
| 0.68 | 2.14 | 0.56 | 1.75 | -18.49 | 82.84 | -49.92 | 114.46 | 0.7994 | -551.8 | -247.5 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -18.84 | 82.70 | -50.06 | 114.83 | 0.8018 | -99.0 | -63.1 | |
| 3.51 | 54.14 | 3.02 | 47.87 | -21.08 | 81.44 | -51.31 | 117.06 | 0.8201 | 246.7 | -433.7 | |
| 0.00 | 2.14 | 0.00 | 1.78 | -18.60 | 82.26 | -50.50 | 114.40 | 0.8053 | -222.0 | -165.9 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -18.47 | 82.16 | -50.59 | 114.22 | 0.8058 | 273.0 | 229.1 | |
| 0.00 | 1.37 | 0.00 | 1.19 | -21.22 | 80.91 | -51.84 | 117.04 | 0.8251 | -211.0 | -104.7 | |
| 0.00 | 1.37 | 0.00 | 1.21 | -21.36 | 80.37 | -52.38 | 117.02 | 0.8302 | 249.0 | 83.3 | |
| 0.00 | 1.11 | 0.00 | 0.99 | -21.58 | 80.20 | -52.55 | 117.22 | 0.8324 | -408.0 | -357.7 | |
| 1.71 | 7.10 | 1.45 | 6.02 | -18.14 | 81.25 | -51.50 | 113.53 | 0.8134 | -856.0 | -682.3 | |
| 0.00 | 2.14 | 0.00 | 1.95 | -21.82 | 79.22 | -53.53 | 117.19 | 0.8414 | -722.0 | -568.5 | |
| 15.57 | -35.00 | 13.91 | -35.00 | -20.48 | 79.61 | -53.14 | 115.76 | 0.8345 | -748.7 | 999999 | |
| 5.90 | 17.53 | 5.19 | 15.34 | -19.27 | 79.93 | -52.82 | 114.45 | 0.8284 | -625.7 | -553.6 | |
| 0.00 | 6.50 | 0.00 | 5.78 | -19.84 | 79.66 | -53.09 | 115.04 | 0.8323 | -675.0 | -697.0 | |
| 4.19 | 10.01 | 3.89 | 9.31 | -22.00 | 78.47 | -54.28 | 117.15 | 0.8481 | -676.1 | -389.8 | |
| 0.51 | 2.48 | 0.44 | 2.14 | -18.25 | 80.29 | -52.47 | 113.37 | 0.8226 | -668.2 | -521.2 | |
| 0.00 | 1.20 | 0.00 | 1.04 | -18.67 | 80.11 | -52.65 | 113.80 | 0.8253 | -727.0 | -672.1 | |
| 0.00 | 1.20 | 0.00 | 1.05 | -18.51 | 79.92 | -52.84 | 113.56 | 0.8267 | -590.0 | -523.8 | |
| 0.00 | 1.54 | 0.00 | 1.38 | -19.97 | 79.22 | -53.53 | 115.06 | 0.8365 | -496.0 | -414.6 | |
| 0.00 | 0.68 | 0.00 | 0.60 | -18.29 | 79.91 | -52.84 | 113.31 | 0.8262 | -547.0 | -512.0 | |
| 0.00 | 1.28 | 0.00 | 1.14 | -18.62 | 79.35 | -53.41 | 113.52 | 0.8320 | -330.0 | -363.3 | |
| 0.51 | 1.37 | 0.45 | 1.21 | -18.49 | 79.35 | -53.40 | 113.37 | 0.8317 | -479.0 | -416.3 | |
| 0.00 | 1.28 | 0.00 | 1.17 | -19.77 | 78.52 | -54.23 | 114.61 | 0.8420 | -571.0 | -545.1 | |
| 0.00 | 1.28 | 0.00 | 1.17 | -19.45 | 78.36 | -54.40 | 114.20 | 0.8427 | -631.0 | -505.8 | |
| 1.20 | 194.32 | 1.09 | 183.62 | -19.14 | 78.35 | -54.40 | 113.84 | 0.8420 | -695.2 | -18.9 | |
| 0.00 | 1.88 | 0.00 | 1.76 | -20.13 | 77.68 | -55.08 | 114.79 | 0.8501 | -688.0 | -575.4 | |
| 8.89 | -56.00 | 8.21 | -56.00 | -19.27 | 77.96 | -54.80 | 113.88 | 0.8457 | -784.1 | 999999 | |
| 11.03 | -56.00 | 10.48 | -56.00 | -20.61 | 77.19 | -55.56 | 115.20 | 0.8552 | -511.8 | 999999 | |
| 4.19 | -56.00 | 3.90 | -56.00 | -19.56 | 77.64 | -55.11 | 114.13 | 0.8490 | -577.5 | 999999 | |
| 0.51 | -56.00 | 0.48 | -56.00 | -19.09 | 77.72 | -55.03 | 113.60 | 0.8473 | -521.8 | 999999 | |
| 15.99 | -56.00 | 15.15 | -56.00 | -19.79 | 77.02 | -55.73 | 114.22 | 0.8548 | -464.4 | 999999 | |
| 4.36 | -56.00 | 4.13 | -56.00 | -19.10 | 76.88 | -55.87 | 113.40 | 0.8544 | 366.3 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.48 | -18.15 | 77.30 | -55.46 | 112.42 | 0.8488 | 355.0 | 327.8 | |
| 2.57 | -56.00 | 2.44 | -56.00 | -18.70 | 76.58 | -56.17 | 112.86 | 0.8560 | 424.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
