SDO HMI 2014-11-28 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.39 | 39.42 | 2.95 | 21.47 | 17.14 | 151.70 | 18.95 | 311.58 | 0.4169 | -35.8 | -41.5 | |
|
previous
or next observation for the same group /

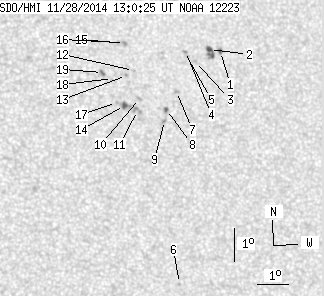

back to the solar disc SDO HMI 2014-11-28 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 1.97 | 0.62 | 1.09 | 18.06 | 153.77 | 21.02 | 310.48 | 0.4502 | 793.5 | 550.2 | |
| 1.97 | 8.04 | 1.09 | 4.44 | 18.12 | 153.42 | 20.66 | 311.05 | 0.4466 | 802.1 | 847.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 17.76 | 152.91 | 20.15 | 311.07 | 0.4370 | 778.0 | 561.8 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 17.94 | 152.66 | 19.91 | 311.73 | 0.4360 | 869.0 | 678.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 18.07 | 152.58 | 19.83 | 312.07 | 0.4362 | 790.0 | 621.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 11.02 | 151.76 | 19.01 | 298.18 | 0.3643 | 731.0 | 561.5 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 16.84 | 152.18 | 19.42 | 310.35 | 0.4194 | 875.0 | 709.5 | |
| 0.86 | 2.22 | 0.46 | 1.21 | 16.29 | 151.79 | 19.04 | 309.83 | 0.4094 | 713.3 | 480.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 15.95 | 151.69 | 18.94 | 309.30 | 0.4050 | 723.0 | 651.8 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 16.63 | 150.95 | 18.19 | 311.73 | 0.4026 | -704.0 | -467.8 | |
| 0.00 | 4.19 | 0.00 | 2.26 | 16.27 | 150.85 | 18.09 | 311.16 | 0.3977 | -613.0 | -757.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 17.49 | 150.84 | 18.09 | 313.53 | 0.4101 | -677.0 | -554.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 17.34 | 150.60 | 17.84 | 313.62 | 0.4057 | -838.0 | -640.4 | |
| 1.45 | 3.25 | 0.78 | 1.75 | 16.42 | 150.44 | 17.69 | 312.09 | 0.3944 | -1059.8 | -846.6 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 18.33 | 150.64 | 17.88 | 315.37 | 0.4166 | -931.0 | -762.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 18.36 | 150.44 | 17.69 | 315.72 | 0.4148 | -781.0 | -633.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 16.52 | 150.19 | 17.44 | 312.66 | 0.3924 | -760.0 | -584.8 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 17.25 | 150.13 | 17.38 | 314.17 | 0.3994 | -537.0 | -503.5 | |
| 0.00 | 2.65 | 0.00 | 1.43 | 17.44 | 149.83 | 17.07 | 315.02 | 0.3979 | -1184.0 | -885.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
