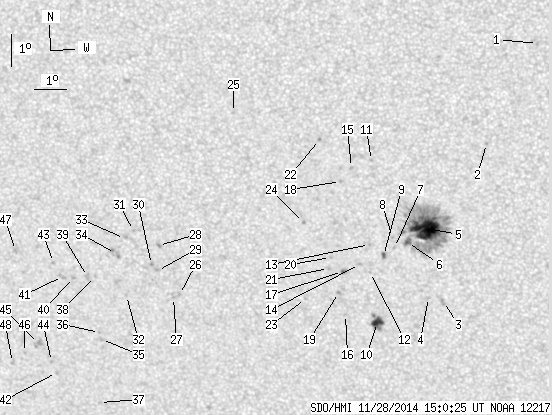

SDO HMI 2014-11-28 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.15 | 240.44 | 29.08 | 127.88 | -18.22 | 123.77 | -7.88 | 159.62 | 0.3625 | 452.6 | 181.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.91 | 129.64 | -2.01 | 171.40 | 0.2308 | 904.0 | 621.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -14.97 | 128.05 | -3.60 | 167.71 | 0.2866 | 995.0 | 848.5 | |
| 0.00 | 3.25 | 0.00 | 1.73 | -19.91 | 126.59 | -5.07 | 167.02 | 0.3713 | 705.0 | 612.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -19.78 | 126.12 | -5.53 | 165.78 | 0.3711 | 646.0 | 548.9 | |
| 46.00 | 154.77 | 24.19 | 81.38 | -17.61 | 126.13 | -5.52 | 164.13 | 0.3369 | 1226.7 | 377.0 | |
| 1.28 | -5.00 | 0.68 | -5.00 | -18.05 | 125.52 | -6.13 | 162.89 | 0.3466 | 843.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.21 | 125.11 | -6.54 | 161.96 | 0.3511 | 811.0 | 630.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.89 | 125.06 | -6.59 | 161.53 | 0.3465 | 782.0 | 637.1 | |
| 1.03 | 2.39 | 0.54 | 1.27 | -18.46 | 124.76 | -6.90 | 161.29 | 0.3568 | 843.4 | 577.8 | |
| 6.50 | 13.42 | 3.49 | 7.22 | -20.58 | 124.47 | -7.18 | 162.49 | 0.3908 | 1076.5 | 784.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.50 | 124.50 | -7.16 | 157.33 | 0.3129 | 807.0 | 563.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -18.99 | 124.32 | -7.33 | 160.74 | 0.3674 | 637.0 | 537.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -18.11 | 124.33 | -7.32 | 159.88 | 0.3539 | -654.0 | -548.0 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -18.74 | 123.99 | -7.67 | 159.68 | 0.3654 | 967.0 | 742.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -15.72 | 123.87 | -7.78 | 155.87 | 0.3203 | 951.0 | 792.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -20.32 | 123.46 | -8.19 | 159.99 | 0.3922 | 826.0 | 610.3 | |
| 0.34 | 2.57 | 0.18 | 1.37 | -18.96 | 123.44 | -8.21 | 158.60 | 0.3719 | 1025.5 | 904.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.15 | 123.51 | -8.14 | 155.48 | 0.3293 | 1005.0 | 808.9 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -19.63 | 123.28 | -8.38 | 158.90 | 0.3828 | 993.0 | 778.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.52 | 123.08 | -8.57 | 157.28 | 0.3675 | 802.0 | 669.5 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.87 | 123.00 | -8.65 | 157.47 | 0.3732 | 889.0 | 614.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -14.85 | 122.91 | -8.74 | 152.03 | 0.3146 | 993.0 | 804.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -19.82 | 122.22 | -9.44 | 156.73 | 0.3921 | 507.0 | 579.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.43 | 122.29 | -9.36 | 154.08 | 0.3567 | 918.0 | 786.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -14.03 | 120.29 | -11.37 | 143.93 | 0.3263 | 938.0 | 722.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.71 | 118.19 | -13.47 | 148.41 | 0.4204 | -958.0 | -758.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.80 | 117.98 | -13.67 | 148.16 | 0.4233 | -846.0 | -669.9 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -18.16 | 117.64 | -14.01 | 145.22 | 0.4050 | -943.0 | -782.3 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -18.95 | 117.54 | -14.11 | 146.17 | 0.4160 | -916.0 | -701.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -18.76 | 117.37 | -14.29 | 145.58 | 0.4152 | -962.0 | -813.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -17.70 | 116.88 | -14.78 | 143.09 | 0.4063 | -862.0 | -699.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.75 | 116.46 | -15.19 | 145.36 | 0.4358 | -586.0 | -468.5 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -17.95 | 116.57 | -15.09 | 142.92 | 0.4124 | -649.0 | -578.0 | |
| 0.00 | 5.73 | 0.00 | 3.13 | -18.42 | 116.23 | -15.42 | 143.05 | 0.4214 | -799.0 | -790.9 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -21.15 | 115.49 | -16.16 | 145.65 | 0.4619 | -757.0 | -606.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -20.93 | 115.45 | -16.20 | 145.28 | 0.4595 | -814.0 | -724.9 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -23.18 | 115.18 | -16.47 | 147.70 | 0.4898 | -634.0 | -465.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.15 | 115.51 | -16.14 | 142.90 | 0.4372 | -847.0 | -674.4 | |
| 0.00 | 3.42 | 0.00 | 1.88 | -19.15 | 115.25 | -16.40 | 142.47 | 0.4397 | -807.0 | -718.7 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -19.18 | 114.79 | -16.86 | 141.76 | 0.4446 | -898.0 | -707.0 | |
| 0.00 | 3.33 | 0.00 | 1.85 | -19.16 | 114.43 | -17.22 | 141.15 | 0.4477 | -662.0 | -666.5 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -22.22 | 113.86 | -17.79 | 144.52 | 0.4893 | -740.0 | -537.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.72 | 114.19 | -17.47 | 140.10 | 0.4450 | -799.0 | -645.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.87 | 113.74 | -17.91 | 143.88 | 0.4862 | -664.0 | -576.5 | |
| 0.00 | 5.22 | 0.00 | 2.95 | -21.29 | 113.38 | -18.27 | 142.58 | 0.4827 | -860.0 | -721.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.58 | 112.88 | -18.78 | 142.24 | 0.4908 | -613.0 | -540.8 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -18.35 | 112.98 | -18.67 | 137.68 | 0.4533 | -761.0 | -599.7 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -21.91 | 112.43 | -19.23 | 142.04 | 0.4987 | -641.0 | -553.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
