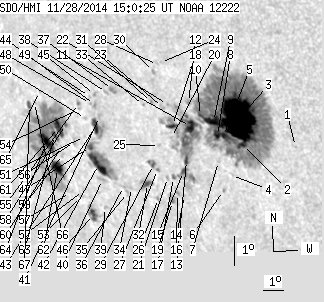

SDO HMI 2014-11-28 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 205.97 | 953.49 | 166.23 | 768.22 | -19.41 | 83.12 | -48.54 | 116.15 | 0.7874 | 152.2 | 60.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.43 | -19.74 | 88.94 | -42.71 | 118.89 | 0.7316 | 680.0 | 554.6 | |
| 2.48 | 601.56 | 1.87 | 454.96 | -19.71 | 86.63 | -45.02 | 117.81 | 0.7552 | 565.3 | 218.5 | |
| 93.46 | -2.00 | 69.85 | -2.00 | -18.88 | 86.75 | -44.91 | 116.83 | 0.7509 | 998.9 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -20.70 | 85.76 | -45.90 | 118.67 | 0.7679 | 198.0 | 231.3 | |
| 2.05 | -2.00 | 1.56 | -2.00 | -19.43 | 85.88 | -45.77 | 117.15 | 0.7618 | -693.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.00 | -21.19 | 85.20 | -46.46 | 119.03 | 0.7753 | 440.0 | 425.2 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -20.27 | 85.34 | -46.32 | 117.96 | 0.7704 | -536.0 | -412.3 | |
| 3.16 | -2.00 | 2.42 | -2.00 | -19.44 | 85.61 | -46.05 | 117.05 | 0.7646 | 147.2 | 999999 | |
| 9.32 | -2.00 | 7.12 | -2.00 | -19.00 | 85.59 | -46.07 | 116.49 | 0.7631 | 469.1 | 999999 | |
| 0.26 | -2.00 | 0.20 | -2.00 | -18.82 | 85.06 | -46.59 | 116.06 | 0.7678 | 95.7 | 999999 | |
| 10.09 | -2.00 | 7.87 | -2.00 | -19.17 | 84.47 | -47.19 | 116.27 | 0.7750 | 600.5 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.85 | -18.41 | 84.66 | -47.00 | 115.40 | 0.7705 | -167.0 | -178.5 | |
| 2.65 | -2.00 | 2.11 | -2.00 | -20.26 | 83.85 | -47.80 | 117.35 | 0.7848 | -679.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.90 | -21.38 | 83.28 | -48.38 | 118.48 | 0.7942 | -386.0 | -366.1 | |
| 2.57 | -2.00 | 2.06 | -2.00 | -20.61 | 83.56 | -48.09 | 117.67 | 0.7888 | 785.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.26 | -21.32 | 82.96 | -48.69 | 118.29 | 0.7969 | -548.0 | -470.8 | |
| 0.00 | 1.97 | 0.00 | 1.60 | -20.81 | 83.00 | -48.66 | 117.69 | 0.7948 | 442.0 | 431.7 | |
| 3.85 | -2.00 | 3.05 | -2.00 | -19.15 | 83.64 | -48.02 | 115.93 | 0.7831 | 457.0 | 999999 | |
| 0.51 | 5.99 | 0.42 | 4.92 | -21.59 | 82.60 | -49.05 | 118.46 | 0.8012 | -659.2 | -429.0 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -19.54 | 83.44 | -48.22 | 116.32 | 0.7863 | -397.0 | -377.6 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -20.82 | 82.71 | -48.95 | 117.59 | 0.7976 | 408.0 | 293.6 | |
| 0.00 | 0.68 | 0.00 | 0.54 | -18.49 | 83.65 | -48.00 | 115.13 | 0.7808 | -639.0 | -522.0 | |
| 0.00 | 2.74 | 0.00 | 2.17 | -18.59 | 83.38 | -48.27 | 115.15 | 0.7838 | -411.0 | -401.5 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -17.18 | 83.80 | -47.85 | 113.56 | 0.7751 | 634.0 | 573.6 | |
| 0.00 | 1.37 | 0.00 | 1.11 | -19.80 | 82.76 | -48.90 | 116.39 | 0.7937 | -308.0 | -303.7 | |
| 0.00 | 1.62 | 0.00 | 1.36 | -21.50 | 81.95 | -49.70 | 118.12 | 0.8068 | 368.0 | 324.3 | |
| 0.34 | 1.45 | 0.28 | 1.19 | -20.57 | 82.33 | -49.32 | 117.15 | 0.8003 | 533.2 | 374.8 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -17.24 | 83.64 | -48.01 | 113.58 | 0.7769 | 590.0 | 526.9 | |
| 1.45 | 5.30 | 1.20 | 4.37 | -20.41 | 82.20 | -49.45 | 116.92 | 0.8010 | 448.5 | 278.3 | |
| 0.00 | 1.62 | 0.00 | 1.28 | -17.46 | 83.38 | -48.28 | 113.77 | 0.7803 | 421.0 | 332.5 | |
| 0.00 | 1.20 | 0.00 | 0.96 | -18.44 | 82.92 | -48.74 | 114.80 | 0.7878 | -536.0 | -448.6 | |
| 3.33 | 7.95 | 2.79 | 6.67 | -21.03 | 81.63 | -50.02 | 117.44 | 0.8082 | 438.5 | 37.3 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -18.54 | 82.50 | -49.16 | 114.78 | 0.7922 | 382.0 | 288.6 | |
| 0.00 | 1.11 | 0.00 | 0.95 | -21.17 | 80.76 | -50.89 | 117.30 | 0.8165 | -167.0 | -205.3 | |
| 0.00 | 1.88 | 0.00 | 1.62 | -21.33 | 80.48 | -51.17 | 117.40 | 0.8196 | 244.0 | 110.8 | |
| 0.00 | 2.39 | 0.00 | 2.06 | -21.14 | 80.37 | -51.29 | 117.14 | 0.8200 | -557.0 | -443.4 | |
| 0.00 | 4.28 | 0.00 | 3.54 | -18.06 | 81.18 | -50.47 | 113.76 | 0.8035 | -842.0 | -756.4 | |
| 0.00 | 2.14 | 0.00 | 1.78 | -18.16 | 80.85 | -50.81 | 113.77 | 0.8069 | -694.0 | -580.1 | |
| 0.00 | 1.37 | 0.00 | 1.22 | -21.84 | 79.08 | -52.57 | 117.51 | 0.8333 | -629.0 | -576.8 | |
| 0.00 | 3.33 | 0.00 | 2.93 | -20.94 | 79.39 | -52.27 | 116.57 | 0.8280 | -361.0 | -264.5 | |
| 0.00 | 3.08 | 0.00 | 2.62 | -18.93 | 80.18 | -51.48 | 114.47 | 0.8153 | -614.0 | -533.0 | |
| 14.11 | 48.23 | 12.35 | 42.03 | -20.46 | 79.42 | -52.24 | 116.02 | 0.8265 | -788.3 | -594.6 | |
| 5.99 | 17.27 | 5.14 | 14.80 | -19.25 | 79.83 | -51.82 | 114.74 | 0.8194 | -655.5 | -575.2 | |
| 0.00 | 2.05 | 0.00 | 1.74 | -18.55 | 80.08 | -51.57 | 114.00 | 0.8151 | -745.0 | -687.8 | |
| 0.00 | 1.28 | 0.00 | 1.08 | -18.24 | 80.22 | -51.44 | 113.66 | 0.8130 | -737.0 | -698.1 | |
| 5.47 | 11.63 | 4.97 | 10.57 | -22.08 | 78.31 | -53.34 | 117.53 | 0.8405 | -627.7 | -441.0 | |
| 2.65 | -42.00 | 2.32 | -42.00 | -19.89 | 79.28 | -52.38 | 115.32 | 0.8261 | -838.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.73 | -18.52 | 79.89 | -51.76 | 113.90 | 0.8168 | -723.0 | -627.1 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -18.30 | 79.94 | -51.72 | 113.66 | 0.8158 | -489.0 | -493.2 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -19.00 | 79.43 | -52.23 | 114.33 | 0.8224 | -564.0 | -425.4 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -19.58 | 79.11 | -52.54 | 114.90 | 0.8267 | -388.0 | -303.0 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -21.31 | 78.19 | -53.46 | 116.62 | 0.8394 | -687.0 | -621.4 | |
| 0.00 | 1.71 | 0.00 | 1.56 | -21.51 | 77.98 | -53.67 | 116.77 | 0.8417 | -386.0 | -317.6 | |
| 0.00 | 1.03 | 0.00 | 0.89 | -18.69 | 79.26 | -52.40 | 113.91 | 0.8231 | -493.0 | -406.2 | |
| 0.51 | 1.71 | 0.44 | 1.48 | -18.54 | 79.28 | -52.38 | 113.73 | 0.8225 | -487.5 | -367.2 | |
| 0.00 | 2.22 | 0.00 | 1.98 | -19.75 | 78.51 | -53.14 | 114.91 | 0.8325 | -664.0 | -574.0 | |
| 0.00 | 0.34 | 0.00 | 0.32 | -21.39 | 77.45 | -54.21 | 116.47 | 0.8459 | -82.0 | -61.0 | |
| 1.11 | 191.28 | 0.99 | 176.02 | -19.21 | 78.29 | -53.36 | 114.23 | 0.8331 | -710.5 | -13.0 | |
| 0.00 | 1.71 | 0.00 | 1.56 | -20.17 | 77.66 | -54.00 | 115.15 | 0.8410 | -791.0 | -619.5 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -19.92 | 77.73 | -53.92 | 114.88 | 0.8397 | -493.0 | -438.8 | |
| 9.83 | -58.00 | 8.85 | -58.00 | -19.32 | 77.87 | -53.78 | 114.22 | 0.8371 | -795.4 | 999999 | |
| 11.71 | -58.00 | 10.83 | -58.00 | -20.63 | 77.15 | -54.51 | 115.52 | 0.8465 | -525.0 | 999999 | |
| 3.68 | -58.00 | 3.34 | -58.00 | -19.57 | 77.53 | -54.13 | 114.42 | 0.8407 | -598.4 | 999999 | |
| 13.42 | -58.00 | 12.38 | -58.00 | -19.77 | 76.99 | -54.66 | 114.50 | 0.8457 | -500.9 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.54 | -18.19 | 77.38 | -54.27 | 112.78 | 0.8386 | 365.0 | 329.0 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -18.54 | 76.95 | -54.71 | 113.07 | 0.8432 | 372.0 | 240.2 | |
| 1.97 | -58.00 | 1.82 | -58.00 | -18.64 | 76.63 | -55.03 | 113.10 | 0.8462 | 507.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
