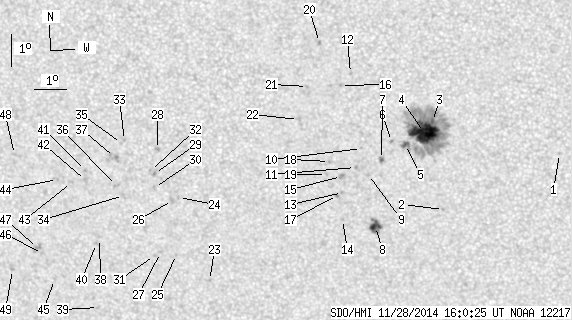

SDO HMI 2014-11-28 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.64 | 237.21 | 25.64 | 126.00 | -18.26 | 123.75 | -7.36 | 160.89 | 0.3600 | 371.6 | 196.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | -18.27 | 130.30 | -0.80 | 177.71 | 0.3352 | 808.0 | 537.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.03 | 126.63 | -4.47 | 168.58 | 0.3713 | 844.0 | 706.4 | |
| 2.65 | 154.50 | 1.39 | 81.13 | -17.27 | 126.37 | -4.73 | 166.03 | 0.3280 | 1240.0 | 417.5 | |
| 36.68 | -3.00 | 19.27 | -3.00 | -17.61 | 126.11 | -4.99 | 165.58 | 0.3346 | 1273.3 | 999999 | |
| 1.88 | -3.00 | 0.99 | -3.00 | -17.99 | 125.51 | -5.60 | 164.24 | 0.3431 | 880.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.89 | 125.07 | -6.03 | 163.01 | 0.3437 | 919.0 | 701.9 | |
| 0.68 | 2.14 | 0.36 | 1.13 | -18.46 | 124.74 | -6.37 | 162.64 | 0.3541 | 937.5 | 666.2 | |
| 6.75 | 11.97 | 3.63 | 6.43 | -20.58 | 124.46 | -6.64 | 163.73 | 0.3882 | 1067.9 | 811.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.93 | 124.31 | -6.79 | 161.99 | 0.3635 | 686.0 | 591.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -18.11 | 124.12 | -6.98 | 160.76 | 0.3519 | -613.0 | -446.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.71 | 123.91 | -7.19 | 160.80 | 0.3622 | 953.0 | 774.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -15.78 | 123.87 | -7.23 | 157.48 | 0.3176 | 893.0 | 696.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.50 | 123.46 | -7.64 | 160.48 | 0.3767 | 809.0 | 617.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -20.36 | 123.42 | -7.68 | 161.17 | 0.3899 | 806.0 | 659.5 | |
| 0.00 | 2.74 | 0.00 | 1.46 | -18.99 | 123.46 | -7.65 | 159.98 | 0.3691 | 1067.0 | 848.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.15 | 123.55 | -7.55 | 157.06 | 0.3253 | 936.0 | 686.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.59 | 123.30 | -7.80 | 160.19 | 0.3790 | 886.0 | 845.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.52 | 123.10 | -8.00 | 158.64 | 0.3640 | 683.0 | 645.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.93 | 122.99 | -8.12 | 158.79 | 0.3708 | 816.0 | 639.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -14.82 | 122.95 | -8.15 | 153.59 | 0.3096 | 948.0 | 811.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.18 | 122.52 | -8.58 | 154.38 | 0.3328 | 773.0 | 597.7 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -17.21 | 122.19 | -8.91 | 154.89 | 0.3503 | 698.0 | 556.9 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -22.32 | 119.00 | -12.11 | 154.06 | 0.4455 | 762.0 | 637.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.67 | 118.22 | -12.88 | 149.47 | 0.4151 | -805.0 | -640.3 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -21.49 | 117.99 | -13.11 | 151.30 | 0.4413 | -588.0 | -556.8 | |
| 0.00 | 2.99 | 0.00 | 1.63 | -19.77 | 118.02 | -13.09 | 149.21 | 0.4180 | -808.0 | -666.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.43 | 117.48 | -13.63 | 150.30 | 0.4444 | -703.0 | -532.8 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -18.16 | 117.67 | -13.43 | 146.32 | 0.3998 | -934.0 | -765.7 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -18.92 | 117.51 | -13.59 | 147.10 | 0.4110 | -880.0 | -799.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -19.36 | 117.47 | -13.63 | 147.64 | 0.4171 | -756.0 | -569.8 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -21.53 | 117.27 | -13.83 | 150.05 | 0.4473 | -121.0 | -152.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.82 | 117.39 | -13.71 | 146.74 | 0.4109 | -954.0 | -757.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -17.89 | 116.63 | -14.47 | 143.94 | 0.4057 | -878.0 | -712.2 | |
| 0.00 | 2.31 | 0.00 | 1.26 | -19.62 | 116.45 | -14.66 | 146.12 | 0.4294 | -689.0 | -535.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -17.98 | 116.53 | -14.57 | 143.89 | 0.4079 | -806.0 | -650.8 | |
| 0.00 | 2.31 | 0.00 | 1.26 | -19.30 | 116.25 | -14.85 | 145.33 | 0.4271 | -737.0 | -680.4 | |
| 0.00 | 4.96 | 0.00 | 2.70 | -18.42 | 116.27 | -14.84 | 144.07 | 0.4159 | -737.0 | -765.4 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -20.99 | 115.52 | -15.58 | 146.38 | 0.4548 | -597.0 | -702.1 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -23.21 | 115.23 | -15.87 | 148.66 | 0.4853 | -685.0 | -489.9 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -21.15 | 115.41 | -15.70 | 146.40 | 0.4578 | -774.0 | -621.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -18.83 | 115.29 | -15.81 | 142.98 | 0.4302 | -923.0 | -611.7 | |
| 0.00 | 2.99 | 0.00 | 1.64 | -19.15 | 115.26 | -15.85 | 143.39 | 0.4344 | -836.0 | -743.1 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -19.21 | 114.79 | -16.31 | 142.71 | 0.4396 | -1018.0 | -748.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.12 | 114.35 | -16.76 | 141.84 | 0.4428 | -769.0 | -577.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -22.31 | 113.87 | -17.23 | 145.47 | 0.4855 | -648.0 | -519.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -21.48 | 113.58 | -17.53 | 143.94 | 0.4781 | -847.0 | -598.5 | |
| 0.00 | 4.53 | 0.00 | 2.55 | -21.32 | 113.43 | -17.67 | 143.51 | 0.4775 | -816.0 | -723.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.34 | 113.02 | -18.08 | 138.57 | 0.4470 | -786.0 | -616.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -22.00 | 112.50 | -18.60 | 143.05 | 0.4940 | -612.0 | -504.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
