SDO HMI 2014-11-28 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.45 | 707.80 | 90.97 | 406.37 | 4.07 | 161.11 | 30.01 | 276.20 | 0.5033 | -122.3 | -117.9 | |
|
previous
or next observation for the same group /

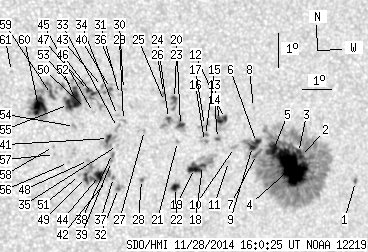

back to the solar disc SDO HMI 2014-11-28 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.71 | 0.26 | 1.03 | 3.05 | 165.77 | 34.66 | 273.60 | 0.5713 | 679.2 | 553.2 | |
| 2.22 | 419.90 | 1.31 | 246.47 | 3.81 | 163.84 | 32.73 | 275.16 | 0.5439 | -804.3 | -362.8 | |
| 2.65 | -2.00 | 1.56 | -2.00 | 3.93 | 163.77 | 32.67 | 275.39 | 0.5430 | -751.5 | 999999 | |
| 60.62 | -2.00 | 35.59 | -2.00 | 3.49 | 163.50 | 32.40 | 274.60 | 0.5387 | -1283.4 | 999999 | |
| 6.84 | -2.00 | 3.99 | -2.00 | 4.03 | 162.90 | 31.79 | 275.69 | 0.5303 | -1168.5 | 999999 | |
| 3.76 | -2.00 | 2.18 | -2.00 | 4.25 | 162.31 | 31.21 | 276.18 | 0.5219 | -971.5 | 999999 | |
| 1.71 | -2.00 | 0.99 | -2.00 | 3.89 | 162.30 | 31.20 | 275.50 | 0.5213 | -985.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 5.28 | 162.26 | 31.16 | 278.18 | 0.5226 | -692.0 | -563.2 | |
| 3.85 | -2.00 | 2.23 | -2.00 | 4.13 | 162.17 | 31.07 | 275.98 | 0.5196 | -1178.1 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.43 | 4.11 | 161.55 | 30.44 | 276.03 | 0.5103 | -606.0 | -440.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 3.69 | 161.32 | 30.22 | 275.25 | 0.5065 | -684.0 | -524.3 | |
| 2.05 | 13.17 | 1.18 | 7.54 | 4.97 | 161.24 | 30.14 | 277.78 | 0.5070 | -922.4 | -253.8 | |
| 3.42 | -12.00 | 1.96 | -12.00 | 4.91 | 161.07 | 29.97 | 277.71 | 0.5043 | -1040.7 | 999999 | |
| 0.68 | 1.80 | 0.39 | 1.03 | 4.38 | 160.98 | 29.87 | 276.67 | 0.5020 | -753.8 | -553.5 | |
| 0.00 | 2.39 | 0.00 | 1.36 | 4.47 | 160.57 | 29.47 | 276.93 | 0.4961 | -905.0 | -814.3 | |
| 0.00 | 2.82 | 0.00 | 1.61 | 4.30 | 160.53 | 29.42 | 276.58 | 0.4952 | -603.0 | -633.6 | |
| 0.00 | 5.22 | 0.00 | 2.97 | 4.77 | 160.55 | 29.45 | 277.53 | 0.4962 | -757.0 | -538.2 | |
| 1.80 | 29.58 | 1.02 | 16.82 | 3.59 | 160.43 | 29.33 | 275.16 | 0.4929 | 644.0 | 125.2 | |
| 7.87 | -18.00 | 4.46 | -18.00 | 3.50 | 160.16 | 29.05 | 275.02 | 0.4886 | 866.8 | 999999 | |
| 2.22 | 15.99 | 1.26 | 9.02 | 4.78 | 159.73 | 28.63 | 277.73 | 0.4839 | 798.2 | -126.0 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 4.31 | 159.61 | 28.51 | 276.77 | 0.4813 | 755.0 | 587.2 | |
| 3.93 | 5.73 | 2.21 | 3.23 | 2.95 | 159.50 | 28.39 | 273.95 | 0.4780 | 992.4 | 727.1 | |
| 1.62 | 7.52 | 0.92 | 4.25 | 5.58 | 159.57 | 28.47 | 279.42 | 0.4829 | -959.4 | -781.1 | |
| 1.11 | -20.00 | 0.63 | -20.00 | 4.99 | 159.34 | 28.24 | 278.26 | 0.4782 | -986.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 5.50 | 159.23 | 28.13 | 279.34 | 0.4775 | -941.0 | -753.0 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 5.73 | 159.21 | 28.11 | 279.84 | 0.4777 | -874.0 | -760.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 4.64 | 158.52 | 27.41 | 277.72 | 0.4650 | -933.0 | -698.9 | |
| 0.34 | 1.62 | 0.19 | 0.91 | 3.19 | 158.36 | 27.26 | 274.62 | 0.4607 | 916.5 | 752.1 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 4.95 | 157.83 | 26.73 | 278.55 | 0.4550 | 423.0 | 299.7 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 5.87 | 157.88 | 26.77 | 280.54 | 0.4577 | 544.0 | 405.6 | |
| 0.00 | 2.05 | 0.00 | 1.14 | 5.72 | 157.73 | 26.63 | 280.27 | 0.4552 | 446.0 | 297.1 | |
| 0.51 | 4.45 | 0.28 | 2.46 | 2.94 | 157.59 | 26.49 | 274.15 | 0.4485 | 880.0 | 669.2 | |
| 0.00 | 3.51 | 0.00 | 1.94 | 4.74 | 157.62 | 26.52 | 278.16 | 0.4514 | 643.0 | 436.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 5.10 | 157.64 | 26.53 | 278.94 | 0.4523 | -739.0 | -532.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 4.21 | 157.60 | 26.50 | 276.98 | 0.4502 | 283.0 | 205.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 6.26 | 157.63 | 26.53 | 281.47 | 0.4549 | 508.0 | 414.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 3.26 | 157.44 | 26.33 | 274.90 | 0.4464 | 774.0 | 662.3 | |
| 0.00 | 2.14 | 0.00 | 1.18 | 3.97 | 157.43 | 26.32 | 276.49 | 0.4471 | 794.0 | 529.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 3.74 | 157.38 | 26.28 | 275.97 | 0.4461 | 687.0 | 500.5 | |
| 0.00 | 4.19 | 0.00 | 2.32 | 5.90 | 157.44 | 26.34 | 280.76 | 0.4512 | 910.0 | 587.4 | |
| 2.48 | 13.94 | 1.37 | 7.70 | 4.42 | 157.31 | 26.21 | 277.52 | 0.4460 | 816.8 | 171.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 3.18 | 157.20 | 26.10 | 274.74 | 0.4426 | 670.0 | 566.3 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 5.96 | 157.18 | 26.08 | 280.99 | 0.4473 | 796.0 | 561.9 | |
| 5.47 | 25.82 | 3.01 | 14.20 | 3.33 | 156.97 | 25.87 | 275.12 | 0.4392 | 1080.2 | 841.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 5.19 | 156.85 | 25.74 | 279.39 | 0.4403 | 663.0 | 575.6 | |
| 1.54 | 24.80 | 0.85 | 13.66 | 5.76 | 156.84 | 25.74 | 280.66 | 0.4415 | 745.0 | 565.0 | |
| 1.88 | -46.00 | 1.04 | -46.00 | 5.85 | 156.71 | 25.61 | 280.91 | 0.4398 | 872.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 3.78 | 156.63 | 25.52 | 276.21 | 0.4343 | 825.0 | 747.9 | |
| 2.82 | -44.00 | 1.55 | -44.00 | 3.27 | 156.55 | 25.44 | 275.06 | 0.4324 | 1116.7 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 5.32 | 156.59 | 25.49 | 279.75 | 0.4366 | 572.0 | 559.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 3.33 | 156.32 | 25.21 | 275.24 | 0.4289 | 904.0 | 802.9 | |
| 12.23 | 29.41 | 6.71 | 16.13 | 5.59 | 156.27 | 25.17 | 280.47 | 0.4323 | 1075.6 | 769.1 | |
| 1.03 | -52.00 | 0.56 | -52.00 | 5.91 | 156.26 | 25.15 | 281.23 | 0.4329 | 822.7 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 4.79 | 156.20 | 25.10 | 278.65 | 0.4294 | 927.0 | 733.0 | |
| 5.30 | -52.00 | 2.90 | -52.00 | 5.44 | 156.04 | 24.93 | 280.22 | 0.4283 | 1187.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 3.72 | 155.97 | 24.87 | 276.22 | 0.4239 | 733.0 | 592.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 3.96 | 155.52 | 24.42 | 276.90 | 0.4172 | 753.0 | 615.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 4.20 | 155.50 | 24.39 | 277.47 | 0.4172 | 897.0 | 741.6 | |
| 2.14 | 57.63 | 1.17 | 31.35 | 5.74 | 155.49 | 24.39 | 281.13 | 0.4206 | 1087.6 | 606.5 | |
| 16.93 | -59.00 | 9.20 | -59.00 | 5.39 | 155.05 | 23.95 | 280.47 | 0.4128 | 1250.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 6.44 | 154.23 | 23.12 | 283.37 | 0.4028 | -664.0 | -487.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
