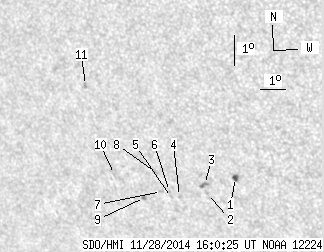

SDO HMI 2014-11-28 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 18.82 | 1.34 | 12.69 | -23.26 | 95.15 | -35.95 | 127.31 | 0.6804 | 178.2 | 80.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 3.42 | 1.34 | 2.24 | -23.30 | 97.51 | -33.59 | 129.01 | 0.6563 | 824.8 | 655.3 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -23.84 | 96.25 | -34.85 | 128.78 | 0.6728 | 504.0 | 372.1 | |
| 0.00 | 3.42 | 0.00 | 2.28 | -23.54 | 96.23 | -34.88 | 128.39 | 0.6711 | 921.0 | 702.3 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -23.95 | 95.10 | -36.00 | 128.12 | 0.6852 | 661.0 | 544.2 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -23.99 | 94.77 | -36.33 | 127.94 | 0.6887 | 441.0 | 376.8 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -23.79 | 94.75 | -36.35 | 127.68 | 0.6876 | 561.0 | 452.7 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -23.80 | 94.43 | -36.67 | 127.47 | 0.6909 | 419.0 | 351.6 | |
| 0.00 | 2.65 | 0.00 | 1.80 | -23.18 | 94.39 | -36.71 | 126.67 | 0.6875 | -694.0 | -513.6 | |
| 0.00 | 1.97 | 0.00 | 1.36 | -24.00 | 93.67 | -37.43 | 127.24 | 0.6998 | -761.0 | -649.4 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -23.27 | 92.69 | -38.41 | 125.70 | 0.7052 | -435.0 | -572.3 | |
| 0.00 | 1.88 | 0.00 | 1.29 | -20.41 | 92.43 | -38.67 | 121.87 | 0.6920 | -701.0 | -662.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
