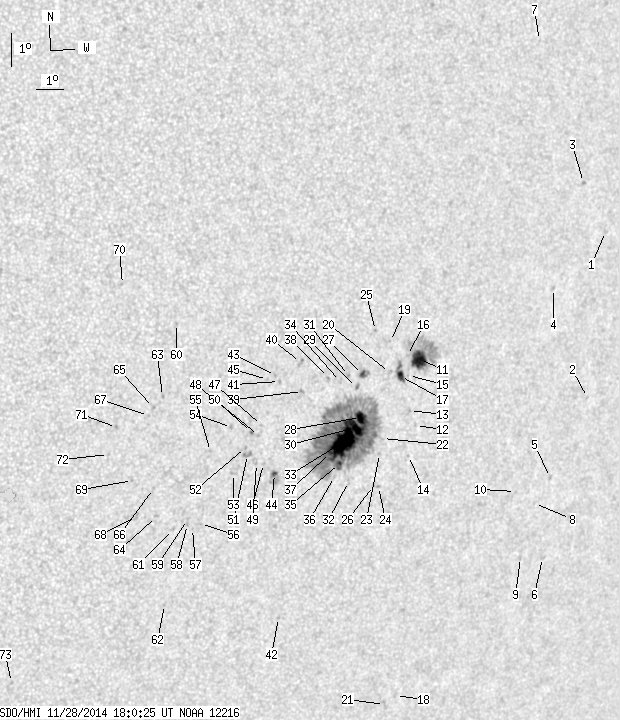

SDO HMI 2014-11-28 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.17 | 539.88 | 56.16 | 339.05 | -13.79 | 165.12 | 35.12 | 245.38 | 0.6168 | 426.0 | 313.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.08 | -7.96 | 174.15 | 44.15 | 257.47 | 0.7091 | 171.0 | 284.4 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -12.97 | 174.29 | 44.29 | 250.64 | 0.7237 | 482.0 | 410.1 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -6.47 | 173.06 | 43.07 | 259.32 | 0.6928 | 533.0 | 436.5 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -9.64 | 172.25 | 42.25 | 254.59 | 0.6900 | 645.0 | 541.8 | |
| 0.00 | 1.80 | 0.00 | 1.28 | -15.41 | 173.31 | 43.31 | 247.02 | 0.7207 | 671.0 | 548.4 | |
| 0.00 | 1.54 | 0.00 | 1.12 | -17.90 | 173.68 | 43.68 | 243.92 | 0.7341 | 467.0 | 418.5 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -2.22 | 171.01 | 41.01 | 265.24 | 0.6604 | 368.0 | 438.7 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -16.20 | 172.85 | 42.85 | 245.78 | 0.7185 | 614.0 | 458.4 | |
| 0.00 | 1.88 | 0.00 | 1.35 | -17.88 | 172.73 | 42.73 | 243.52 | 0.7239 | 300.0 | 456.2 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -15.82 | 171.95 | 41.95 | 245.91 | 0.7069 | 551.0 | 524.2 | |
| 18.12 | 62.41 | 11.59 | 39.95 | -11.71 | 167.31 | 37.31 | 249.72 | 0.6351 | 902.1 | 185.1 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -13.72 | 167.50 | 37.50 | 246.81 | 0.6458 | 569.0 | 423.8 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -13.26 | 167.19 | 37.19 | 247.34 | 0.6399 | 658.0 | 616.2 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -14.64 | 167.41 | 37.41 | 245.42 | 0.6487 | -567.0 | -456.8 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -12.19 | 166.97 | 36.97 | 248.84 | 0.6326 | 404.0 | 298.8 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -11.58 | 166.83 | 36.84 | 249.71 | 0.6285 | 557.0 | 555.4 | |
| 4.96 | 11.37 | 3.15 | 7.22 | -12.21 | 166.67 | 36.67 | 248.66 | 0.6290 | 894.3 | 755.3 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -22.20 | 168.87 | 38.87 | 235.94 | 0.7038 | 493.0 | 400.3 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -11.14 | 166.13 | 36.13 | 250.05 | 0.6177 | 727.0 | 581.5 | |
| 0.00 | 2.31 | 0.00 | 1.46 | -12.09 | 166.23 | 36.24 | 248.65 | 0.6229 | 342.0 | 375.7 | |
| 0.00 | 3.25 | 0.00 | 2.25 | -22.48 | 168.51 | 38.52 | 235.36 | 0.7017 | 715.0 | 549.0 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -14.10 | 166.31 | 36.31 | 245.64 | 0.6328 | -141.0 | -117.3 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -14.56 | 166.28 | 36.29 | 244.94 | 0.6346 | 501.0 | 365.6 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -15.58 | 166.45 | 36.45 | 243.54 | 0.6416 | -659.0 | -558.7 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -10.80 | 165.52 | 35.53 | 250.31 | 0.6085 | -575.0 | -454.0 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -15.55 | 166.25 | 36.25 | 243.48 | 0.6390 | -661.0 | -529.8 | |
| 2.39 | 6.24 | 1.49 | 3.90 | -12.13 | 165.23 | 35.23 | 248.08 | 0.6103 | 844.5 | 610.4 | |
| 8.55 | 361.80 | 5.37 | 226.66 | -13.44 | 165.37 | 35.37 | 246.13 | 0.6180 | 936.7 | 452.8 | |
| 0.34 | 2.14 | 0.21 | 1.33 | -12.53 | 165.07 | 35.07 | 247.38 | 0.6099 | 756.0 | 641.2 | |
| 11.80 | -28.00 | 7.41 | -28.00 | -13.75 | 165.23 | 35.24 | 245.59 | 0.6177 | 1019.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -12.16 | 164.72 | 34.72 | 247.78 | 0.6037 | 814.0 | 674.1 | |
| 0.00 | 2.14 | 0.00 | 1.36 | -15.41 | 165.28 | 35.28 | 243.12 | 0.6265 | 535.0 | 469.6 | |
| 39.67 | -28.00 | 24.87 | -28.00 | -14.17 | 164.86 | 34.86 | 244.74 | 0.6151 | 1326.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.06 | -12.33 | 164.45 | 34.45 | 247.36 | 0.6011 | 530.0 | 510.0 | |
| 1.71 | -28.00 | 1.07 | -28.00 | -14.85 | 164.83 | 34.83 | 243.70 | 0.6182 | 796.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -15.25 | 164.72 | 34.72 | 243.03 | 0.6189 | 373.0 | 463.5 | |
| 0.26 | -28.00 | 0.16 | -28.00 | -14.50 | 164.43 | 34.44 | 243.98 | 0.6115 | 1518.7 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -12.21 | 163.99 | 33.99 | 247.31 | 0.5945 | 678.0 | 555.4 | |
| 0.00 | 1.97 | 0.00 | 1.20 | -12.62 | 163.10 | 33.11 | 246.15 | 0.5850 | 681.0 | 568.0 | |
| 0.00 | 3.33 | 0.00 | 2.02 | -11.74 | 162.91 | 32.91 | 247.47 | 0.5782 | -466.0 | -462.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -12.31 | 162.23 | 32.23 | 246.14 | 0.5720 | -580.0 | -474.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -19.63 | 163.55 | 33.55 | 235.90 | 0.6309 | -597.0 | -570.9 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -12.12 | 162.06 | 32.06 | 246.34 | 0.5689 | -748.0 | -611.1 | |
| 1.37 | 10.09 | 0.84 | 6.19 | -15.12 | 162.49 | 32.49 | 241.80 | 0.5906 | -756.8 | -111.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -12.24 | 161.79 | 31.79 | 245.98 | 0.5659 | -766.0 | -641.2 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -14.81 | 162.03 | 32.04 | 241.99 | 0.5831 | -217.0 | -224.3 | |
| 0.00 | 0.68 | 0.00 | 0.41 | -13.64 | 161.78 | 31.78 | 243.68 | 0.5732 | -789.0 | -663.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -13.95 | 161.72 | 31.72 | 243.14 | 0.5741 | -592.0 | -456.9 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -14.81 | 161.78 | 31.78 | 241.82 | 0.5799 | -462.0 | -418.6 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -13.85 | 161.45 | 31.45 | 243.12 | 0.5702 | -813.0 | -733.6 | |
| 0.00 | 3.85 | 0.00 | 2.32 | -14.53 | 161.41 | 31.41 | 242.01 | 0.5736 | -680.0 | -673.4 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -14.31 | 161.31 | 31.31 | 242.28 | 0.5710 | -711.0 | -637.2 | |
| 0.00 | 2.22 | 0.00 | 1.34 | -15.10 | 161.00 | 31.00 | 240.80 | 0.5719 | -715.0 | -565.0 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -13.69 | 160.71 | 30.72 | 242.88 | 0.5598 | -614.0 | -519.7 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -14.42 | 160.08 | 30.08 | 241.23 | 0.5560 | -831.0 | -708.2 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -16.64 | 160.08 | 30.08 | 237.69 | 0.5704 | -713.0 | -635.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -16.79 | 159.82 | 29.82 | 237.24 | 0.5683 | -390.0 | -398.9 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -16.66 | 159.62 | 29.62 | 237.28 | 0.5650 | -776.0 | -602.6 | |
| 0.00 | 1.37 | 0.00 | 0.82 | -16.51 | 159.59 | 29.60 | 237.50 | 0.5636 | -700.0 | -563.9 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -10.50 | 158.41 | 28.42 | 246.81 | 0.5111 | -810.0 | -689.3 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -16.81 | 159.11 | 29.11 | 236.63 | 0.5599 | -725.0 | -581.2 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -19.16 | 159.25 | 29.25 | 233.18 | 0.5788 | -505.0 | -440.0 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -12.71 | 158.18 | 28.18 | 242.66 | 0.5206 | -662.0 | -662.2 | |
| 0.00 | 2.14 | 0.00 | 1.26 | -16.40 | 158.48 | 28.48 | 236.74 | 0.5493 | -666.0 | -543.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -13.04 | 157.91 | 27.91 | 241.87 | 0.5192 | -847.0 | -702.6 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -15.53 | 158.24 | 28.24 | 237.94 | 0.5402 | -688.0 | -586.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -13.29 | 157.76 | 27.77 | 241.33 | 0.5188 | -783.0 | -682.5 | |
| 0.00 | 2.99 | 0.00 | 1.76 | -16.39 | 157.78 | 27.78 | 236.14 | 0.5407 | -803.0 | -633.8 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -15.28 | 157.48 | 27.48 | 237.69 | 0.5287 | -798.0 | -589.5 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -9.30 | 156.48 | 26.48 | 247.72 | 0.4775 | -658.0 | -471.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -13.64 | 156.71 | 26.71 | 239.82 | 0.5074 | -794.0 | -647.6 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -14.47 | 156.54 | 26.54 | 238.23 | 0.5111 | -695.0 | -509.6 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -21.59 | 154.29 | 24.29 | 224.77 | 0.5454 | -571.0 | -505.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
