SDO HMI 2014-11-28 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 220.14 | 946.00 | 171.18 | 738.64 | -19.41 | 83.04 | -46.96 | 116.76 | 0.7719 | 250.6 | 63.2 | |
|
previous
or next observation for the same group /

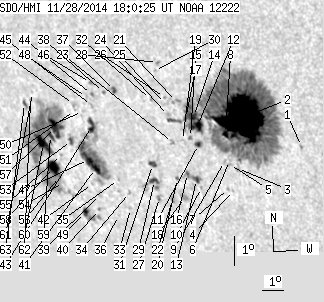

back to the solar disc SDO HMI 2014-11-28 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.84 | -19.74 | 88.98 | -41.02 | 119.72 | 0.7137 | 694.0 | 652.4 | |
| 119.01 | 551.43 | 86.41 | 401.90 | -18.86 | 86.76 | -43.24 | 117.52 | 0.7333 | 1114.4 | 277.6 | |
| 0.00 | 2.82 | 0.00 | 2.10 | -20.48 | 85.99 | -44.01 | 119.22 | 0.7481 | 356.0 | 304.8 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -21.19 | 85.54 | -44.46 | 119.90 | 0.7556 | 328.0 | 314.4 | |
| 0.00 | 1.71 | 0.00 | 1.28 | -20.36 | 85.68 | -44.32 | 118.93 | 0.7507 | 80.0 | -43.9 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -20.23 | 85.72 | -44.27 | 118.79 | 0.7497 | -53.0 | -94.7 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -21.13 | 85.34 | -44.66 | 119.73 | 0.7573 | 527.0 | 442.1 | |
| 3.59 | -2.00 | 2.65 | -2.00 | -19.38 | 85.85 | -44.15 | 117.77 | 0.7449 | 279.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.09 | -20.27 | 85.49 | -44.51 | 118.73 | 0.7523 | -468.0 | -438.1 | |
| 0.00 | 1.20 | 0.00 | 0.92 | -21.12 | 84.13 | -45.87 | 119.18 | 0.7692 | -515.0 | -467.9 | |
| 2.31 | 3.85 | 1.75 | 2.92 | -19.74 | 84.52 | -45.48 | 117.66 | 0.7600 | -691.9 | -436.3 | |
| 8.72 | -2.00 | 6.57 | -2.00 | -19.14 | 84.69 | -45.30 | 116.98 | 0.7559 | 638.5 | 999999 | |
| 2.05 | 9.58 | 1.58 | 7.41 | -20.86 | 84.00 | -46.00 | 118.82 | 0.7695 | -445.8 | 170.5 | |
| 3.59 | -2.00 | 2.70 | -2.00 | -18.86 | 84.61 | -45.38 | 116.59 | 0.7556 | 551.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.50 | -19.53 | 84.24 | -45.76 | 117.27 | 0.7620 | 486.0 | 317.5 | |
| 0.60 | -13.00 | 0.46 | -13.00 | -20.68 | 83.66 | -46.34 | 118.45 | 0.7721 | 738.3 | 999999 | |
| 1.03 | -2.00 | 0.78 | -2.00 | -18.93 | 84.23 | -45.77 | 116.52 | 0.7598 | 452.9 | 999999 | |
| 0.00 | 4.62 | 0.00 | 3.63 | -21.45 | 83.20 | -46.79 | 119.20 | 0.7794 | -395.0 | -426.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -19.63 | 83.84 | -46.16 | 117.23 | 0.7664 | 348.0 | 272.7 | |
| 0.43 | 1.37 | 0.34 | 1.07 | -20.85 | 83.13 | -46.87 | 118.43 | 0.7779 | 559.2 | 446.7 | |
| 0.00 | 3.42 | 0.00 | 2.60 | -18.40 | 84.01 | -45.99 | 115.77 | 0.7601 | -531.0 | -372.4 | |
| 0.00 | 2.74 | 0.00 | 2.18 | -21.53 | 82.61 | -47.39 | 119.04 | 0.7854 | -756.0 | -595.8 | |
| 0.00 | 2.39 | 0.00 | 1.86 | -19.70 | 83.35 | -46.64 | 117.12 | 0.7714 | 523.0 | 359.2 | |
| 0.00 | 2.74 | 0.00 | 2.10 | -18.85 | 83.49 | -46.51 | 116.12 | 0.7670 | -268.0 | -148.0 | |
| 0.00 | 2.82 | 0.00 | 2.16 | -18.47 | 83.49 | -46.51 | 115.65 | 0.7657 | -265.0 | -289.5 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -18.28 | 83.51 | -46.49 | 115.43 | 0.7648 | -619.0 | -535.8 | |
| 0.00 | 3.16 | 0.00 | 2.55 | -21.47 | 82.02 | -47.98 | 118.74 | 0.7908 | 453.0 | 375.8 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -17.19 | 83.57 | -46.43 | 114.07 | 0.7605 | 590.0 | 531.5 | |
| 3.08 | 12.48 | 2.47 | 10.05 | -20.93 | 82.01 | -47.98 | 118.09 | 0.7888 | 603.5 | 242.9 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -17.44 | 83.35 | -46.65 | 114.31 | 0.7636 | 444.0 | 314.3 | |
| 2.56 | 4.10 | 2.04 | 3.27 | -20.42 | 82.14 | -47.86 | 117.52 | 0.7859 | 429.8 | 233.4 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -18.35 | 82.84 | -47.15 | 115.26 | 0.7718 | -590.0 | -563.3 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -21.85 | 80.44 | -49.56 | 118.58 | 0.8067 | 37.0 | 68.6 | |
| 0.00 | 1.28 | 0.00 | 1.06 | -21.33 | 80.63 | -49.37 | 118.04 | 0.8032 | 450.0 | 287.7 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -20.93 | 80.28 | -49.72 | 117.43 | 0.8051 | -518.0 | -497.9 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -22.09 | 79.72 | -50.28 | 118.59 | 0.8139 | -559.0 | -508.0 | |
| 1.45 | 2.82 | 1.16 | 2.25 | -18.10 | 81.26 | -48.74 | 114.38 | 0.7868 | -810.6 | -690.6 | |
| 0.00 | 1.20 | 0.00 | 0.97 | -18.17 | 80.71 | -49.29 | 114.27 | 0.7924 | -723.0 | -612.4 | |
| 0.00 | 2.99 | 0.00 | 2.56 | -21.42 | 79.14 | -50.86 | 117.61 | 0.8170 | -353.0 | -258.6 | |
| 0.00 | 1.11 | 0.00 | 0.96 | -21.91 | 78.85 | -51.15 | 118.07 | 0.8211 | -712.0 | -570.6 | |
| 7.52 | 78.31 | 6.36 | 65.90 | -20.59 | 79.29 | -50.71 | 116.68 | 0.8131 | -867.6 | -619.6 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -21.08 | 78.91 | -51.09 | 117.12 | 0.8180 | -525.0 | -537.8 | |
| 5.98 | -41.00 | 4.97 | -41.00 | -19.25 | 79.68 | -50.32 | 115.23 | 0.8054 | -815.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.05 | -18.24 | 80.10 | -49.90 | 114.16 | 0.7985 | -733.0 | -624.2 | |
| 0.00 | 1.80 | 0.00 | 1.48 | -18.59 | 79.96 | -50.04 | 114.53 | 0.8008 | -812.0 | -697.3 | |
| 0.00 | 1.54 | 0.00 | 1.25 | -17.86 | 80.20 | -49.80 | 113.73 | 0.7964 | -674.0 | -571.2 | |
| 8.38 | -41.00 | 7.11 | -41.00 | -20.31 | 79.07 | -50.93 | 116.27 | 0.8143 | -910.4 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.69 | -18.34 | 79.82 | -50.18 | 114.18 | 0.8015 | -551.0 | -508.1 | |
| 3.42 | 12.40 | 3.00 | 10.85 | -22.02 | 78.07 | -51.93 | 117.93 | 0.8282 | -565.9 | -471.9 | |
| 0.00 | 0.68 | 0.00 | 0.57 | -18.79 | 79.44 | -50.56 | 114.59 | 0.8064 | -584.0 | -476.2 | |
| 0.00 | 0.34 | 0.00 | 0.29 | -18.76 | 79.05 | -50.95 | 114.44 | 0.8099 | -415.0 | -357.8 | |
| 0.00 | 2.48 | 0.00 | 2.08 | -18.57 | 79.08 | -50.92 | 114.22 | 0.8091 | -433.0 | -371.2 | |
| 1.88 | 4.79 | 1.61 | 4.10 | -19.72 | 78.48 | -51.52 | 115.38 | 0.8179 | -714.5 | -552.0 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -21.07 | 77.41 | -52.59 | 116.61 | 0.8312 | -384.0 | -395.3 | |
| 0.00 | 1.11 | 0.00 | 0.97 | -20.17 | 77.75 | -52.25 | 115.68 | 0.8257 | -501.0 | -557.4 | |
| 0.26 | 200.57 | 0.23 | 177.51 | -20.88 | 77.30 | -52.70 | 116.36 | 0.8317 | -542.7 | -52.7 | |
| 13.85 | -56.00 | 12.00 | -56.00 | -19.32 | 77.84 | -52.16 | 114.71 | 0.8225 | -817.6 | 999999 | |
| 11.71 | -56.00 | 10.41 | -56.00 | -20.60 | 77.13 | -52.87 | 115.98 | 0.8324 | -574.1 | 999999 | |
| 2.99 | -56.00 | 2.62 | -56.00 | -19.58 | 77.46 | -52.53 | 114.90 | 0.8266 | -571.3 | 999999 | |
| 14.62 | -56.00 | 12.97 | -56.00 | -19.84 | 76.97 | -53.02 | 115.05 | 0.8317 | -563.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.75 | -18.23 | 77.14 | -52.85 | 113.22 | 0.8260 | 294.0 | 243.7 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -18.45 | 76.94 | -53.06 | 113.42 | 0.8284 | 287.0 | 278.3 | |
| 1.11 | 3.16 | 0.99 | 2.81 | -18.58 | 76.57 | -53.43 | 113.47 | 0.8321 | 462.0 | 402.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
