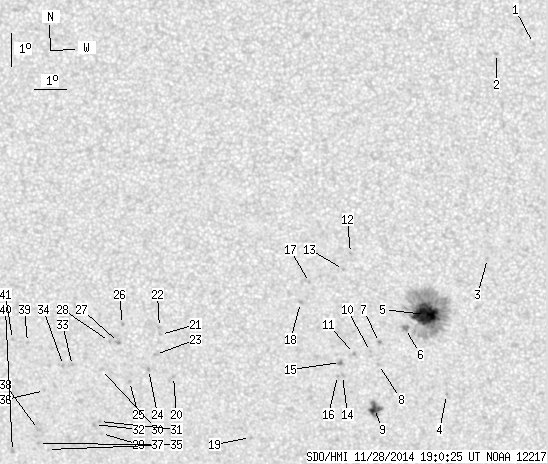

SDO HMI 2014-11-28 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.52 | 215.86 | 21.32 | 113.91 | -18.03 | 124.41 | -5.03 | 166.62 | 0.3448 | 385.3 | 311.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.73 | -9.30 | 129.46 | 0.02 | 180.09 | 0.1831 | 854.0 | 614.2 | |
| 0.00 | 1.20 | 0.00 | 0.60 | -9.60 | 128.35 | -1.09 | 174.27 | 0.1892 | 795.0 | 506.3 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -15.84 | 128.04 | -1.40 | 175.40 | 0.2954 | 839.0 | 605.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.10 | 126.71 | -2.74 | 172.97 | 0.3677 | 833.0 | 687.2 | |
| 33.60 | 150.12 | 17.61 | 78.63 | -17.58 | 126.10 | -3.34 | 170.20 | 0.3282 | 1310.0 | 450.5 | |
| 0.00 | 4.27 | 0.00 | 2.25 | -18.02 | 125.47 | -3.98 | 168.68 | 0.3373 | 864.0 | 741.1 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -18.46 | 124.65 | -4.80 | 166.73 | 0.3472 | 994.0 | 843.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -19.15 | 124.59 | -4.85 | 167.06 | 0.3584 | 742.0 | 632.9 | |
| 6.92 | 12.82 | 3.71 | 6.87 | -20.55 | 124.42 | -5.02 | 167.52 | 0.3811 | 1077.1 | 745.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.74 | 124.36 | -5.09 | 166.16 | 0.3528 | 788.0 | 624.9 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -18.81 | 123.85 | -5.59 | 164.91 | 0.3559 | 888.0 | 697.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -15.69 | 123.83 | -5.62 | 162.02 | 0.3068 | 913.0 | 617.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -16.18 | 123.60 | -5.85 | 161.86 | 0.3158 | 914.0 | 794.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -19.50 | 123.45 | -6.00 | 164.43 | 0.3685 | 930.0 | 689.8 | |
| 0.00 | 2.74 | 0.00 | 1.45 | -19.09 | 123.40 | -6.04 | 163.99 | 0.3623 | 1067.0 | 856.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -19.50 | 123.29 | -6.15 | 164.05 | 0.3692 | 466.0 | 543.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -16.59 | 122.53 | -6.92 | 159.30 | 0.3280 | 833.0 | 701.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -17.21 | 122.22 | -7.22 | 159.18 | 0.3393 | 902.0 | 753.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -21.48 | 120.42 | -9.03 | 159.25 | 0.4139 | 657.0 | 591.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.55 | 118.08 | -11.36 | 152.32 | 0.4014 | -822.0 | -678.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.22 | 117.76 | -11.68 | 149.93 | 0.3856 | -855.0 | -707.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.00 | 117.74 | -11.70 | 149.59 | 0.3827 | -993.0 | -737.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -18.85 | 117.56 | -11.89 | 150.35 | 0.3958 | -929.0 | -741.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -19.33 | 117.30 | -12.15 | 150.45 | 0.4044 | -1012.0 | -858.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -19.71 | 116.66 | -12.79 | 149.69 | 0.4147 | -753.0 | -618.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.91 | 116.57 | -12.87 | 147.05 | 0.3914 | -937.0 | -854.2 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -18.48 | 116.40 | -13.04 | 147.53 | 0.4004 | -901.0 | -756.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.45 | 116.12 | -13.33 | 146.93 | 0.4025 | -762.0 | -696.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.37 | 115.60 | -13.85 | 149.82 | 0.4453 | -683.0 | -532.1 | |
| 0.00 | 1.97 | 0.00 | 1.07 | -19.33 | 115.79 | -13.66 | 147.53 | 0.4169 | -722.0 | -552.0 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -20.99 | 115.57 | -13.88 | 149.30 | 0.4404 | -989.0 | -688.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.08 | 115.40 | -14.05 | 149.11 | 0.4431 | -764.0 | -666.3 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -19.21 | 114.86 | -14.59 | 145.67 | 0.4234 | -937.0 | -831.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.21 | 114.57 | -14.88 | 145.15 | 0.4261 | -942.0 | -792.0 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -21.89 | 113.76 | -15.68 | 147.36 | 0.4669 | -637.0 | -666.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -20.01 | 113.87 | -15.57 | 145.06 | 0.4423 | -874.0 | -717.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.70 | 113.49 | -15.96 | 146.67 | 0.4668 | -723.0 | -582.9 | |
| 0.00 | 2.31 | 0.00 | 1.29 | -21.25 | 113.54 | -15.90 | 146.18 | 0.4608 | -616.0 | -564.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.49 | 113.47 | -15.98 | 142.18 | 0.4275 | -847.0 | -636.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -21.96 | 112.59 | -16.85 | 145.59 | 0.4778 | -690.0 | -571.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -18.40 | 112.99 | -16.45 | 141.24 | 0.4311 | -712.0 | -621.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
