SDO HMI 2014-11-28 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.48 | 730.64 | 100.79 | 425.74 | 4.15 | 160.84 | 31.39 | 276.16 | 0.5241 | -88.9 | -107.6 | |
|
previous
or next observation for the same group /

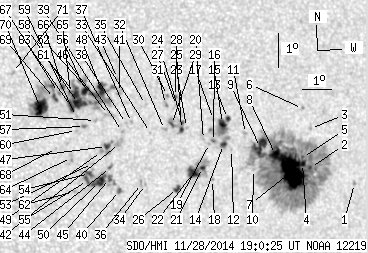

back to the solar disc SDO HMI 2014-11-28 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.79 | 3.05 | 165.82 | 36.37 | 273.51 | 0.5956 | 584.0 | 439.4 | |
| 1.37 | 402.06 | 0.83 | 240.54 | 3.54 | 164.23 | 34.79 | 274.48 | 0.5734 | -577.9 | -377.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 4.70 | 164.29 | 34.85 | 276.48 | 0.5754 | -591.0 | -516.8 | |
| 2.56 | -2.00 | 1.54 | -2.00 | 3.67 | 163.95 | 34.51 | 274.72 | 0.5695 | -752.8 | 999999 | |
| 0.68 | -2.00 | 0.41 | -2.00 | 3.84 | 163.96 | 34.51 | 275.03 | 0.5697 | -507.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 5.30 | 164.04 | 34.60 | 277.56 | 0.5726 | 518.0 | 487.5 | |
| 52.15 | -2.00 | 31.21 | -2.00 | 3.43 | 163.55 | 34.10 | 274.35 | 0.5635 | -1307.8 | 999999 | |
| 7.18 | -2.00 | 4.27 | -2.00 | 3.95 | 163.00 | 33.55 | 275.32 | 0.5559 | -1175.8 | 999999 | |
| 15.13 | -2.00 | 8.95 | -2.00 | 4.16 | 162.47 | 33.03 | 275.77 | 0.5486 | -1027.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 3.51 | 162.20 | 32.75 | 274.62 | 0.5439 | -460.0 | -476.9 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 4.58 | 161.97 | 32.52 | 276.62 | 0.5416 | -687.0 | -585.0 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 4.11 | 161.45 | 32.01 | 275.82 | 0.5335 | -722.0 | -577.0 | |
| 1.62 | 29.92 | 0.95 | 17.45 | 5.03 | 161.36 | 31.91 | 277.56 | 0.5333 | -719.4 | -200.9 | |
| 2.14 | -13.00 | 1.25 | -13.00 | 4.26 | 161.18 | 31.73 | 276.15 | 0.5297 | -899.4 | 999999 | |
| 4.79 | -13.00 | 2.79 | -13.00 | 4.89 | 161.17 | 31.73 | 277.32 | 0.5304 | -887.3 | 999999 | |
| 0.43 | 1.54 | 0.25 | 0.89 | 4.36 | 160.83 | 31.39 | 276.38 | 0.5247 | -887.0 | -724.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 5.01 | 160.87 | 31.42 | 277.61 | 0.5261 | -823.0 | -581.5 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 3.23 | 160.75 | 31.31 | 274.24 | 0.5223 | 461.0 | 392.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 4.30 | 160.69 | 31.25 | 276.29 | 0.5225 | -924.0 | -663.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 4.42 | 160.49 | 31.04 | 276.56 | 0.5196 | -276.0 | -248.0 | |
| 1.45 | 25.31 | 0.84 | 14.61 | 3.59 | 160.42 | 30.97 | 274.97 | 0.5177 | 490.7 | 237.2 | |
| 7.78 | -21.00 | 4.48 | -21.00 | 3.45 | 160.10 | 30.66 | 274.73 | 0.5128 | 982.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 4.78 | 159.92 | 30.47 | 277.36 | 0.5117 | 436.0 | 273.1 | |
| 0.85 | 13.59 | 0.49 | 7.80 | 4.93 | 159.79 | 30.34 | 277.68 | 0.5100 | 741.3 | 174.8 | |
| 1.62 | -24.00 | 0.93 | -24.00 | 4.72 | 159.74 | 30.30 | 277.29 | 0.5090 | 813.5 | 999999 | |
| 2.22 | 4.10 | 1.27 | 2.35 | 2.98 | 159.54 | 30.09 | 273.87 | 0.5039 | 972.2 | 781.4 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 5.44 | 159.61 | 30.17 | 278.71 | 0.5081 | -820.0 | -706.7 | |
| 0.60 | 1.62 | 0.34 | 0.93 | 5.71 | 159.59 | 30.15 | 279.24 | 0.5084 | -831.6 | -746.6 | |
| 1.37 | -24.00 | 0.78 | -24.00 | 4.88 | 159.41 | 29.96 | 277.65 | 0.5042 | -816.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 5.74 | 159.32 | 29.87 | 279.38 | 0.5044 | -820.0 | -769.2 | |
| 0.00 | 2.31 | 0.00 | 1.32 | 5.47 | 159.23 | 29.79 | 278.87 | 0.5026 | -781.0 | -780.9 | |
| 0.00 | 2.39 | 0.00 | 1.37 | 4.73 | 159.16 | 29.72 | 277.41 | 0.5002 | -830.0 | -632.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 4.65 | 158.68 | 29.23 | 277.34 | 0.4928 | -742.0 | -526.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 3.11 | 158.45 | 29.00 | 274.24 | 0.4875 | 595.0 | 503.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 5.48 | 158.55 | 29.11 | 279.06 | 0.4924 | -759.0 | -604.2 | |
| 0.00 | 2.82 | 0.00 | 1.60 | 3.14 | 158.31 | 28.87 | 274.32 | 0.4855 | 943.0 | 632.3 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 4.95 | 158.05 | 28.60 | 278.10 | 0.4838 | -764.0 | -680.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 4.92 | 157.88 | 28.43 | 278.09 | 0.4811 | -687.0 | -623.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 4.69 | 157.73 | 28.29 | 277.63 | 0.4785 | 587.0 | 504.3 | |
| 1.03 | 3.33 | 0.58 | 1.87 | 2.94 | 157.57 | 28.12 | 273.99 | 0.4738 | 882.8 | 707.0 | |
| 0.00 | 3.25 | 0.00 | 1.83 | 5.85 | 157.69 | 28.25 | 280.05 | 0.4801 | 584.0 | 461.6 | |
| 0.00 | 5.39 | 0.00 | 3.03 | 4.33 | 157.62 | 28.17 | 276.91 | 0.4762 | -165.0 | -204.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 6.26 | 157.65 | 28.20 | 280.92 | 0.4804 | 561.0 | 462.9 | |
| 0.43 | 2.31 | 0.24 | 1.29 | 3.63 | 157.29 | 27.84 | 275.48 | 0.4702 | 635.4 | 454.9 | |
| 1.54 | 33.68 | 0.86 | 18.80 | 3.30 | 157.24 | 27.80 | 274.79 | 0.4691 | 783.8 | 754.0 | |
| 0.00 | 6.92 | 0.00 | 3.89 | 5.20 | 157.29 | 27.84 | 278.81 | 0.4726 | -137.0 | -127.4 | |
| 2.22 | 7.87 | 1.25 | 4.41 | 4.25 | 157.18 | 27.73 | 276.83 | 0.4693 | 867.5 | 256.0 | |
| 6.24 | 87.54 | 3.50 | 48.89 | 5.94 | 157.09 | 27.64 | 280.43 | 0.4712 | 680.8 | 458.0 | |
| 0.00 | 2.05 | 0.00 | 1.15 | 4.10 | 157.00 | 27.56 | 276.55 | 0.4664 | 853.0 | 685.0 | |
| 8.38 | -45.00 | 4.68 | -45.00 | 3.22 | 156.90 | 27.46 | 274.65 | 0.4639 | 1045.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 5.02 | 156.84 | 27.40 | 278.56 | 0.4655 | 642.0 | 557.4 | |
| 1.37 | -48.00 | 0.76 | -48.00 | 5.80 | 156.78 | 27.33 | 280.22 | 0.4662 | 747.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 3.75 | 156.69 | 27.24 | 275.85 | 0.4611 | 684.0 | 594.9 | |
| 1.97 | -45.00 | 1.09 | -45.00 | 3.46 | 156.58 | 27.13 | 275.22 | 0.4591 | 1053.4 | 999999 | |
| 2.48 | -45.00 | 1.38 | -45.00 | 3.25 | 156.51 | 27.06 | 274.78 | 0.4577 | 1139.7 | 999999 | |
| 4.36 | -48.00 | 2.43 | -48.00 | 5.92 | 156.55 | 27.11 | 280.56 | 0.4630 | 893.1 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.24 | 4.85 | 156.47 | 27.02 | 278.28 | 0.4594 | 842.0 | 734.2 | |
| 9.49 | -48.00 | 5.28 | -48.00 | 5.53 | 156.30 | 26.85 | 279.81 | 0.4582 | 1058.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 5.15 | 156.21 | 26.77 | 279.00 | 0.4561 | 703.0 | 597.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 4.73 | 156.19 | 26.75 | 278.10 | 0.4550 | 878.0 | 695.7 | |
| 6.58 | -48.00 | 3.66 | -48.00 | 5.83 | 156.21 | 26.77 | 280.48 | 0.4576 | 1018.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 2.93 | 156.06 | 26.62 | 274.13 | 0.4505 | 849.0 | 745.8 | |
| 4.45 | -48.00 | 2.47 | -48.00 | 5.45 | 156.06 | 26.62 | 279.70 | 0.4544 | 1188.0 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.66 | 3.94 | 156.00 | 26.55 | 276.38 | 0.4506 | 714.0 | 763.3 | |
| 0.77 | -48.00 | 0.43 | -48.00 | 5.86 | 156.05 | 26.60 | 280.61 | 0.4551 | 879.9 | 999999 | |
| 1.28 | 2.56 | 0.71 | 1.42 | 6.04 | 155.79 | 26.35 | 281.09 | 0.4516 | 764.2 | 611.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 5.87 | 155.65 | 26.20 | 280.76 | 0.4490 | 901.0 | 777.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 4.21 | 155.51 | 26.06 | 277.09 | 0.4435 | 851.0 | 683.3 | |
| 1.88 | 53.52 | 1.04 | 29.49 | 5.69 | 155.51 | 26.06 | 280.41 | 0.4464 | 1048.6 | 558.2 | |
| 16.07 | -69.00 | 8.85 | -69.00 | 5.43 | 155.03 | 25.59 | 279.99 | 0.4384 | 1253.9 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 6.48 | 154.17 | 24.72 | 282.72 | 0.4278 | -396.0 | -375.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
