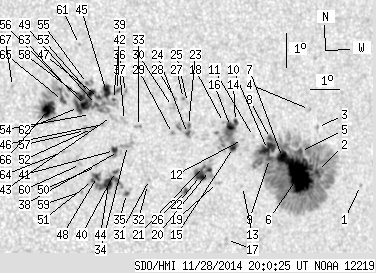

SDO HMI 2014-11-28 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.50 | 731.22 | 96.54 | 428.87 | 4.15 | 160.92 | 32.03 | 276.07 | 0.5335 | -115.2 | -94.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-28 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.74 | 3.07 | 165.82 | 36.93 | 273.51 | 0.6033 | 507.0 | 409.9 | |
| 1.71 | 407.88 | 1.04 | 245.67 | 3.50 | 164.26 | 35.36 | 274.36 | 0.5816 | -648.3 | -375.6 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 4.81 | 164.33 | 35.43 | 276.59 | 0.5838 | -605.0 | -499.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 5.34 | 164.07 | 35.18 | 277.55 | 0.5809 | 503.0 | 445.2 | |
| 2.05 | -2.00 | 1.24 | -2.00 | 4.10 | 163.67 | 34.78 | 275.46 | 0.5737 | -418.1 | 999999 | |
| 54.80 | -2.00 | 33.03 | -2.00 | 3.42 | 163.60 | 34.71 | 274.28 | 0.5722 | -1250.3 | 999999 | |
| 8.29 | -2.00 | 4.97 | -2.00 | 3.93 | 163.01 | 34.12 | 275.24 | 0.5642 | -1159.0 | 999999 | |
| 1.88 | -2.00 | 1.12 | -2.00 | 4.50 | 162.61 | 33.72 | 276.30 | 0.5590 | -299.5 | 999999 | |
| 2.39 | -2.00 | 1.42 | -2.00 | 3.91 | 162.55 | 33.65 | 275.25 | 0.5574 | -1180.6 | 999999 | |
| 12.05 | -2.00 | 7.18 | -2.00 | 4.18 | 162.49 | 33.60 | 275.74 | 0.5568 | -1084.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 4.57 | 162.01 | 33.12 | 276.51 | 0.5503 | -576.0 | -545.9 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 4.48 | 161.62 | 32.72 | 276.42 | 0.5445 | -258.0 | -212.4 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 3.09 | 161.55 | 32.66 | 273.86 | 0.5423 | -703.0 | -599.3 | |
| 1.54 | 37.96 | 0.91 | 22.26 | 5.02 | 161.40 | 32.51 | 277.44 | 0.5420 | -696.9 | -301.3 | |
| 3.16 | -14.00 | 1.86 | -14.00 | 4.25 | 161.29 | 32.39 | 276.04 | 0.5394 | -834.4 | 999999 | |
| 4.70 | -14.00 | 2.76 | -14.00 | 4.87 | 161.21 | 32.32 | 277.20 | 0.5391 | -885.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 1.53 | 160.95 | 32.06 | 270.97 | 0.5328 | -703.0 | -519.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 5.00 | 160.97 | 32.08 | 277.47 | 0.5358 | -801.0 | -674.6 | |
| 0.00 | 2.39 | 0.00 | 1.40 | 3.22 | 160.68 | 31.79 | 274.18 | 0.5295 | 468.0 | 379.0 | |
| 1.54 | 23.42 | 0.89 | 13.60 | 3.58 | 160.42 | 31.53 | 274.89 | 0.5259 | 483.2 | 265.1 | |
| 0.51 | -20.00 | 0.30 | -20.00 | 3.70 | 160.21 | 31.32 | 275.14 | 0.5230 | 620.8 | 999999 | |
| 7.44 | -20.00 | 4.31 | -20.00 | 3.44 | 160.10 | 31.21 | 274.65 | 0.5210 | 983.8 | 999999 | |
| 0.51 | 14.02 | 0.30 | 8.09 | 4.92 | 159.75 | 30.86 | 277.56 | 0.5176 | 762.7 | 231.2 | |
| 1.20 | -23.00 | 0.69 | -23.00 | 4.68 | 159.70 | 30.81 | 277.12 | 0.5166 | 943.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 5.60 | 159.75 | 30.86 | 278.88 | 0.5188 | -612.0 | -496.2 | |
| 1.20 | 3.08 | 0.69 | 1.77 | 3.00 | 159.56 | 30.67 | 273.85 | 0.5127 | 944.4 | 856.2 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 5.72 | 159.62 | 30.73 | 279.14 | 0.5171 | -867.0 | -776.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 5.73 | 159.35 | 30.45 | 279.21 | 0.5130 | -813.0 | -722.5 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 4.69 | 159.19 | 30.29 | 277.23 | 0.5088 | -786.0 | -662.1 | |
| 0.00 | 3.33 | 0.00 | 1.92 | 5.49 | 159.23 | 30.34 | 278.78 | 0.5108 | -367.0 | -619.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 3.34 | 158.34 | 29.45 | 274.66 | 0.4945 | 659.0 | 543.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 3.19 | 158.27 | 29.38 | 274.37 | 0.4933 | 869.0 | 638.6 | |
| 0.00 | 2.14 | 0.00 | 1.21 | 4.91 | 158.03 | 29.14 | 277.91 | 0.4919 | -775.0 | -719.6 | |
| 0.00 | 5.13 | 0.00 | 2.90 | 4.35 | 157.63 | 28.74 | 276.85 | 0.4849 | -152.0 | -119.7 | |
| 0.94 | 3.76 | 0.53 | 2.12 | 2.93 | 157.55 | 28.66 | 273.92 | 0.4821 | 889.5 | 679.3 | |
| 0.00 | 2.91 | 0.00 | 1.65 | 5.92 | 157.65 | 28.75 | 280.07 | 0.4880 | 429.0 | 425.7 | |
| 0.00 | 3.76 | 0.00 | 2.13 | 5.09 | 157.57 | 28.68 | 278.39 | 0.4851 | -601.0 | -451.5 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 4.18 | 157.32 | 28.43 | 276.55 | 0.4799 | 102.0 | 109.7 | |
| 1.03 | 80.96 | 0.58 | 45.43 | 5.99 | 157.38 | 28.49 | 280.27 | 0.4841 | 612.5 | 507.8 | |
| 1.20 | 36.85 | 0.67 | 20.68 | 3.59 | 157.20 | 28.31 | 275.33 | 0.4773 | 725.9 | 727.9 | |
| 2.05 | 5.56 | 1.16 | 3.13 | 4.21 | 157.19 | 28.30 | 276.64 | 0.4779 | 832.2 | 213.6 | |
| 0.51 | -39.00 | 0.29 | -39.00 | 5.72 | 157.23 | 28.34 | 279.77 | 0.4812 | 329.3 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.20 | 5.22 | 157.13 | 28.24 | 278.75 | 0.4788 | 356.0 | 260.7 | |
| 8.38 | -40.00 | 4.70 | -40.00 | 3.23 | 156.95 | 28.06 | 274.62 | 0.4731 | 1000.9 | 999999 | |
| 6.41 | -39.00 | 3.61 | -39.00 | 5.96 | 157.01 | 28.11 | 280.33 | 0.4784 | 771.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 4.98 | 156.82 | 27.93 | 278.34 | 0.4735 | 707.0 | 585.8 | |
| 0.94 | -39.00 | 0.53 | -39.00 | 5.79 | 156.73 | 27.83 | 280.05 | 0.4738 | 760.5 | 999999 | |
| 2.82 | -40.00 | 1.58 | -40.00 | 3.45 | 156.59 | 27.70 | 275.12 | 0.4678 | 1008.7 | 999999 | |
| 1.03 | -39.00 | 0.58 | -39.00 | 5.58 | 156.65 | 27.76 | 279.64 | 0.4721 | 822.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 3.74 | 156.57 | 27.67 | 275.76 | 0.4678 | 928.0 | 698.4 | |
| 1.11 | -40.00 | 0.62 | -40.00 | 3.33 | 156.42 | 27.53 | 274.90 | 0.4650 | 1147.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 4.87 | 156.48 | 27.59 | 278.19 | 0.4681 | 788.0 | 706.8 | |
| 3.51 | -39.00 | 1.96 | -39.00 | 5.91 | 156.46 | 27.57 | 280.39 | 0.4700 | 918.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 5.28 | 156.43 | 27.54 | 279.08 | 0.4682 | 492.0 | 455.7 | |
| 0.43 | 4.45 | 0.24 | 2.49 | 6.20 | 156.38 | 27.49 | 281.05 | 0.4695 | 728.8 | 591.3 | |
| 5.98 | -39.00 | 3.35 | -39.00 | 5.55 | 156.28 | 27.39 | 279.70 | 0.4664 | 1113.8 | 999999 | |
| 0.00 | 3.76 | 0.00 | 2.10 | 4.81 | 156.24 | 27.35 | 278.12 | 0.4644 | 825.0 | 730.3 | |
| 2.22 | -39.00 | 1.24 | -39.00 | 5.79 | 156.16 | 27.26 | 280.25 | 0.4651 | 1159.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 3.01 | 156.04 | 27.15 | 274.25 | 0.4589 | 616.0 | 591.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 3.81 | 156.03 | 27.14 | 275.99 | 0.4596 | 855.0 | 777.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 7.37 | 156.19 | 27.29 | 283.57 | 0.4698 | 723.0 | 580.1 | |
| 4.45 | -39.00 | 2.48 | -39.00 | 5.50 | 156.04 | 27.15 | 279.65 | 0.4627 | 1175.3 | 999999 | |
| 0.68 | 1.88 | 0.38 | 1.05 | 6.03 | 155.77 | 26.88 | 280.89 | 0.4597 | 805.6 | 690.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 4.20 | 155.48 | 26.59 | 276.96 | 0.4516 | 842.0 | 654.1 | |
| 2.22 | 59.59 | 1.24 | 32.99 | 5.71 | 155.52 | 26.63 | 280.27 | 0.4551 | 1035.4 | 555.2 | |
| 14.62 | -65.00 | 8.09 | -65.00 | 5.45 | 155.04 | 26.15 | 279.85 | 0.4472 | 1259.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 6.14 | 153.89 | 25.00 | 281.84 | 0.4311 | 727.0 | 506.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
